Inter-Tel AXXESS - Figure 3-1 Digital Phone;Single-Line Set Modular Jack Assembly Wiring (U.S.); Figure 3-2 Digital Phone;Single-Line Set Line Jack Unit Assembly Wiring (Europe); Figure

Page 3-19
Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Digital Phone/Single-Line Set Modular Jack Assembly Wiring (U.S.)
INSTALLATION
3

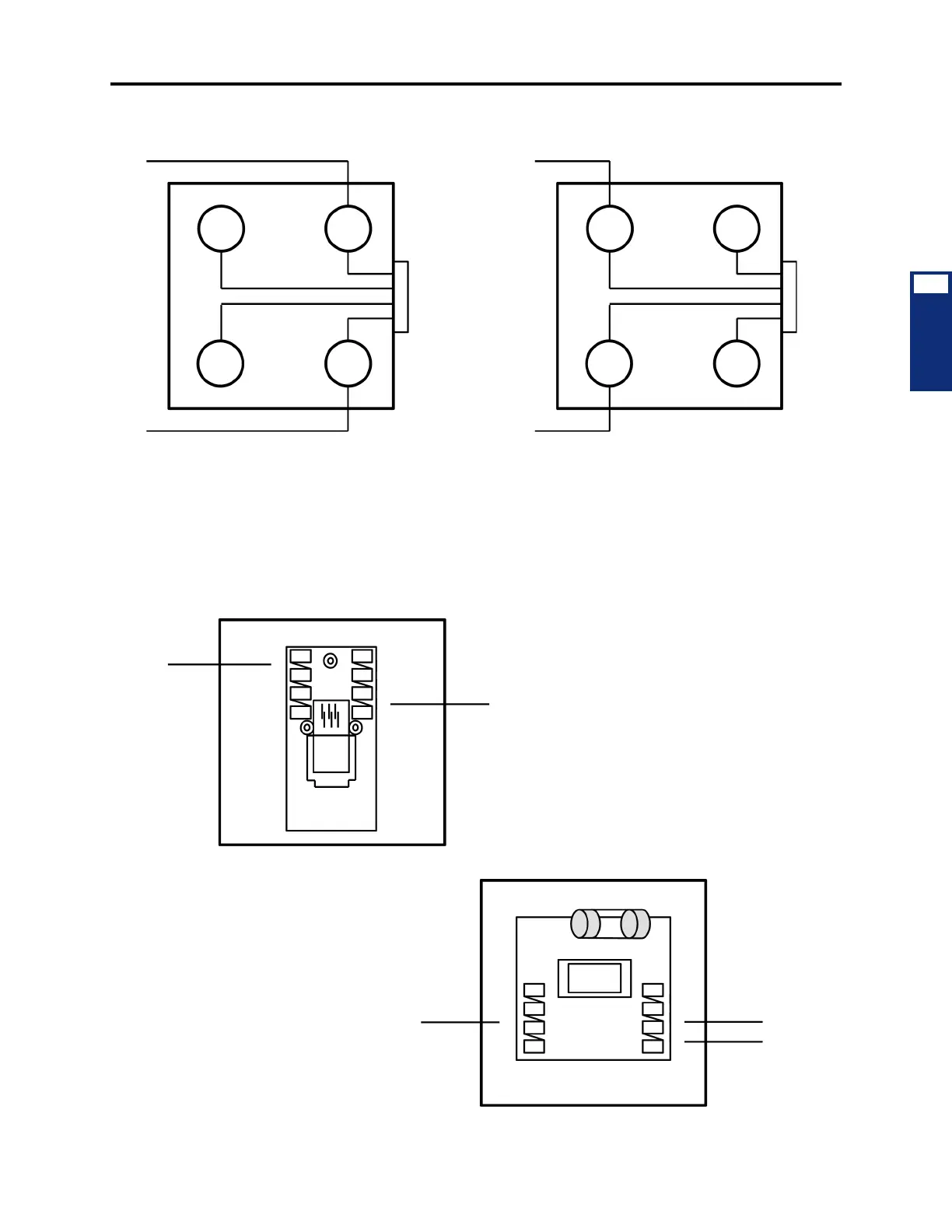

Figure 3-1. Digital Phone/Single-Line Set Modular Jack Assembly Wiring (U.S.)
Figure 3-2. Digital Phone/Single-Line Set Line Jack Unit Assembly Wiring (Europe)
RING
TIP
TIP
RING
G
Y
R
BK
G
Y
R
BK
FOR DIGITAL PHONES AND
SINGLE-LINE ADAPTERS
FOR SINGLE-LINE SETS
AND PLAYBACK DEVICES
FOR SINGLE-LINE SETS
AND PLAYBACK DEVICES
FOR DIGITAL PHONES AND
SINGLE-LINE ADAPTERS
WH./BL
BL/WH
WH./BL
BL/WH
EARTH
Not used
5
3
1
6
4
2
1
2
3
6
5
4
