Inter-Tel AXXESS - Figure 3-54 PCMA-C Card and Attached CPU020-A Card

Page 3-109
Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
PCMA-C Card and Attached CPU020-A Card
INSTALLATION
3

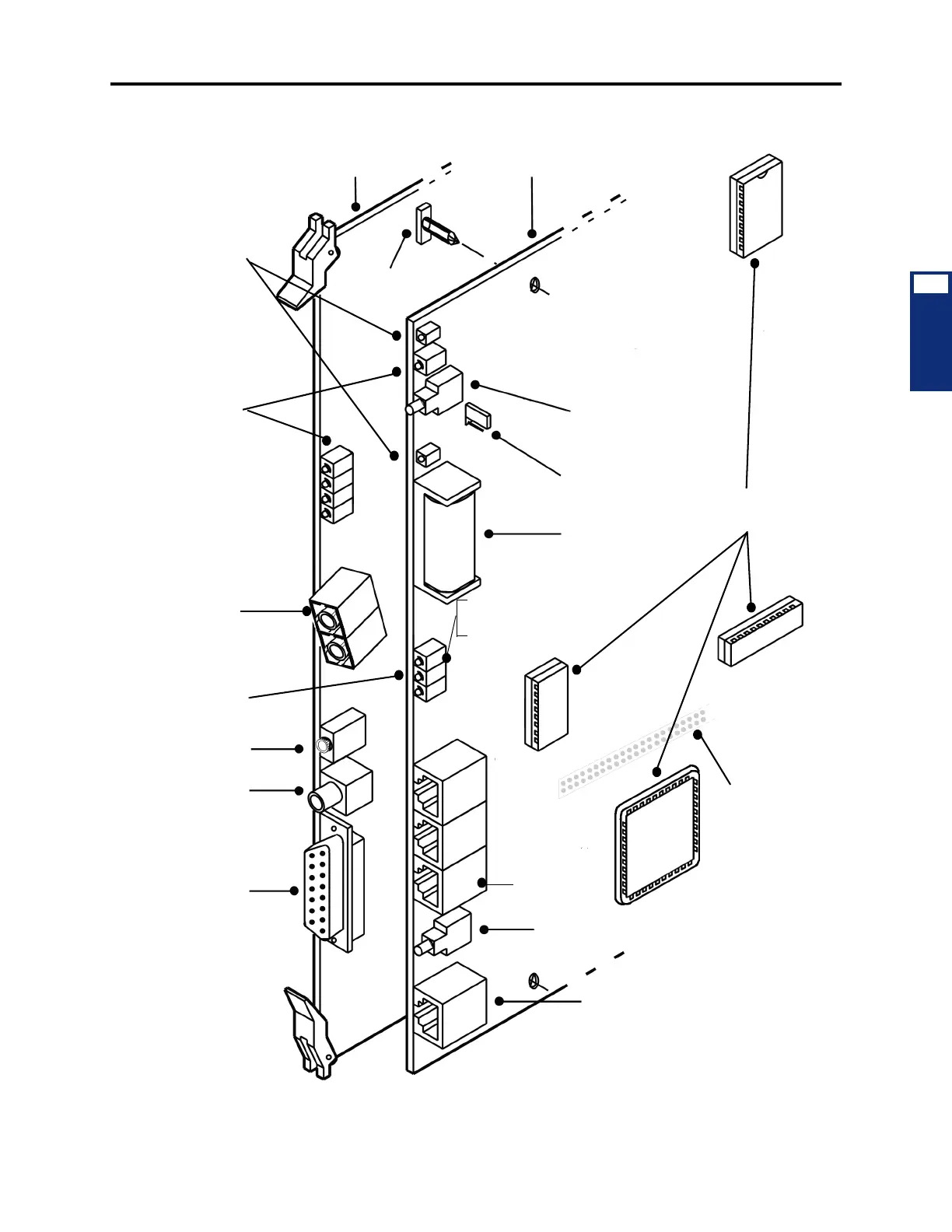

Figure 3-54. PCMA-C Card and Attached CPU020-A Card
BATTERY
TEST POINTS
LED
INDICATORS
RJ45
JACK
LED
INDICATORS
MUSIC JACK
EXTERNAL
PAGING PORT
DB15 PCM
CONNECTOR
PCMA-C CARD
CPU020-A CARD
BATTERY
CHECK SWITCH
BATTERY BACK-UP
(BBU) STRAP
LITHIUM BATTERY
RS232
CONNECTORS
RESET
SWITCH
RELAY JACK
MASTER (GREEN)
SLAVE (GREEN)
EXT. CLOCK (GREEN)
TO RJ45 JACK ON
PORT 2
PORT 3
PORT 1
TO VOICE PROCESSING UNIT
AUDIO INTERFACE CARD (AIC)
“A” SOFTWARE
COMPONENTS
U13
U42
J6
CONNECTORS
TO PCMA-C CARD
(REVERSE SIDE)
U41
U25
SERIAL
SERIAL
SERIAL
ATM LINK BAD (RED)
TP1 (VBAT+)
TP2 (VBAT-)
BATTERY OFF (RED)
ON
OFF
STANDOFF
ATM SWITCH
CPU ACTIVE (GREEN)
DATABASE ERROR (RED)
MINOR ALARM (YELLOW)
