Sample Executive/Standard Phone PCDPM Cable Connections
INSTALLATION
3

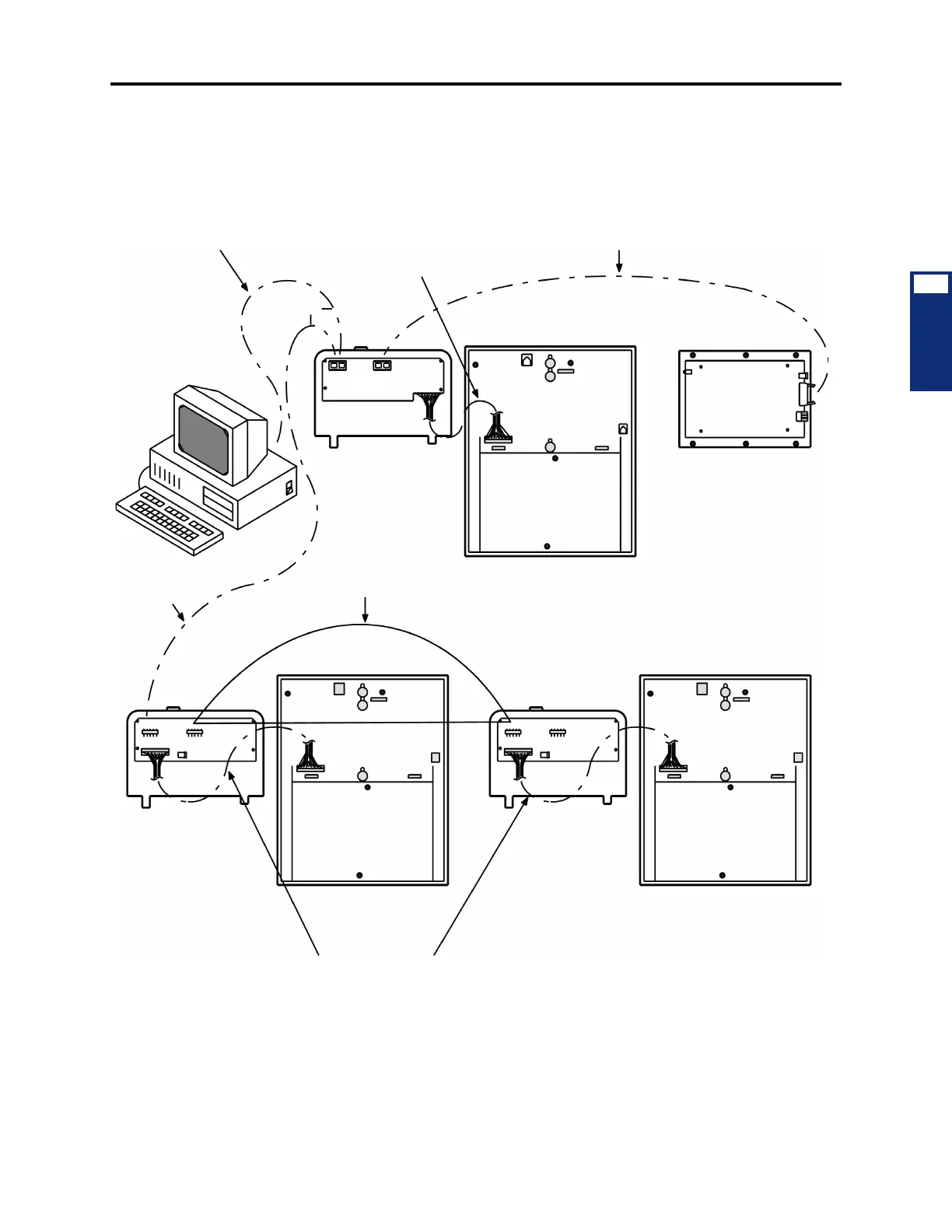

Figure 3-87. Sample Executive/Standard Phone PCDPM Cable Connections
MODEM DATA
PORT MODULE
BACK OF DIGITAL
PHONE
PC DATA PORT
MODULE
PC OR
OUTPUT DEVICE
CONNECTOR
BOARD
BACK OF 1ST
DSS/BLF UNIT
CONNECTOR
BOARD
BACK OF 2ND
DSS/BLF UNIT
(INSIDE OF BASEPLATE)
(INSIDE OF BASEPLATE)
(INSIDE OF BASEPLATE)
(TOP COVER REMOVED)
PCDPM-to-MDPM
INTERFACE CABLE
PCDPM-to-KEYSET
INTERFACE CABLE
PCDPM-to-RS232
INTERFACE CABLE
OR
PCDPM-to-DSS
INTERFACE CABLE
DSS-to-DSS
INTERFACE CABLE
Same as the PCDPM-to-KEYSET
INTERFACE CABLE shown above
P1
J1
J2
J1
P1
J1
J2
J3
J4
J1
J1
J2
J3
J4
J1
(813.1566)
(813.1748)
(813.1519)
(813.1519)
