Inter-Tel AXXESS - Figure 3-72 Example of a Point-To-Multi-Devices Setup Using a BRU Card

Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Page
3-140
Example of a Point-to-Multi-Devices Setup Using a BRU Card

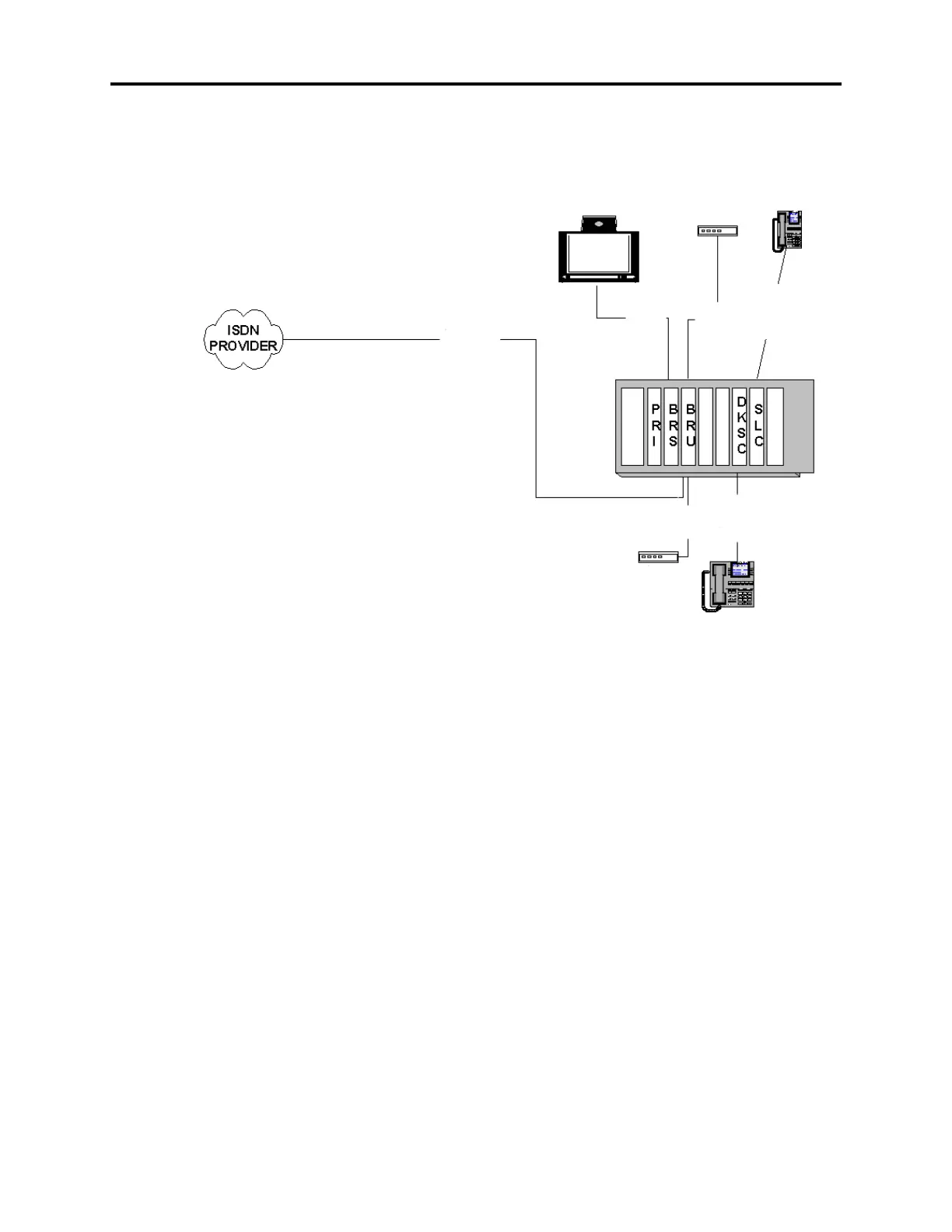

Figure 3-72. Example of a Point-to-Multi-Devices Setup Using a BRU Card
ISDN Circuit
U Interface
ISDN
Video Conference Unit
ISDN
Router
BRS
Station
Port
BRU
Station
Port
BRU
Port
Analog
Telephone
Modem or
Fax
Digital Key
Station
Port
ISDN Modem
Station
