On-Site Krone Connections for SLC-16 (Europe Only)
INSTALLATION
3

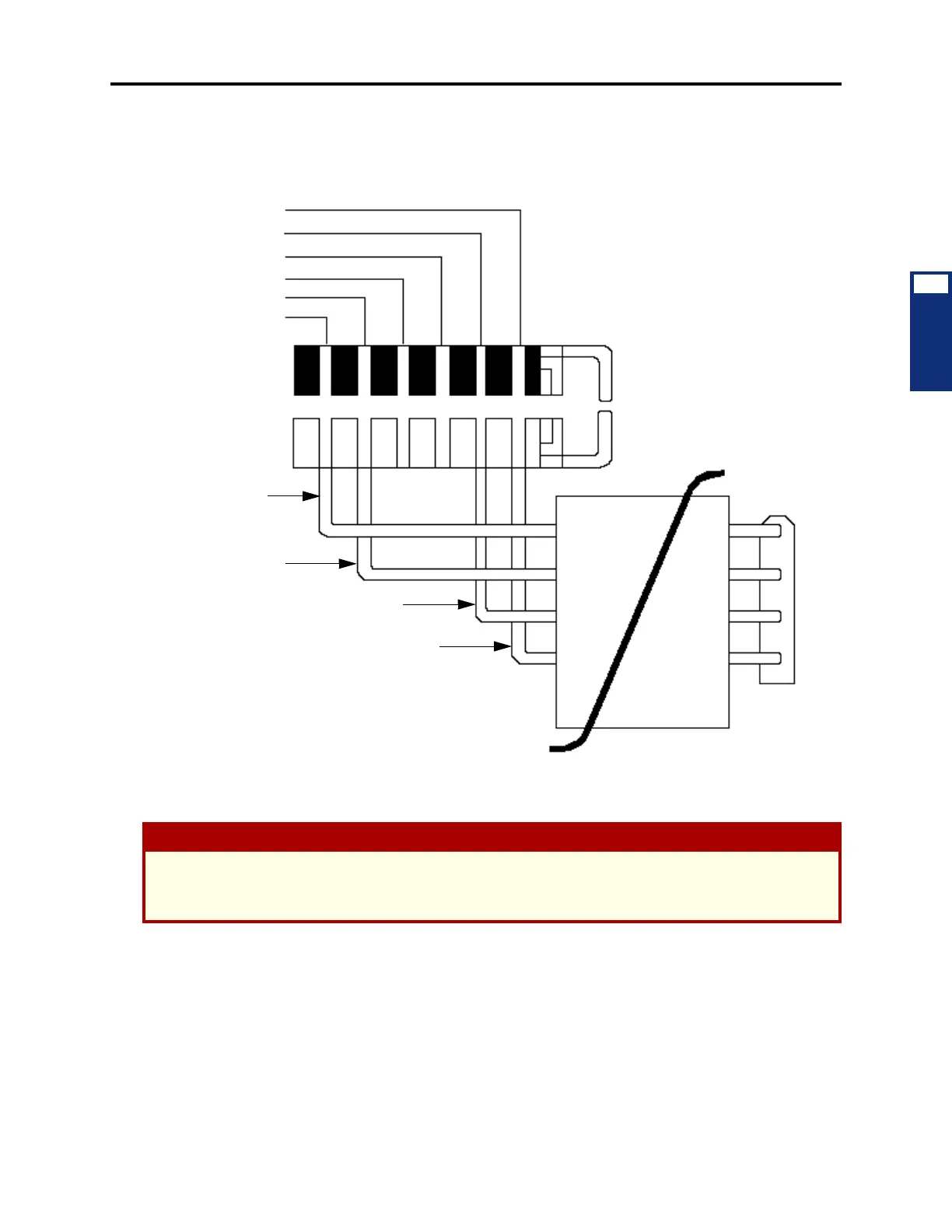

Figure 3-33. On-Site Krone Connections for SLC-16 (Europe Only)
Gray/Yellow
Yellow/Gray
Brown/Yellow
Yellow/Brown
Green/Yellow
Yellow/Green
2nd Block for SLC-16
White/Blue
Blue/White
White/Orange
Orange/White
8
9
0
(New Cable Red)
(New Cable Black)
(New Cable Yellow)
(New Cable Blue)
CAUTION
Please ensure that only the cable supplied with the SLC-16 is used. Cables supplied with other cards may
not be suitable. Inter-Tel is not responsible for damage to the SLC-16, PSU, or any other equipment caused
by using the wrong cable.
