Page 5-93
System Features
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Sample Call Routing Tables
FEATURES
5
Table 5-20. Sample Call Routing Tables for the U.S. (Continued)

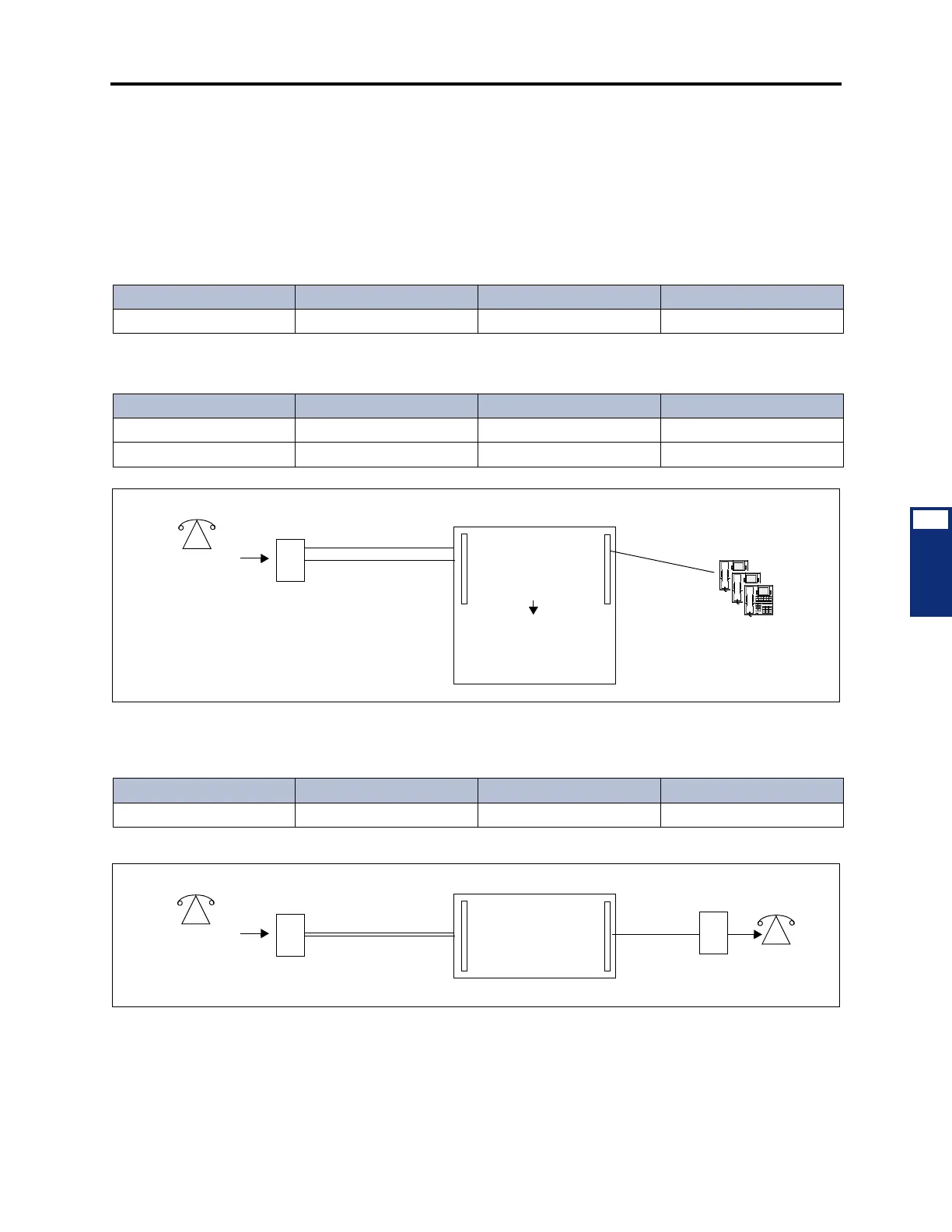

Sample #5: This table has a ring-in destination that sends calls to another call routing table. It also uses two-stage
caller identification (*ANI*DNIS*). In this example, a caller from area code 520 who dials the number (602) 961-
9000 would be routed to the AZ Hunt Group. If the caller in the 520 area code dialed any other number in area
code 602, the call would be routed to extension 1002.
TABLE 01 – CALL ROUTING KEY: Outside Party Number from 520 area code
TABLE 02 – CALL ROUTING KEY: Trunk Information calling 602+ number
Sample #6: For call routing to the public network, this table is programmed to send callers who dial a special num-
ber (940-1431) to an outside line.
Pattern Ring-In Type Name Ring-In Destination
520+ Call Routing Table Table 2 Call Routing Table 02
Pattern Ring-In Type Name Ring-In Destination
6029619000 Single AZ Hunt Group Hunt Group Number 2580
602+ Single Arizona Extension Number 1002
Pattern Ring-In Type Name Ring-In Destination
6029401431 Single CR To Public Trunk Group 92001
SAMPLE #5
DISPLAY:
AZ HUNT GROUP
RINGING IN
CALL ROUTING
TABLE 01:
CO
Ext. 2580
ANI/DNIS DIGITS
SYSTEM
Caller dialed
602-961-9000
520-555-0000
SENT TO SYSTEM:
HUNT GROUP
CALL ROUTING
TABLE 02:
6029619000 = AZ
HUNT GROUP
602-961-9000
from
520-555-0000
520+=CALL
ROUTING TABLE 02
INCOMING
CALL:
SAMPLE #6
CALL ROUTING
TABLE:
CO
SYSTEM
CALL:
Caller dialed
602-940-1431
System trunk rings in
602-940-1431
CO
Trunk Group
Caller hears
CO dial tone
6029401431 =CR
TO PUBLIC
92001 selected
