2-366 MACHINE OPERATIONS OPERACIONES DE MECANIZADO

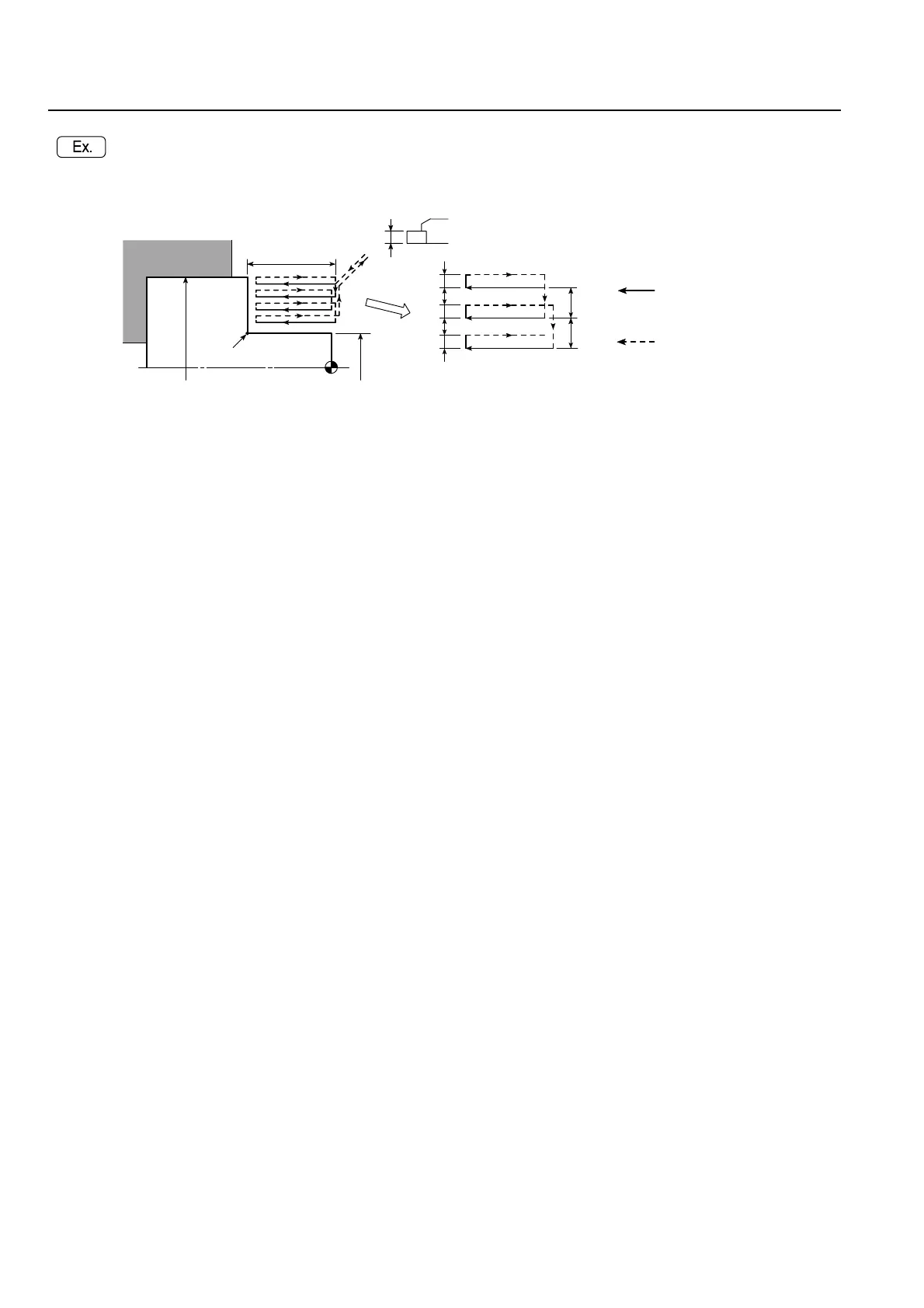

To create a program using the G74 face cut-off
cycle
Para crear un programa usando el ciclo de tronzado de
cara G74
3 (P)
3
1
1
1
(X70.0, Z40.0)
φ110
φ70
40
R(2)
4
Intermittent Feed
Avance
intermitente
Rapid Traverse
Avance rápido
O1;
N1;
G50 S1500;
G00 T0101;
G96 S100 M03;
X100.0 Z20.0 M08;
G01 Z3.0 F1.0; . . . . . . . . . Positioning at the start point (X100.0,
Z3.0) for the face cut-off cycle (G74)
Posicionamiento en el punto inicial (X100.0, Z3.0)
para el ciclo de tronzado de cara (G74)
G74 R0.1; . . . . . . . . . . . . . Setting of the parameter used for the
face cut-off cycle (G74)
R0.1 . . . . .Return amount in
intermittent feed:
0.1
Ajuste del parámetro empleado para el ciclo de
tronzado de cara (G74)
R0.1 . . . . . Cantidad de retroceso en
avance intermitente: 0,1
G74 X70.0 Z40.0 P3.0 Q10.0 R1.0 F0.25;
. . . . . . . . . . . . . . . . . . . . . . Execution of the face cut-off cycle
(G74)
X70.0 . . . .Cutting end point in
the X-axis direction
Z40.0 . . .Bottom of cutting in
the Z-axis direction
P3.0 . . . . .Interval in the X-axis
direction movement
(radius designation):
3 mm
Q10.0 . . .Infeed amount per
intermittent infeed
operation in the Z-
axis direction:
10 mm
R1.0 . . . . .Escape at the
bottom of cutting:
1 mm
F0.25 . . . .Feedrate:
0.25 mm/rev
At the completion of the cycle, the
cutting tool returns to the start point of
the cycle (X100.0, Z3.0), at a rapid
traverse rate.
Ejecución del ciclo de tronzado de cara (G74)
X70.0 . . . Punto final del corte en la
dirección del eje X
Z40.0 . . . Fondo del corte en la dirección
del eje Z
P3.0 . . . . . Intervalo del movimiento en la
dirección del eje X
(designación del radio): 3 mm
Q10.0 . . . Cantidad de avance por
operación de avance
intermitente en la dirección del
eje Z: 10 mm
R1.0 . . . . . Cantidad de alejamiento en el
fondo del corte: 1 mm
F0.25 . . . . Velocidad de avance:
0,25 mm/rev
Una vez finalizado el ciclo, la herramienta de
corte regresa al punto inicial del ciclo (X100.0,
Z3.0), a velocidad de avance rápido.
G00 X200.0 Z150.0;
M01;
