2-434 MACHINE OPERATIONS OPERACIONES DE MECANIZADO

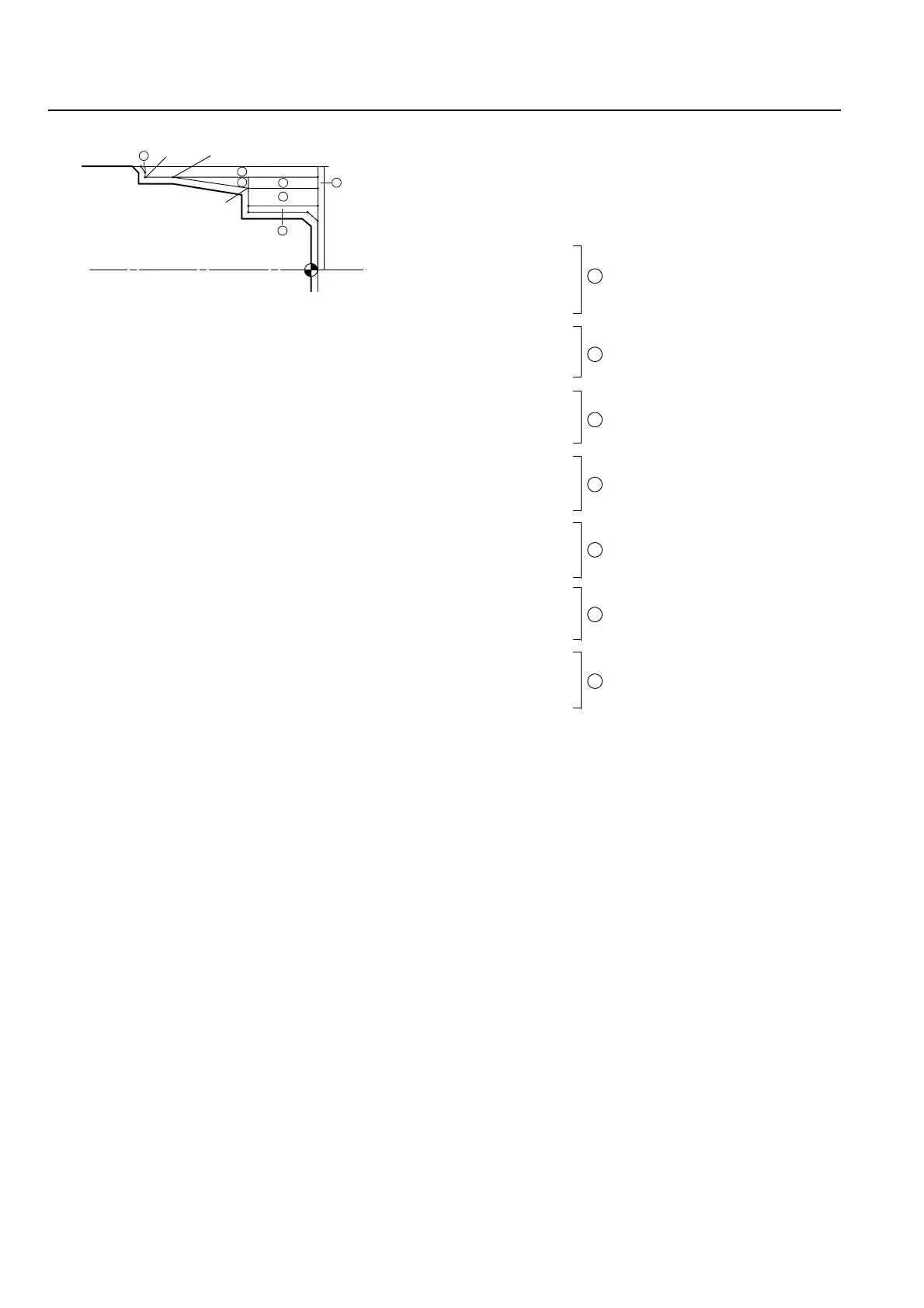

7) Create the part program for other processes such
as grooving and thread cutting.
In this example operation, there are no other
processes.
7) Cree el programa de pieza para otros procesos, como
ranurado y fileteado.
En esta operación de ejemplo, no hay ningún otro
proceso.
C
A
F
B
G
D
E
N1;
G50 S2000;
G00 T0101;
G96 S120 M03;
X68.0 Z20.0 M08;
G01 Z0.1 F1.0;
X10.0 F0.2;
X0 F0.1;
G00 X52.0 Z1.0;
G01 Z−49.9 F0.25;
G00 U2.0 Z1.0;
X44.0;
G01 Z−19.9;
G00 U2.0 Z1.0;
X36.0;
G01 Z−19.9;
G00 U2.0 Z1.0;
X26.3;
G01 X30.3 Z−1.0;
Z−19.9;
X44.3;
X50.3 Z−39.9;
Z−49.9;
X58.3;
X62.3 Z−51.9;
G00 U1.0 Z20.0;
X100.0 Z100.0;
M01;
A
B
C
D
E
F
G
X62.3 Z−51.9
Z
−49.9
Z
−39.9
Z
−19.9
Z
−52.0
Z
−44.0
Z
−36.0
Z
−30.3Z−1.0
