Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Page
3-212
Hardware Installation
c. Make sure that jumper straps are installed in the following locations on the AIC
(see Figure 3-97 on page 3-221 for orientation):
d. Holding the AIC near the PC Motherboard, disconnect the two-pin reset switch
cable from the PC Motherboard and attach it to connector J1 on the AIC. (The
other end of the cable should remain attached to the reset switch on the PC.)
NOTE: It may be necessary to unbundle the reset switch cable to allow it to reach
the AIC.
e.
Attach one end of the two-pin AIC-to-reset switch cable (supplied with the PC) to
connector J2 on the AIC. Attach the other end of the cable to the PC Motherboard
connector that was previously vacated in step 4d.
NOTE: Be sure that pin 1 marked on each end of the cable matches pin 1 on the
AIC and the PC Motherboard. (If connected incorrectly, the PC is reset continu-
ously or does not boot up at all.)
f.
Insert the AIC in the appropriate PC slot and attach it to the chassis using the
screw previously removed. Make sure the card is securely attached to the PC
Motherboard and does not touch any adjacent cards.

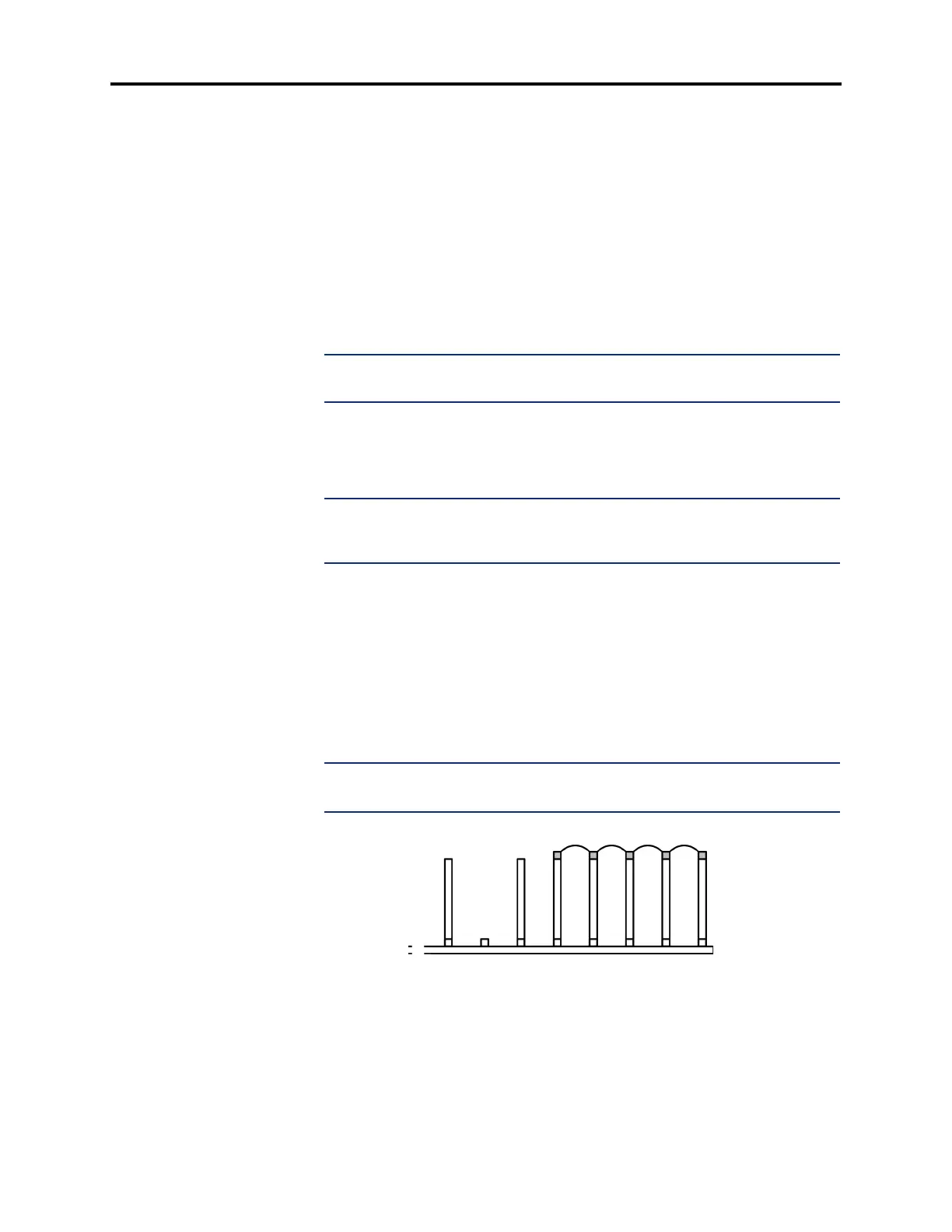

g. Attach one of the connectors on the end of the AIC-to-VPC interface cable to the
40-pin connector on the AIC, as shown below. (The other four connectors on the
cable are attached to the VPCs and optional Fax Card as they are installed. Note
that one end of the cable attaches to the AIC, and the other end of the cable
attaches to the 1st VPC.)
NOTE: The colored edge of the AIC-to-VPC interface cable must align with pin 1
on the connector (see Figure 3-97 on page 3-221).
5.
If not already installed, install each of the up to three Voice Processing Cards (VPCs) as
follows (see Figure 3-98 on page 3-222):
a. Remove the bracket that covers the opening to the appropriate 16-bit (full-size)
slot as shown in Figure 3-96 on page 3-220, and set the bracket and screw aside.
Jumper
Pins
Strap Location
J3 Over pins 1 and 2 (as shown on page 3-221)
J5 Over one pin only (or no strap)
J6 Over one pin only (or no strap)
1ST VPC
2ND VPC
3RD VPC
FAX CARD
AIC CARD
