Send documentation comments to mdsfeedback-doc@cisco.com
48-4
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 48 Configuring FCIP
About FCIP
FCIP Profiles
The FCIP profile contains information about the local IP address and TCP parameters. The profile
defines the following information:
• The local connection points (IP address and TCP port number)
• The behavior of the underlying TCP connections for all FCIP links that use this profile
The FCIP profile’s local IP address determines the Gigabit Ethernet port where the FCIP links terminate
(see
Figure 48-3).

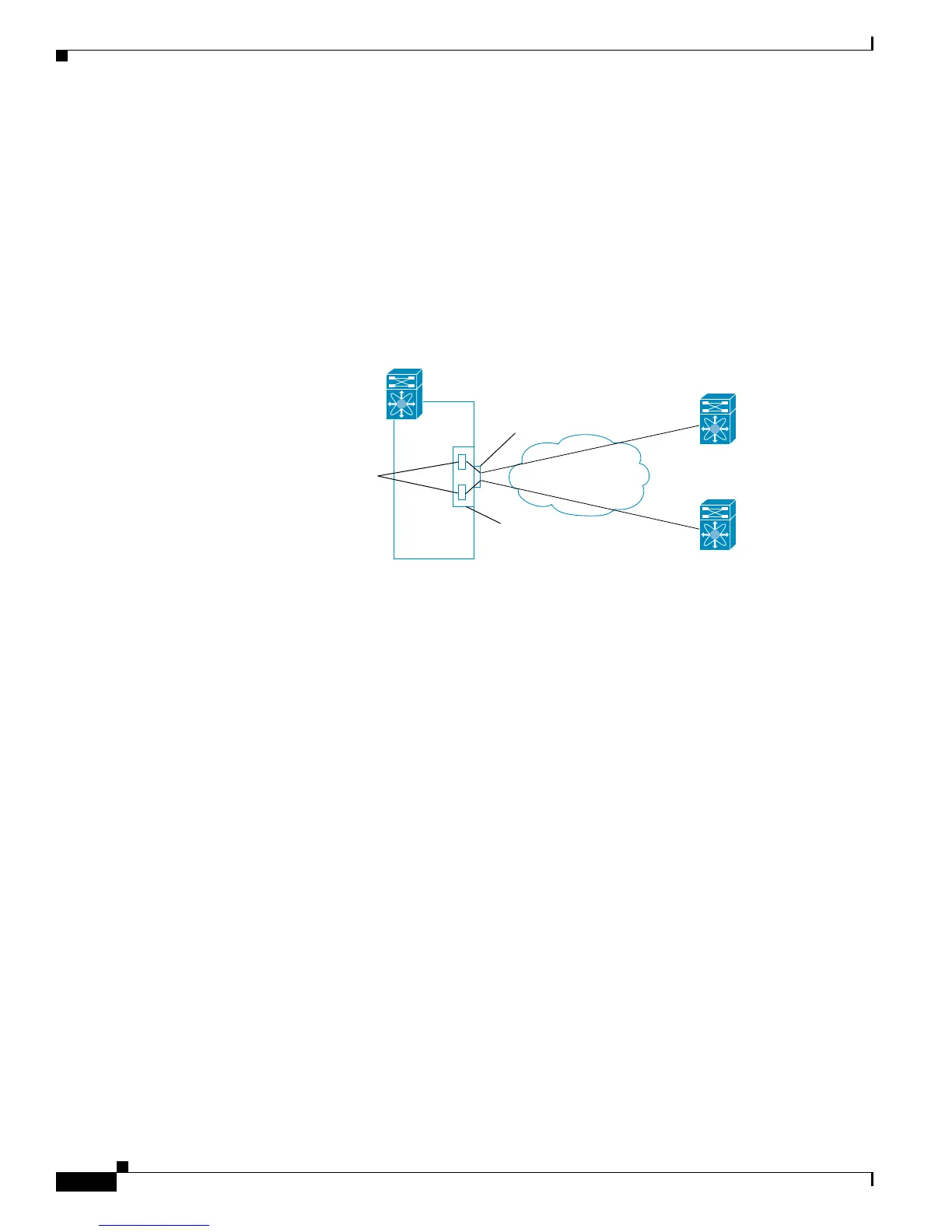

Figure 48-3 FCIP Profile and FCIP Links
FCIP Interfaces
The FCIP interface is the local endpoint of the FCIP link and a VE port interface. All the FCIP and E
port parameters are configured in context to the FCIP interface.
The FCIP parameters consist of the following:
• The FCIP profile determines which Gigabit Ethernet port initiates the FCIP links and defines the
TCP connection behavior.
• Peer information.
• Number of TCP connections for the FCIP link.
• E port parameters—trunking mode and trunk allowed VSAN list.
FCIP High-Availability Solutions
The following high-availability solutions are available for FCIP configurations:
• Fibre Channel PortChannels, page 48-5
• FSPF, page 48-5
• VRRP, page 48-6
• Ethernet PortChannels, page 48-6
IP
network
FCIP link 1
FCIP link 3
Switch 1
Switch 2
Switch 4
FCIP
interfaces
Gigabit
Ethernet
FCIP
profile
91558
