Send documentation comments to mdsfeedback-doc@cisco.com
20-19
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 20 Configuring Interfaces
Fibre Channel Interfaces
Step 1 Expand Switches > Interfaces and then select FC Physical.
You see the interface configuration in the Information pane.
Step 2 Click the Other tab and set the RxDataFieldSize field (see Figure 20-9).

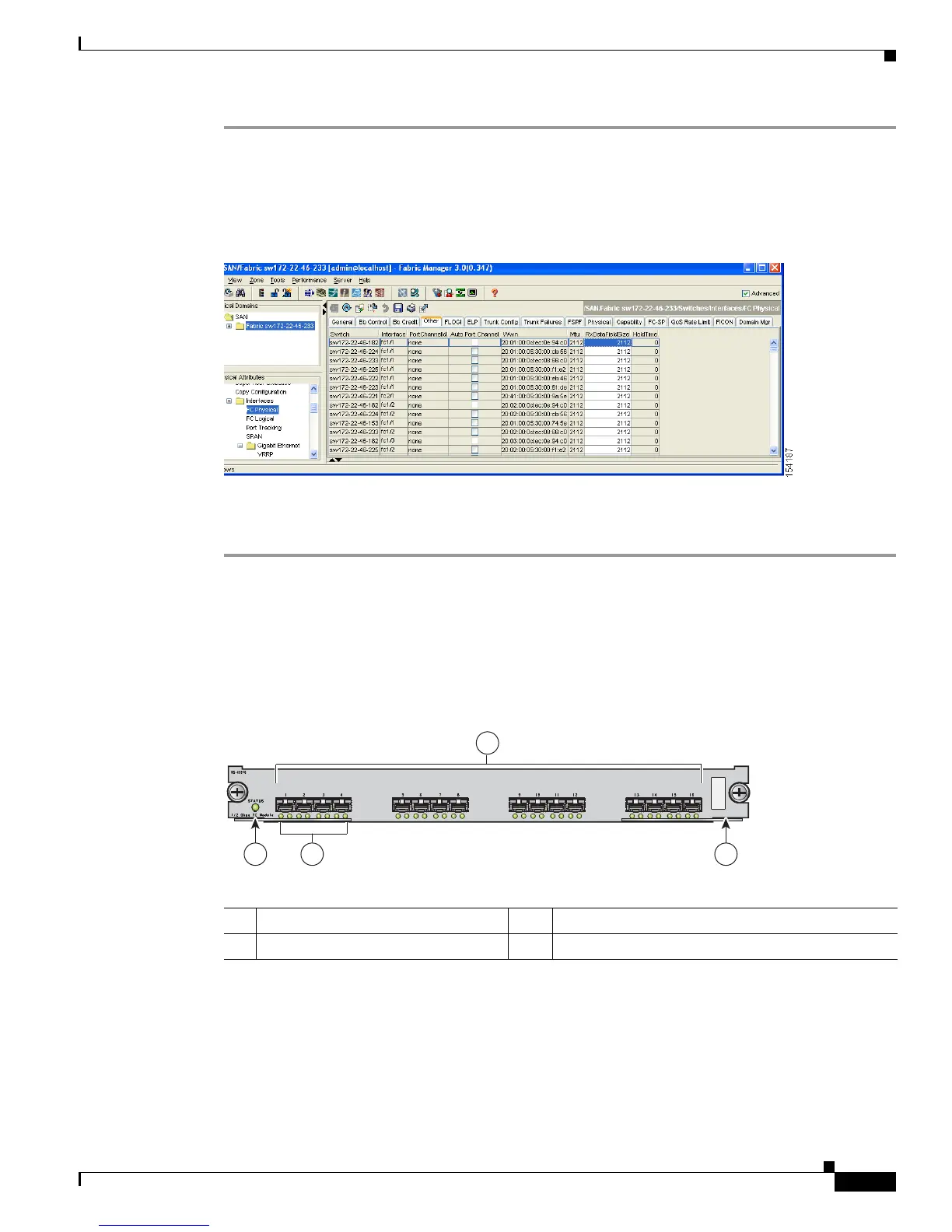

Figure 20-9 Changing Rx Data Size
Step 3
(Optional) Set other configuration parameters using the other tabs.
Step 4 Click Apply Changes.
Identifying the Beacon LEDs
Figure 20-10 displays the status, link, and speed LEDs in a 16-port switching module.
Figure 20-10 Cisco MDS 9000 Family Switch Interface Modes
About Speed LEDs
Each port has one link LED on the left and one speed LED on the right.
1 Status LED
1
1. See the “Identifying Module LEDs” section on page 19-9.
3 Link LEDs
1
and speed LEDs
2
2. See the “About Speed LEDs” section on page 20-19.
2 1/2-Gbps Fibre Channel port group 4 Asset tag
3
3. Refer to the Cisco MDS 9000 Family hardware installation guide for your platform.
77686
2
1 43
