Chapter 30 Configuring and Managing Zones
Zone Sets
Activating a Zone Set
Changes to a zone set do not take effect in a full zone set until you activate it.
To activate an existing zone set using Fabric Manager, follow these steps:
Step 1 Choose Zone > Edit Local Full Zone Database.
You see the Select VSAN dialog box.
Step 2 Select a VSAN and click OK.
You see the Edit Local Full Zone Database dialog box for the selected VSAN.
Step 3 Click Activate to activate the zone set.
You see the pre-activation check dialog box shown in Figure 30-16.

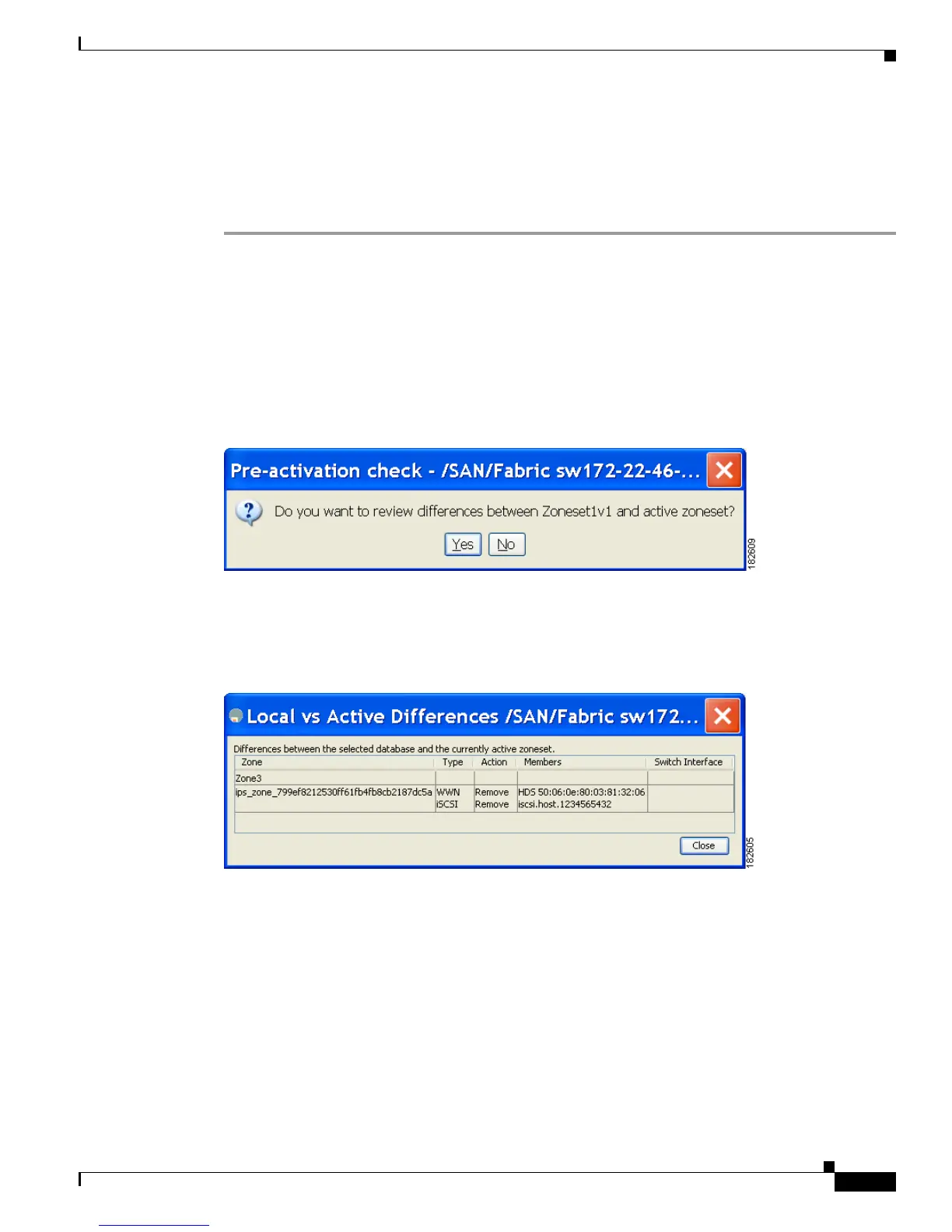

Figure 30-16 Pre-Activation Check Dialog Box
Step 4
Click Yes to review the differences.
You see the Local vs. Active Differences dialog box shown in Figure 30-17.
Figure 30-17 Local vs Active Differences Dialog Box
Step 5
Click Close to close the dialog box.
You see the Save Configuration dialog box shown in Figure 30-18.
