Chapter 7 Fabric Manager Web Client
Admin
Configuring Collection Thresholds
To configure collection thresholds using Fabric Manager Web Client, follow these steps:
Step 1 Click the Admin tab, and then click Configure.
Step 2 Click Thresholds in the left navigation pane.

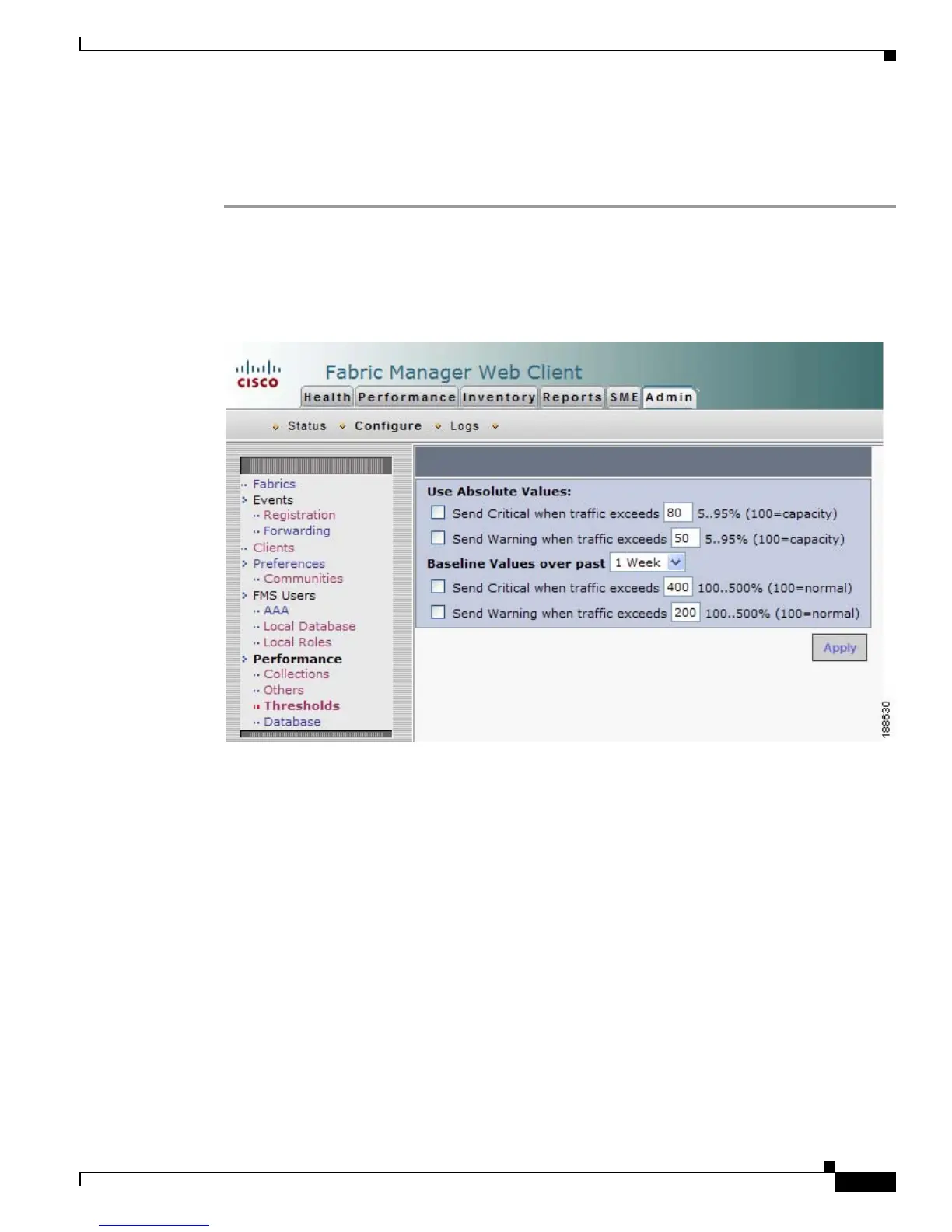

You see the Thresholds page shown in Figure 7-55.
Figure 7-55 Thresholds Page
Step 3
If you are using absolute values, follow these steps, otherwise skip to Step 3.
a. To configure conditions for sending Critical notifications, check the Send Critical check box. In the
“...when traffic exceeds” field, enter a number (from 5 to 95) to indicate the percentage at which the
Critical notification is sent. For example, entering 10 causes a notification to be sent when traffic at
any given time exceeds 10% of capacity.
b. To configure conditions for sending Warning notifications, check the Send Warning check box. In
the “...when traffic exceeds” field, enter a number (from 5 to 95) to indicate the percentage at which
the Warning notification is sent. For example, entering 9 causes a notification to be sent when traffic
at any given time exceeds 9% of capacity.
Step 4 Select the time period for the collection (1 Week, 1 Month, or 1 Year) from the Baseline Values over past
drop-down list. The baseline value represents the sum of the absolute values.
a. To configure conditions for sending Critical notifications, check the Send Critical check box. In the
“...when traffic exceeds” field, enter a number to indicate the percentage at which the Critical
notification is sent. For example, entering 300 causes a notification to be sent when traffic for the
selected period exceeds 300% of capacity.
