Send documentation comments to mdsfeedback-doc@cisco.com
59-11
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 59 Configuring RMON
Create RMON Alarms in Fabric Manager

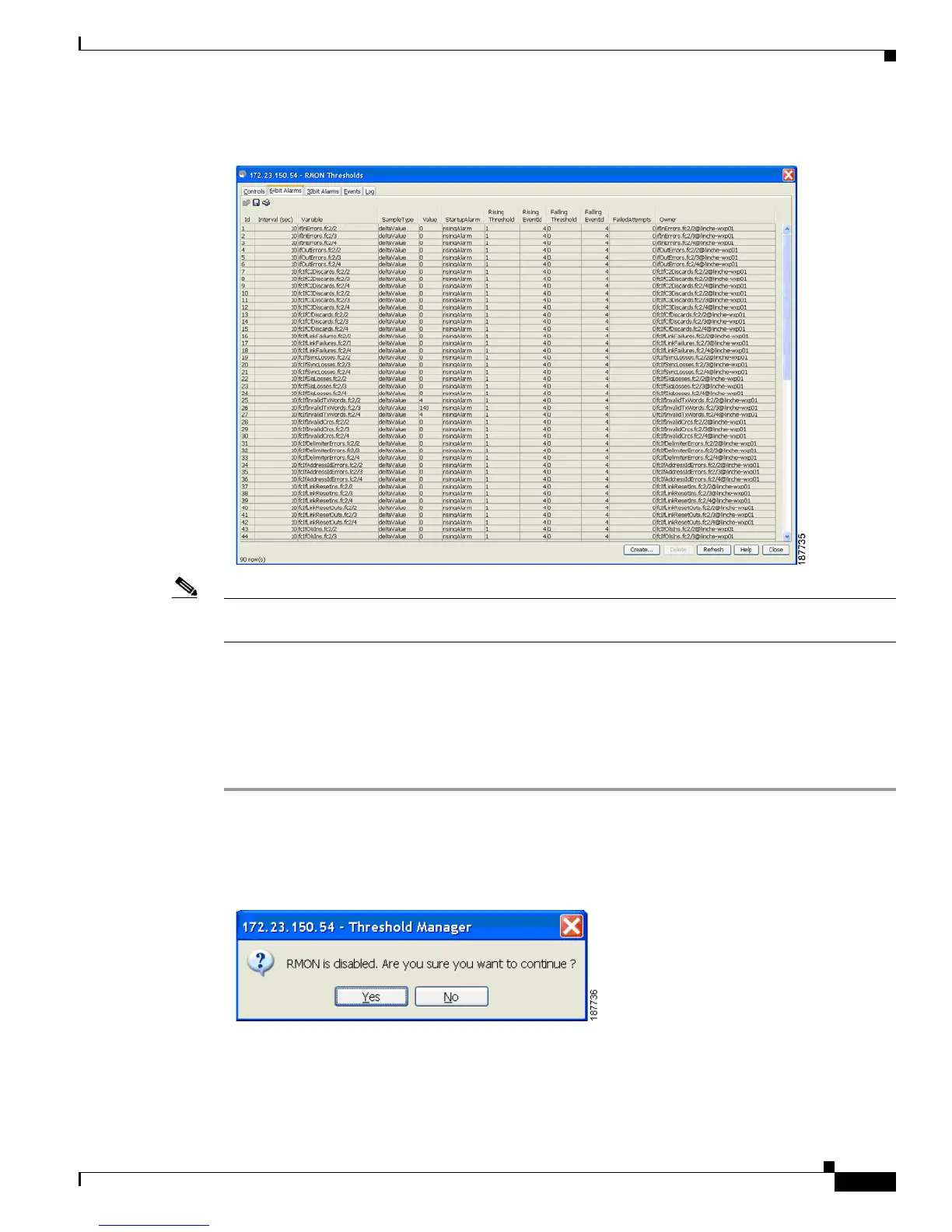

Figure 59-10 64-Bit Alarm Tab
Note The MaxAlarm option is noneditable because of backend support. The max RMON alarms cannot be set
using the CLI.
Creating a New RMON from Device Manager Threshold Manager
RMON does not check the RMON alarm configuration before configuring the switch.
To configure an RMON alarm from Device Manager Threshold Manager, follow these steps:
Step 1 Choose Physical Attributes > Events > RMON and click the Control tab.
You see the create RMON alarm Threshold Manager dialog box as shown in Figure 59-11.
Figure 59-11 Create RMON Alarm Threshold Manager
A user error is prompted if adding the new alarm exceeds the maximum alarm.
