Send documentation comments to mdsfeedback-doc@cisco.com
30-18
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 30 Configuring and Managing Zones
Zone Sets

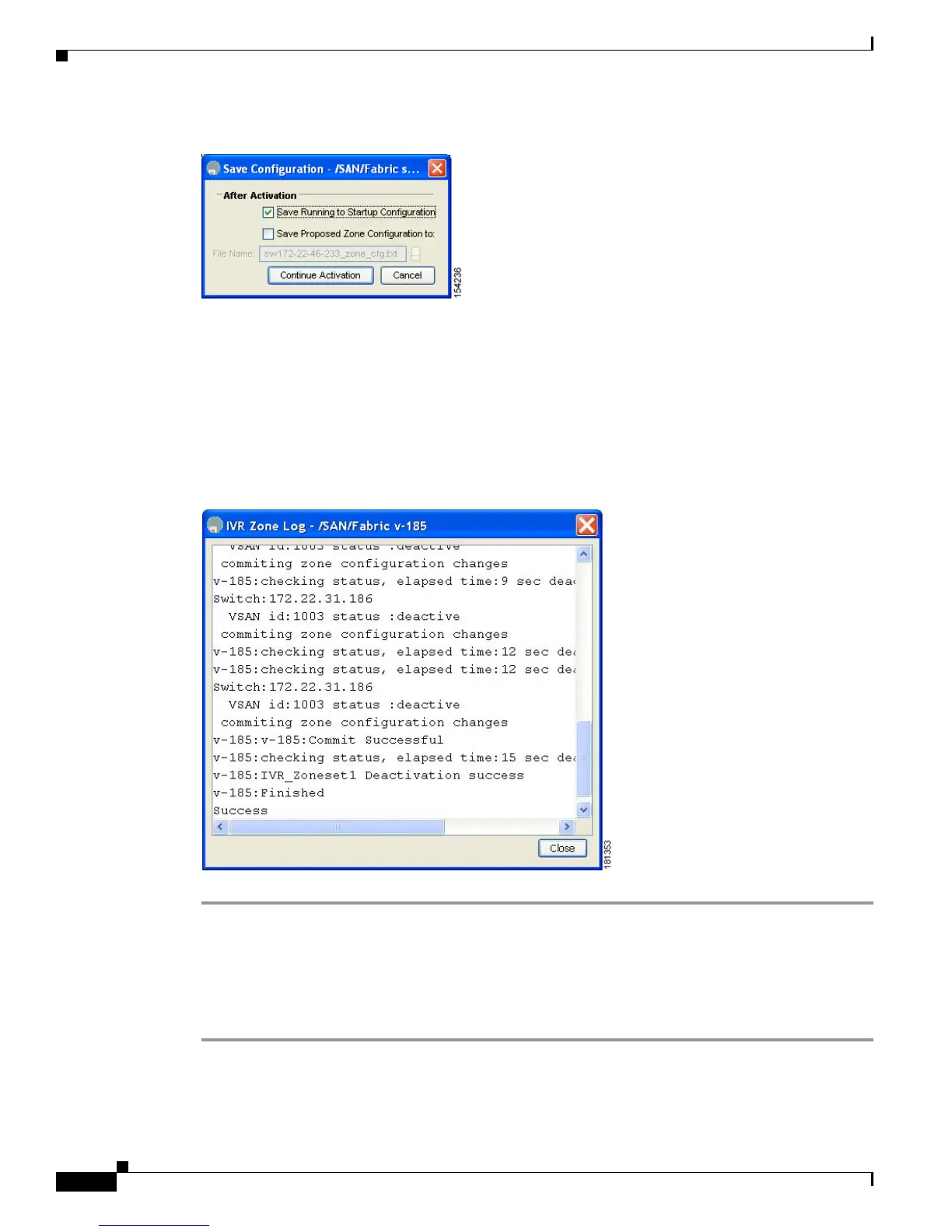

Figure 30-18 Save Configuration Dialog Box
Step 6
Check the Save Running to Startup Configuration check box to save all changes to the startup
configuration.
Step 7 Click Continue Activation to activate the zone set, or click Cancel to close the dialog box and discard
any unsaved changes.
You see the Zone Log dialog box, which shows if the zone set activation was successful (see
Figure 30-19).
Figure 30-19 Zone Log Dialog Box
Deactivating a Zoneset
To deactivate an existing zone set, follow these steps:
Step 1 Right-click the zone set you want to deactivate and then click Deactivate from the pop-up menu.
You see the Deactivate Zoneset dialog box as shown in Figure 30-20.
