Send documentation comments to mdsfeedback-doc@cisco.com
30-39
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 30 Configuring and Managing Zones
Advanced Zone Attributes
You can configure broadcast frames in the basic zoning mode. By default, broadcast zoning is disabled
and broadcast frames are sent to all Nx ports in the VSAN. When enabled, broadcast frames are only
sent to Nx ports in the same zone, or zones, as the sender. Enable broadcast zoning when a host or storage
device uses this feature.
Table 30-2 identifies the rules for the delivery of broadcast frames.
Tip If any NL port attached to an FL port shares a broadcast zone with the source of the broadcast frame,
then the frames are broadcast to all devices in the loop.
Caution If broadcast zoning is enabled on a switch, you cannot configure the interop mode in that VSAN.
Configuring Broadcast Zoning
To broadcast frames in the basic zoning mode using Fabric Manager, follow these steps:
Step 1 Expand a VSAN and then select a zone set in the Logical Domains pane.
Step 2 Click the Policies tab in the Information pane.
You see the Zone policy information in the Information pane in Figure 30-40.

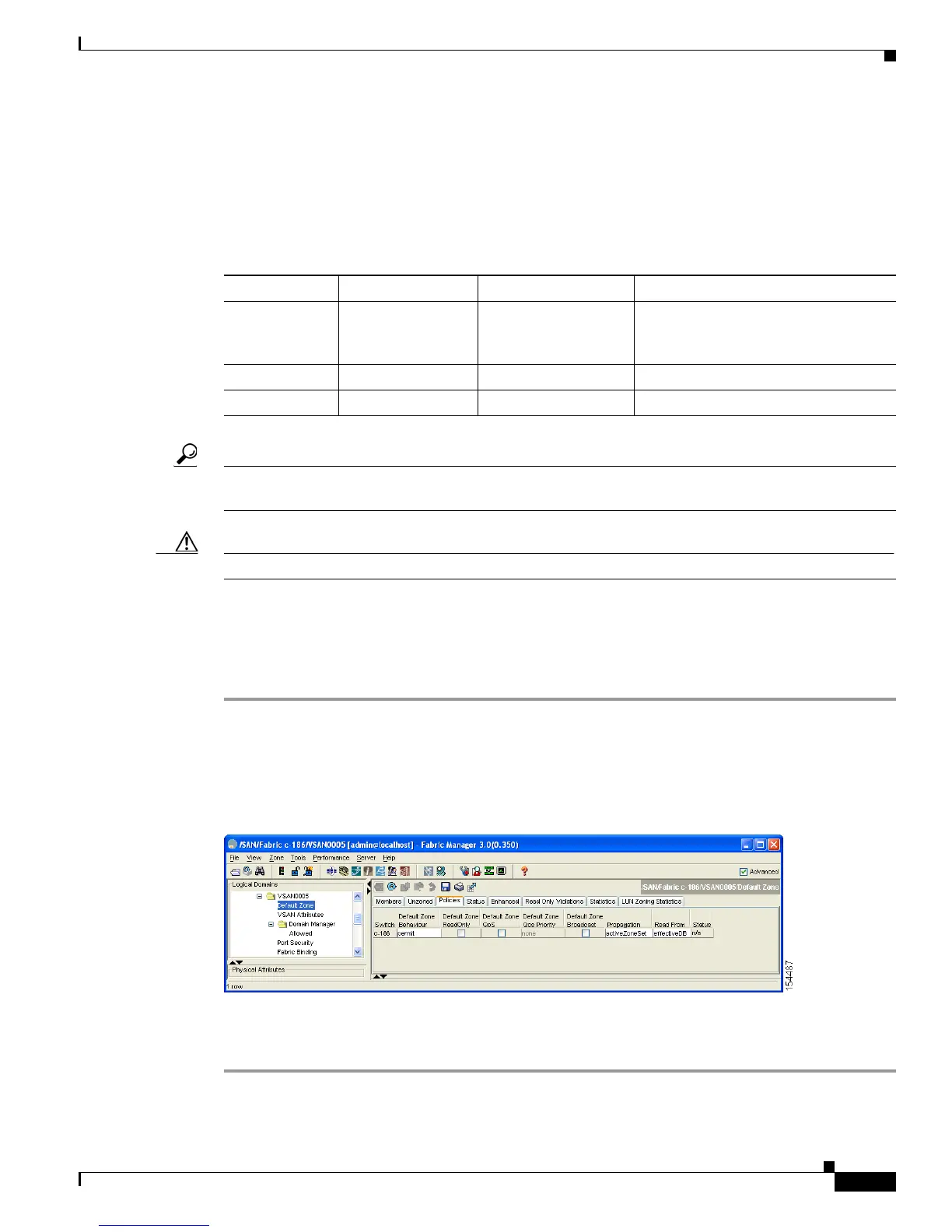

Figure 30-40 Zone Policy Information
Step 3
Check the Broadcast check box to enable broadcast frames on the default zone.
Step 4 Click Apply Changes to save these changes.
Table 30-2 Broadcasting Requirements
Active Zoning? Broadcast Enabled? Frames Broadcast? Comments
Yes Yes Yes Broadcast to all Nx ports that share a
broadcast zone with the source of
broadcast frames.
No Yes Yes Broadcast to all Nx ports.
Yes No No Broadcasting is disabled.
