Send documentation comments to mdsfeedback-doc@cisco.com
30-32
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 30 Configuring and Managing Zones
Zone Set Duplication

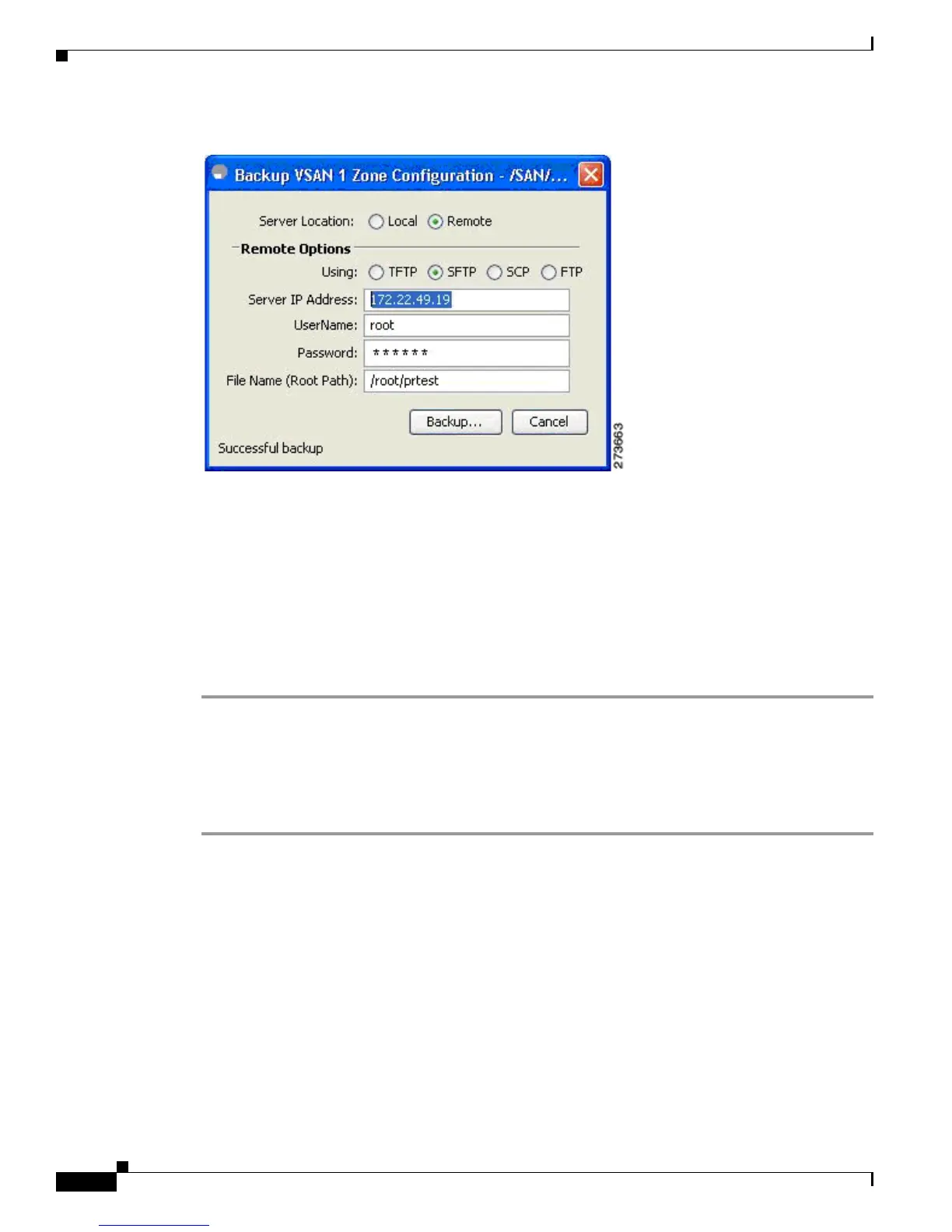

Figure 30-32 Backup Zone Configuration Dialog Box
You can edit this configuration before backing up the data to a remote server.
Step 4 Provide the following Remote Options information to back up data onto a remote server:
a. Using—Select the protocol.
b. Server IP Address—Enter the IP adress of the server.
c. UserName—Enter the name of the user.
d. Password—Enter the password for the user.
e. File Name(Root Path)—Enter the path and the filename.
Step 5 Click Backup or click Cancel to close the dialog box without backing up.
Restoring Zones
To restore the full zone configuration using Fabric Manager, follow these steps:
Step 1 Choose Zone > Edit Local Full Zone Database.
You see the Select VSAN dialog box.
Step 2 Select a VSAN and click OK.
You see the Edit Local Full Zone Database dialog box for the selected VSAN as shown in Figure 30-33.
