Manual IVR Configuration
Note You can only use AFID configuration when the VSAN topology mode is automatic. In user-configured
VSAN topology mode, the AFIDs are specified in the VSAN topology configuration itself and a separate
AFID configuration is not needed.
Configuring Default AFIDs
To configure default AFIDs using Fabric Manager, follow these steps:
Step 1 Expand All VSANs and then select IVR in the Logical Domains pane.
You see the IVR configuration in the Information pane.
Step 2 Click the Default Fabric ID tab to display the existing default AFIDs.
Step 3 Click the Create Row icon to create a default AFID.
Step 4 Check the check boxes next to each switch involved in IVR that you want to use this default AFID.
Step 5 Provide a name for each SwitchWWN and set the default Fabric ID.
Step 6 Click Create to create this entry.
Step 7 Repeat Step 1 through Step 6 for all default AFIDs that you want to configure in your IVR topology.
Configuring Individual AFIDs
To configure individual AFIDs using Fabric Manager, follow these steps:
Step 1 Expand All VSANs and then select IVR in the Logical Domains pane.
You see the IVR configuration in the Information pane.

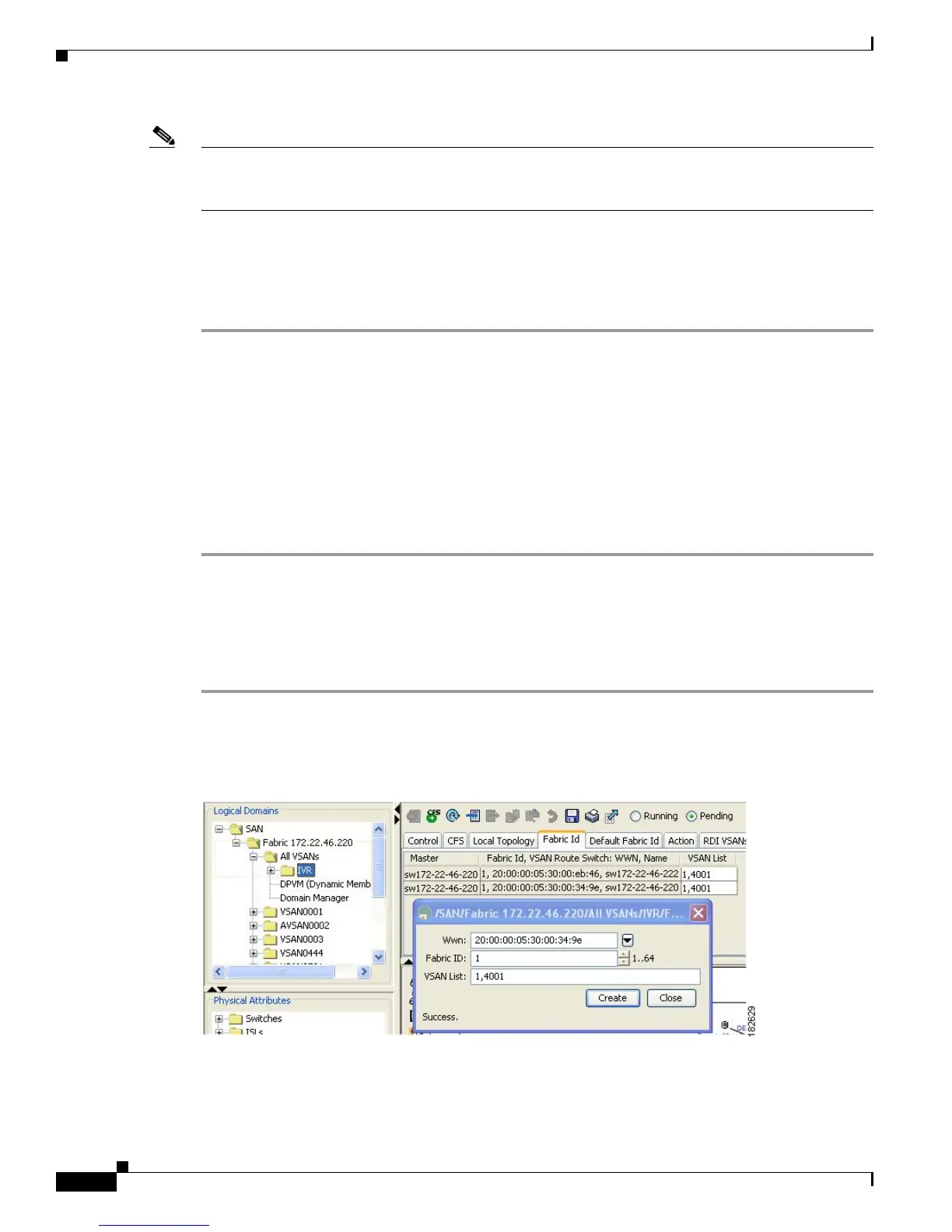

Figure 29-5 Fabric ID Tab
Step 2
Click the Fabric ID tab to display the existing AFIDs (see Figure 29-5).
Step 3 Click the Create Row icon to create an AFID.
