Send documentation comments to mdsfeedback-doc@cisco.com

59-6

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 59 Configuring RMON

Create RMON Alarms in Fabric Manager

To create 64-bit RMON alarms using Fabric Manager, follow these steps:

Step 1 Choose Physical Attributes > Events > RMON tab.

You see the 64-bit alarm dialog box as shown in Figure 59-4.

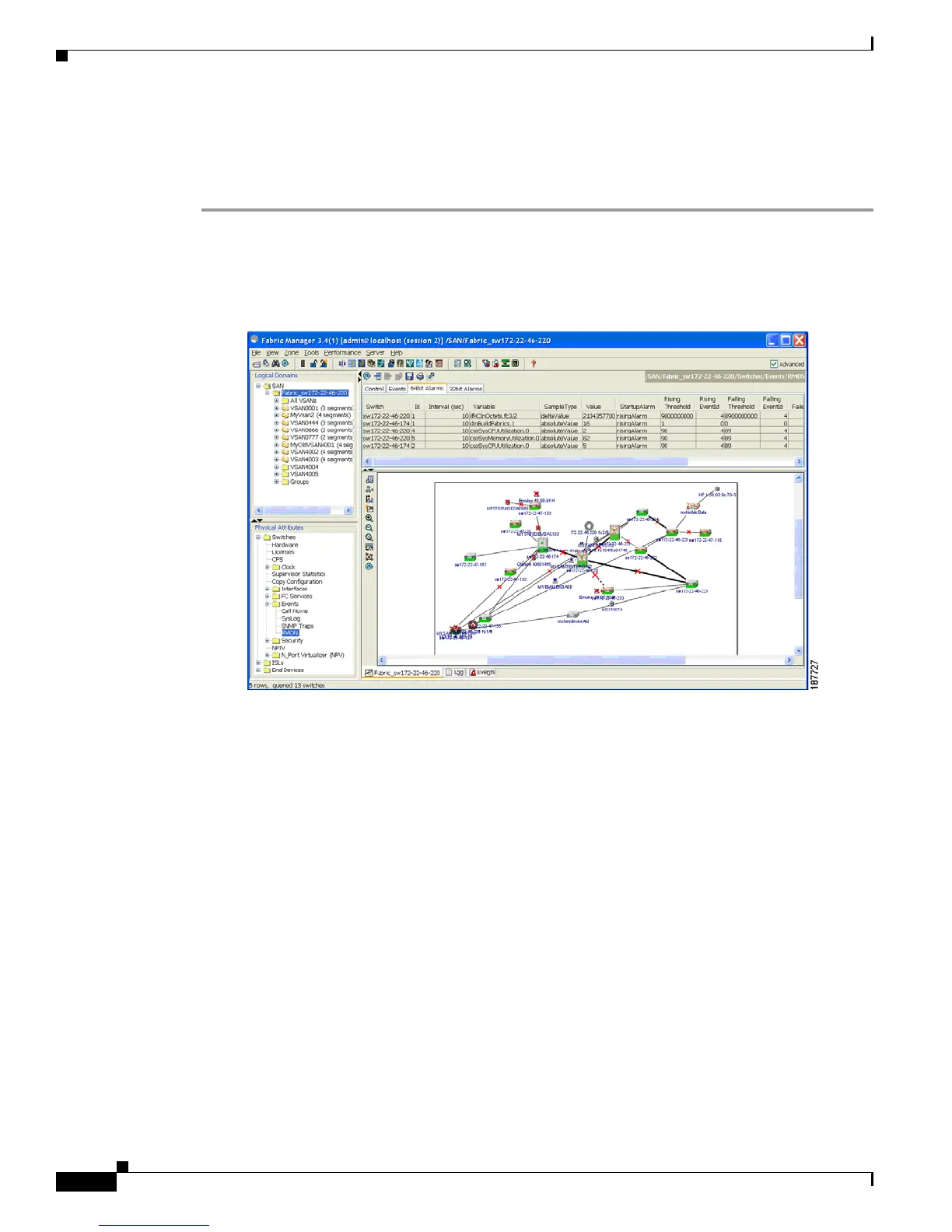

Figure 59-4 64-Bit Alarm Dialog Box

Step 2 Click the 64-bit alarms tab.

Step 3 Click Create Row tab.
