Chapter 7 Fabric Manager Web Client
Navigating Fabric Manager Web Client

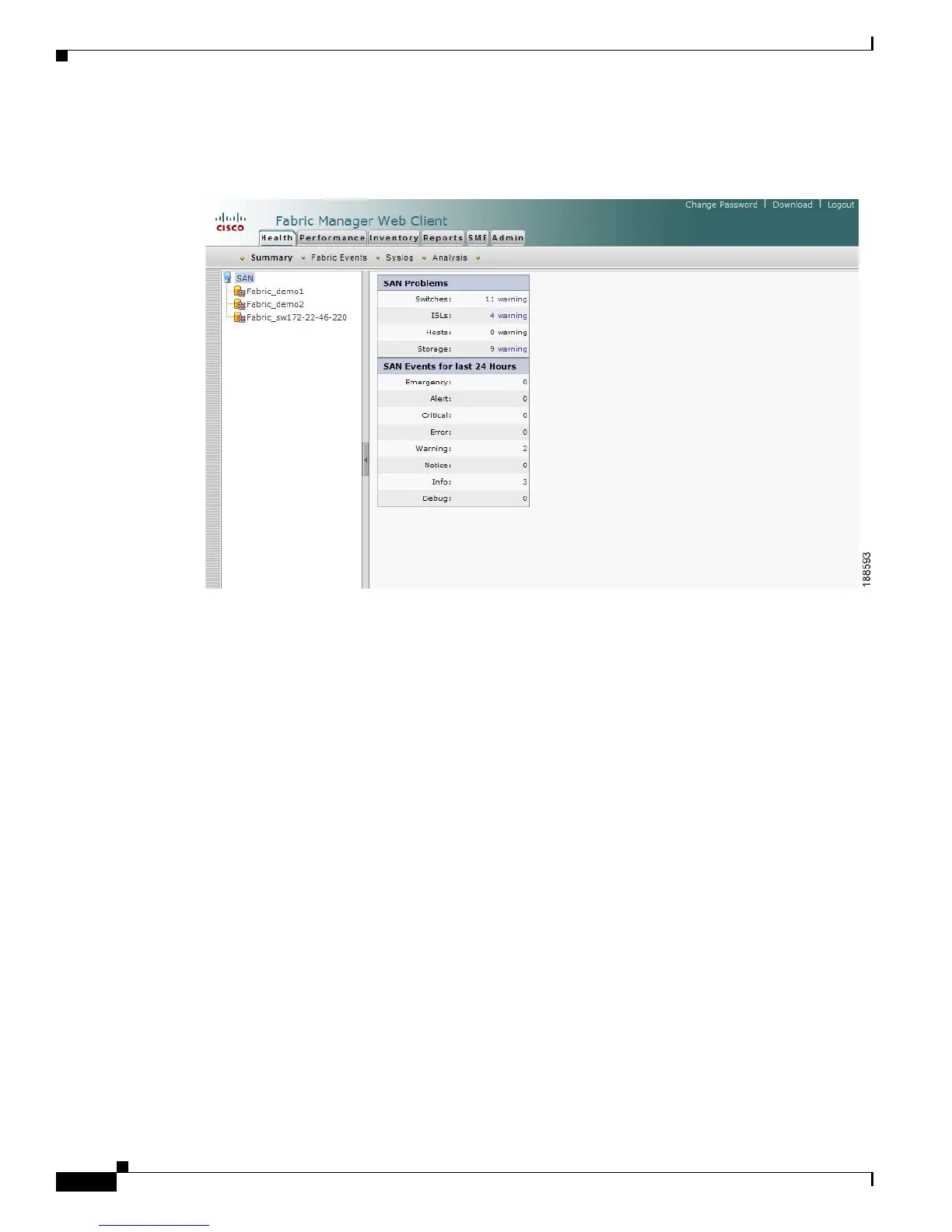

You see Fabric Manager Web Client window as shown in Figure 7-1.
Figure 7-1 Fabric Manager Web Client
Navigating Fabric Manager Web Client
With most screens, Fabric Manager Web Client has standardized certain navigation conventions.
Navigation Tree
You can use the filter navigation tree in the left pane to access the areas you want as follows:
• Select SAN to view information for all fabrics and VSANs in the SAN. When you do this, a Fabric
column is added as the first column of the tables.
• Click a fabric folder to view information for that specific fabric.
• Some screens have expandable fabric folders. You can expand the fabric folders (by clicking the +
or - icons in front of the folders) to see a list of VSANs in that fabric. Select a VSAN to view
information for that VSAN.
The features accessible from the tabs are limited to the areas you select in the filter tree.
