Configuring PortChannels
This chapter discusses the PortChannel feature provided in the switch and includes the following
sections:
• About PortChannels, page 23-1
• PortChannel Configuration, page 23-9
• Interfaces in a PortChannel, page 23-17
• PortChannel Protocols, page 23-20
• Verifying the PortChannel Configuration, page 23-24
• Default Settings, page 23-25
About PortChannels
PortChannels refer to the aggregation of multiple physical interfaces into one logical interface to provide
higher aggregated bandwidth, load balancing, and link redundancy (See Figure 23-1). PortChannels can
connect to interfaces across switching modules, so a failure of a switching module cannot bring down
the PortChannel link.

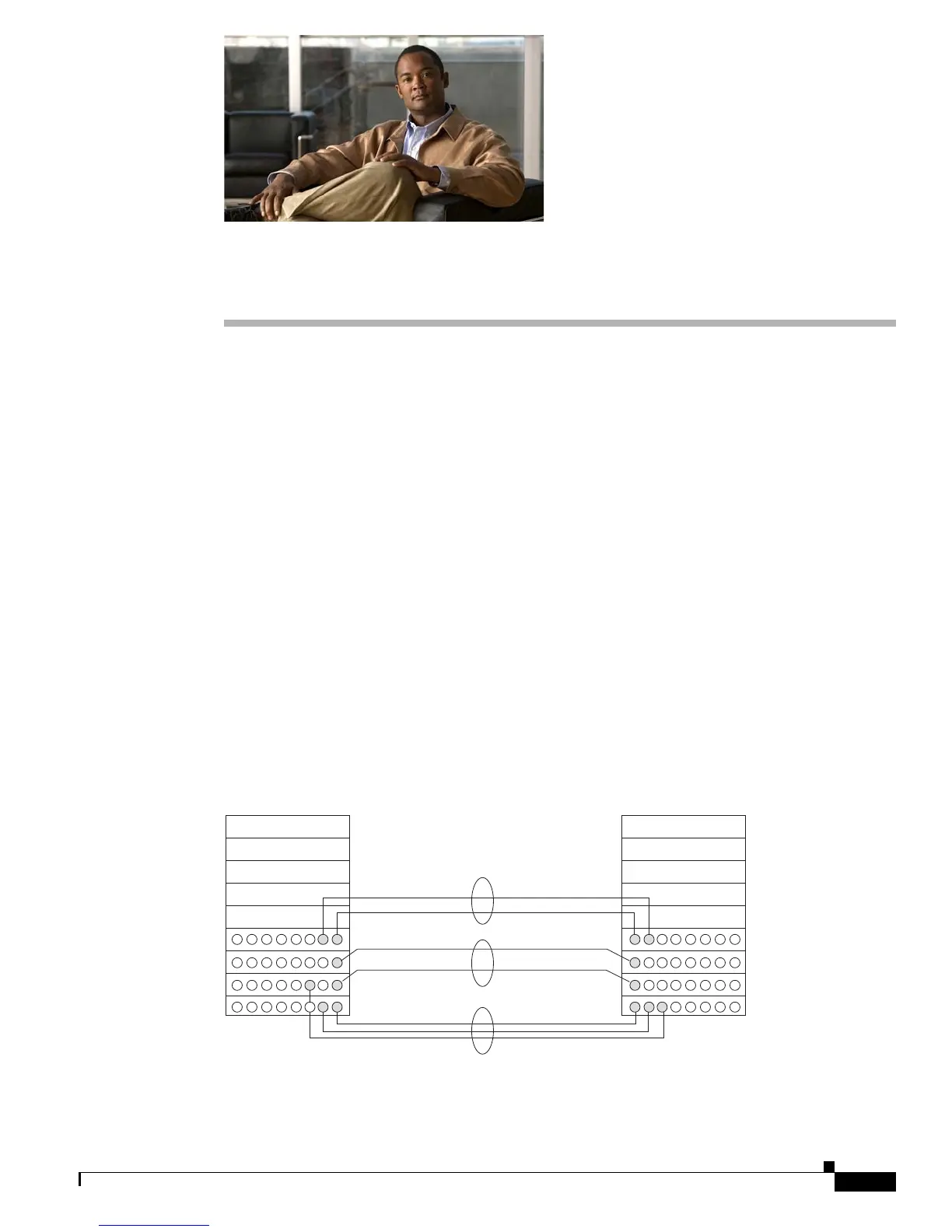

Figure 23-1 PortChannel Flexibility
Switch 1 Switch 2
PortChannel A
PortChannel B
PortChannel C
79529
