Chapter 30 Configuring and Managing Zones
Zone Sets
• About FC Alias Creation, page 30-21
• Creating FC Aliases, page 30-22
• Adding Members to Aliases, page 30-22
• Converting Zone Members to pWWN-based Members, page 30-24
• Zone Enforcement, page 30-26
About Zone Set Creation
In Figure 30-15, two separate sets are created, each with its own membership hierarchy and zone
members.

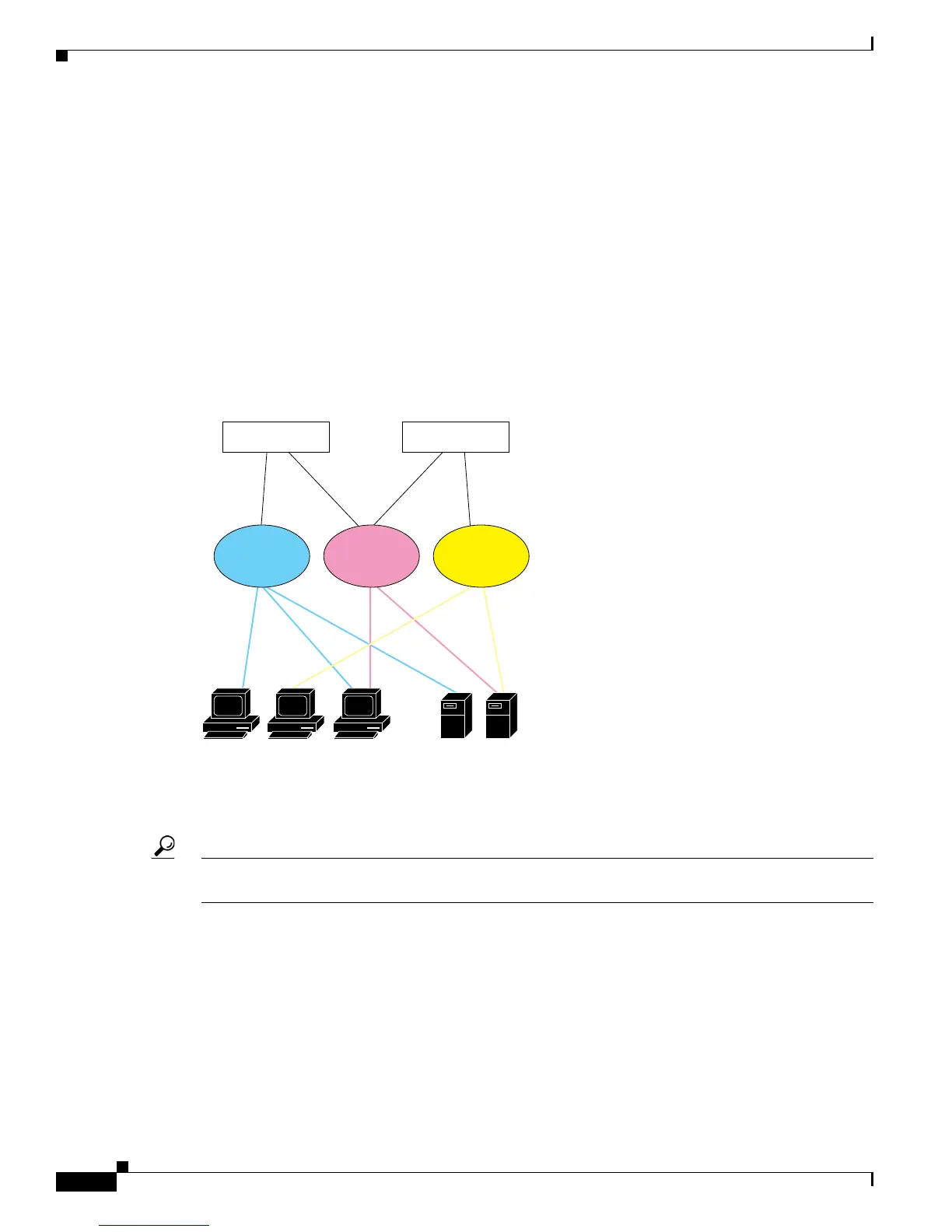

Figure 30-15 Hierarchy of Zone Sets, Zones, and Zone Members
Zones provide a mechanism for specifying access control, while zone sets are a grouping of zones to
enforce access control in the fabric. Either zone set A or zone set B can be activated (but not together).
Tip Zone sets are configured with the names of the member zones and the VSAN (if the zone set is in a
configured VSAN).
Zone 3
H2, S2
Zone 2
H3, S2
Zone 1
H1, H3, S1
Zone set A Zone set B
H1 H2 H3
S1 S2
