Send documentation comments to mdsfeedback-doc@cisco.com
48-5
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 48 Configuring FCIP
About FCIP
Fibre Channel PortChannels

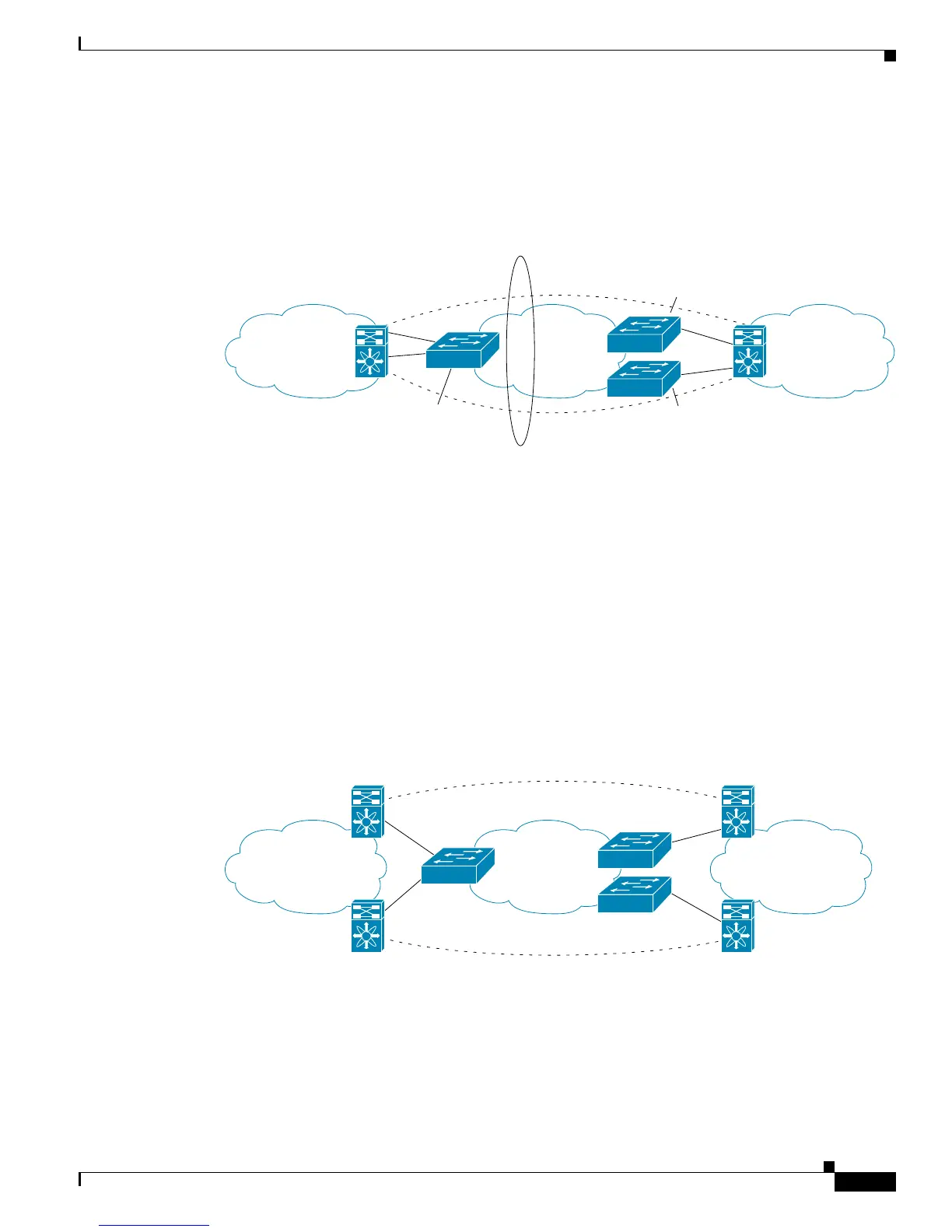

Figure 48-4 provides an example of a PortChannel-based load-balancing configuration. To perform this
configuration, you need two IP addresses on each SAN island. This solution addresses link failures.
Figure 48-4 PortChannel-Based Load Balancing
The following characteristics set Fibre Channel PortChannel solutions apart from other solutions:
• The entire bundle is one logical (E)ISL link.
• All FCIP links in the PortChannel should be across the same two switches.
• The Fibre Channel traffic is load balanced across the FCIP links in the PortChannel.
FSPF
Figure 48-5 displays a FPSF-based load balancing configuration example. This configuration requires
two IP addresses on each SAN island, and addresses IP and FCIP link failures.
Figure 48-5 FSPF-Based Load Balancing
The following characteristics set FSPF solutions apart from other solutions:
• Each FCIP link is a separate (E)ISL.
• The FCIP links can connect to different switches across two SAN islands.
• The Fibre Channel traffic is load balanced across the FCIP link.
FC fabric
IP
network
90857
PortChannel of
two FCIP links
FCIP link
FCIP link
FC fabric
Ethernet
switch
Ethernet
switch
Ethernet
switch
FC fabric
IP
network
90858
PortChannel of
two FCIP tunnels
FCIP link
FCIP link
FC fabric
