Send documentation comments to mdsfeedback-doc@cisco.com
30-12
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 30 Configuring and Managing Zones
Zone Configuration
Note Interface-based zoning only works with Cisco MDS 9000 Family switches. Interface-based zoning does
not work if interop mode is configured in that VSAN.
Configuring a Zone Using the Zone Configuration Tool
To create a zone and move it into a zone set using Fabric Manager, follow these steps:
Step 1 Click the Zone icon in the toolbar (See Figure 30-8).

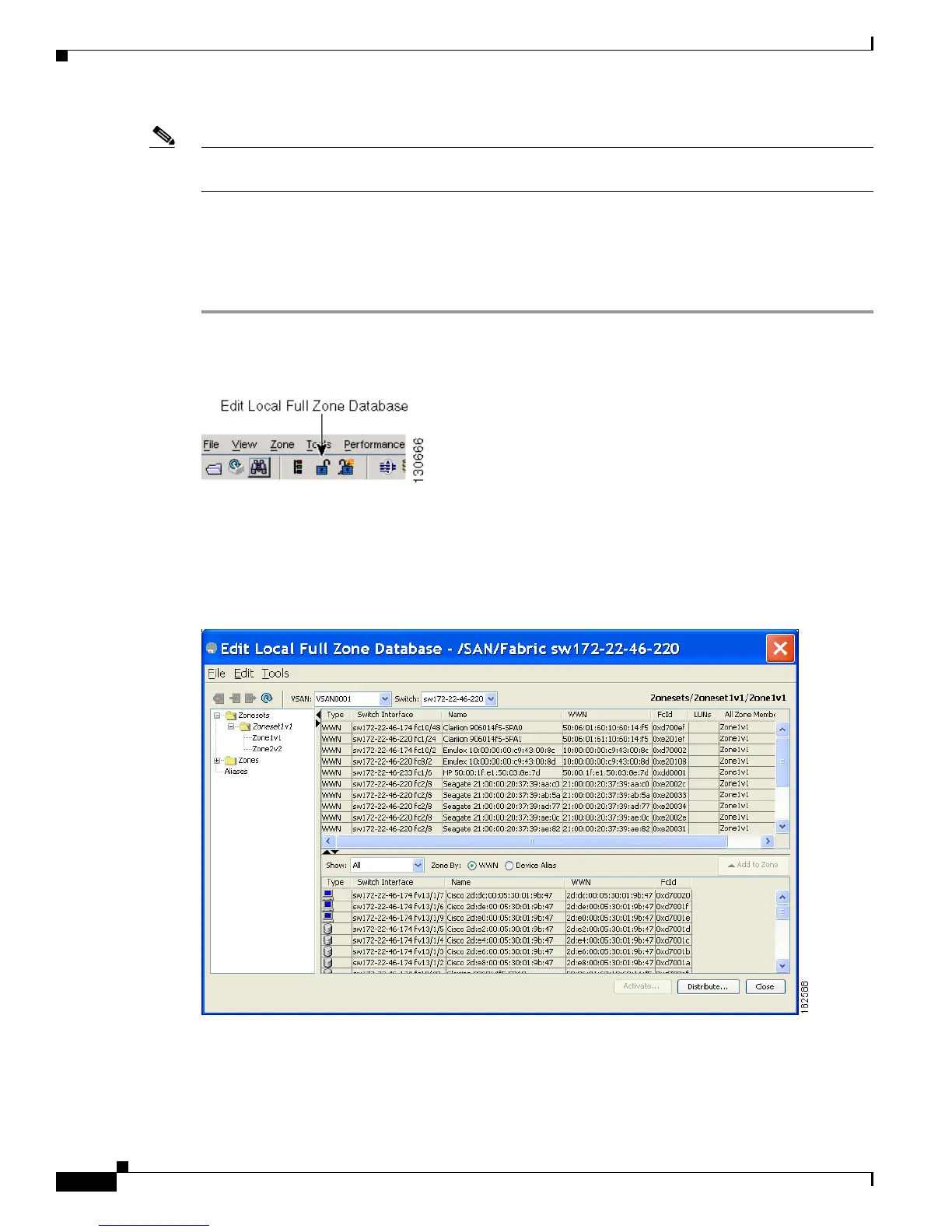

Figure 30-8 Zone Icon
You see the Select VSAN dialog box.
Step 2 Select the VSAN where you want to create a zone and click OK.
You see the Edit Local Full Zone Database dialog box shown in Figure 30-9.
Figure 30-9 Edit Local Full Zone Database Dialog Box
If you want to view zone membership information, right-click in the All Zone Membership(s) column,
and then click Show Details for the current row or all rows from the pop-up menu.
Step 3 Click Zones in the left pane and click the Insert icon to create a zone.
