7-36

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 7 Fabric Manager Web Client

Inventory

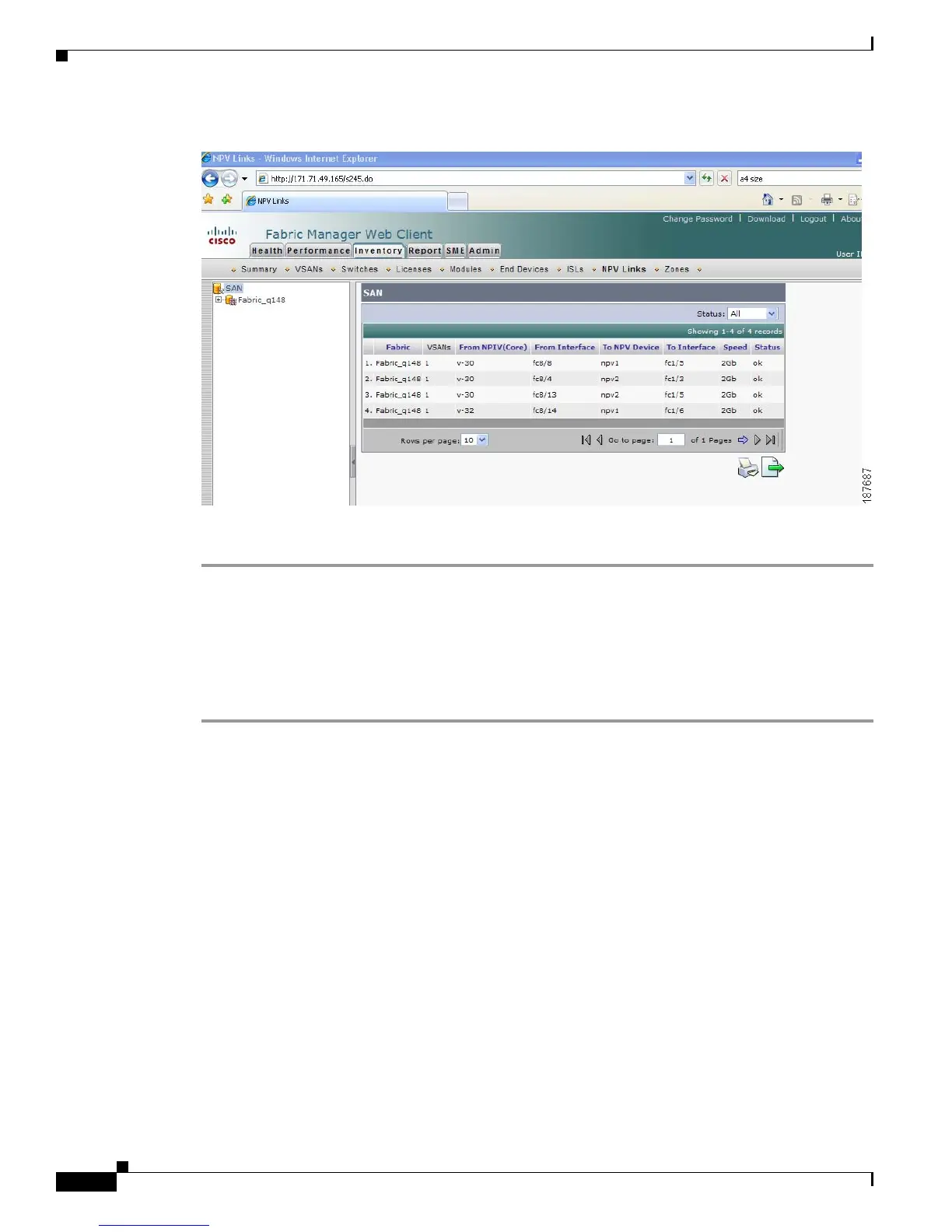

Figure 7-29 NPV Links

Step 2 Expand a fabric and select one of the VSANs to display NPV Links information for that VSAN.

Viewing Detailed Information for Zones

To view detailed inventory information about zones using Fabric Manager Web Client, follow these

steps:

Step 1 Click the Inventory tab, and then click Zones.

You see the Zones tab window as shown in Figure 7-30.
