Send documentation comments to mdsfeedback-doc@cisco.com
12-2
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 12 Initial Configuration
Verifying the Module Status
Step 3 Double-click the Logical Name of the switch you want to change in the Information pane.
You see the name highlighted with a blinking cursor next to it.

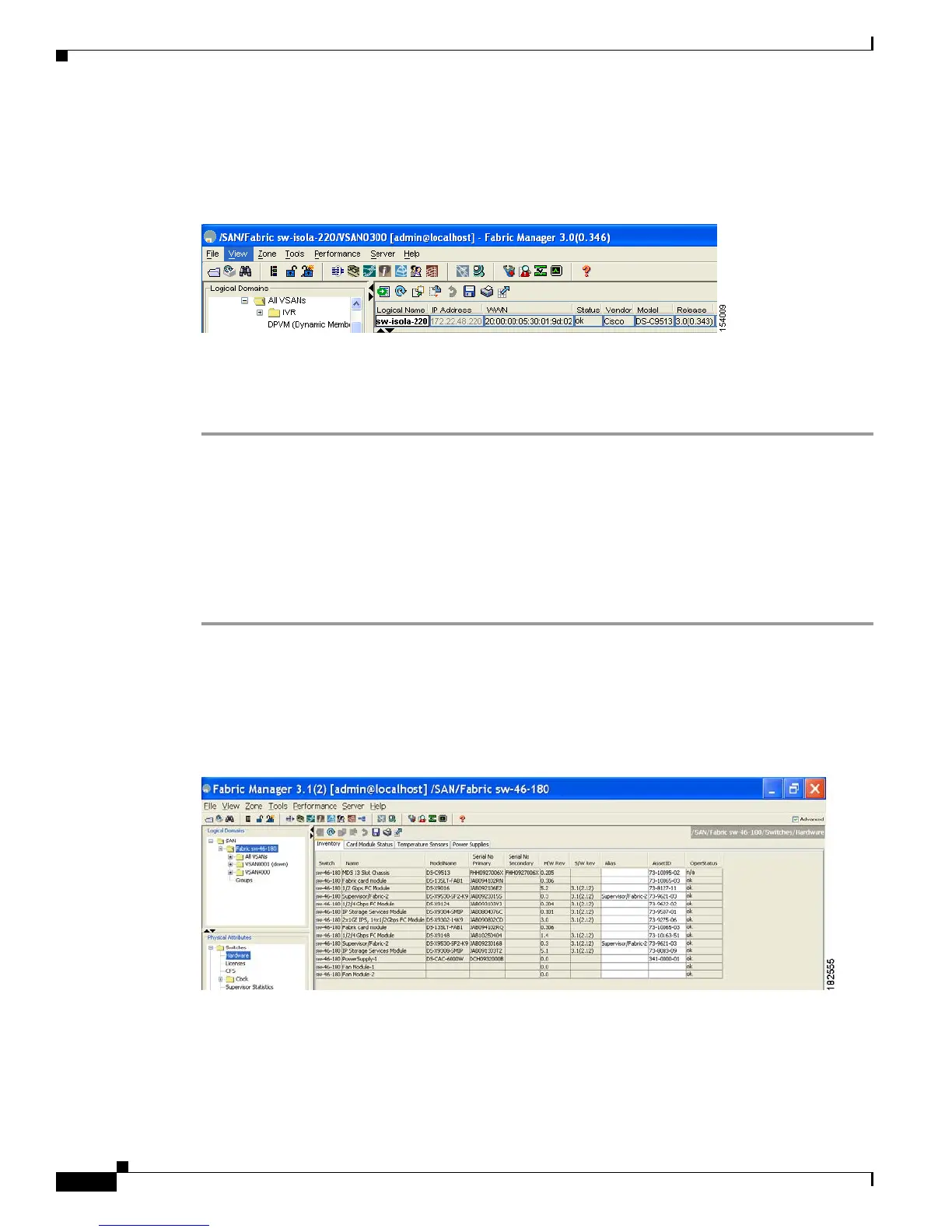

Figure 12-1 Changing the Logical Name of a Switch
Step 4
Type the new name of the switch (see Figure 12-1).
Step 5 Click the Apply Changes icon.
Step 6 Right-click the Fabric pane map and choose Refresh to see your changes.
.
Verifying the Module Status
Before you begin configuring the switch, you need to ensure that the modules in the chassis are
functioning as designed.
To verify the status of a module at any time, follow these steps:
Step 1 Expand SAN in the Logical Domains pane, then select a fabric or a VSAN from the Logical Domains
pane.
Step 2 Expand Switches and choose Hardware in the Physical Attributes pane.
You see the contents of the Inventory tab in the Information pane shown in Figure 12-2.
Figure 12-2 Inventory of a Selected Module
Step 3 Click the Card Module Status tab.
You see the status in the Oper Status column of each module in each switch of the SAN, fabric, or VSAN
you selected.
