Chapter 30 Configuring and Managing Zones
Advanced Zone Attributes
Configuring Zone-Based Traffic Priority
To configure the zone priority using Fabric Manager, follow these steps:
Step 1 Expand a VSAN and then select a zone set in the Logical Domains pane.
Step 2 Click the Policies tab in the Information pane.
You see the Zone policy information in the Information pane (see Figure 30-37).

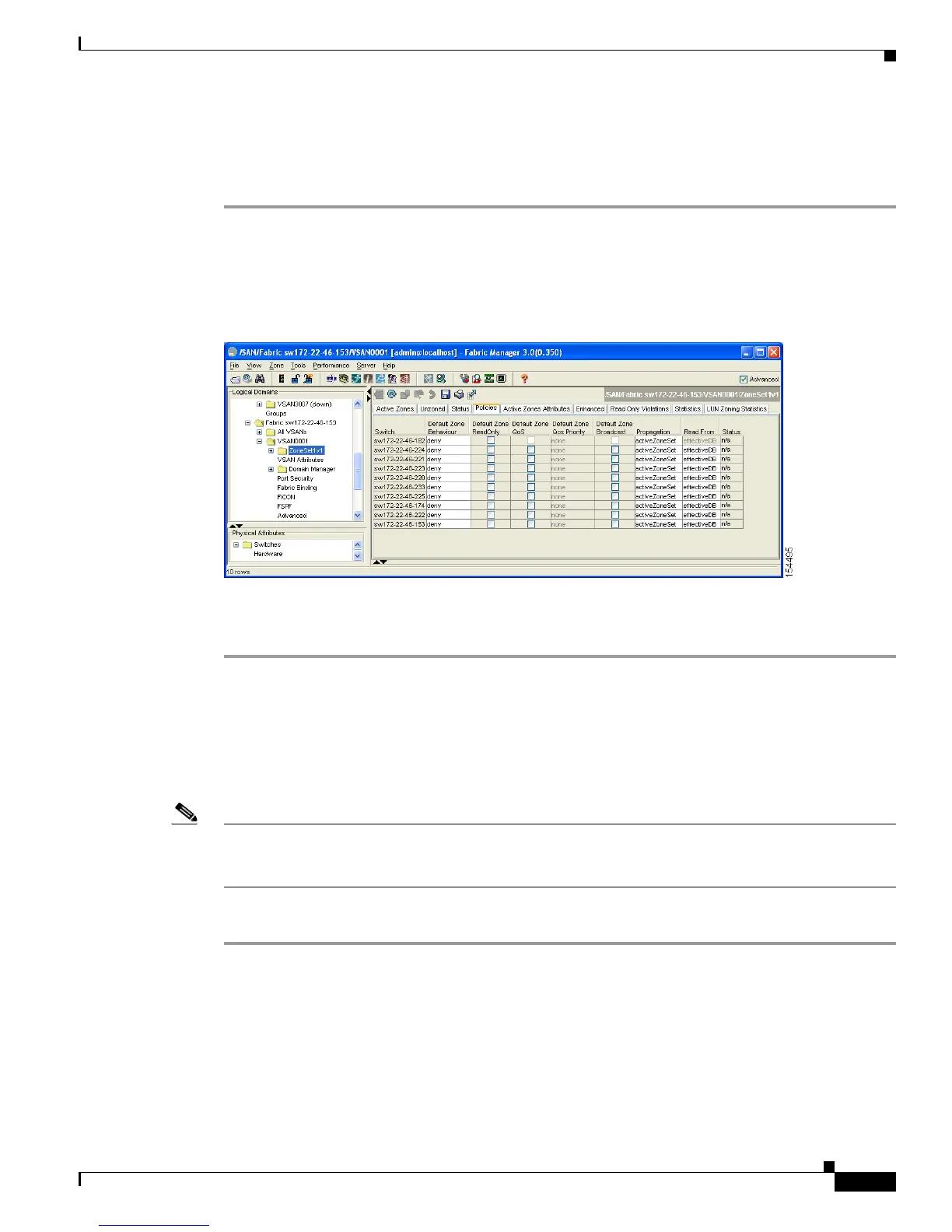

Figure 30-37 Zone Policies Tab in the Information Pane
Step 3
Use the check boxes and drop-down menus to configure QoS on the default zone.
Step 4 Click Apply Changes to save the changes.
Configuring Default Zone QoS Priority Attributes
QoS priority attribute configuration changes take effect when you activate the zone set of the associated
zone.
Note If a member is part of two zones with two different QoS priority attributes, the higher QoS value is
implemented. This situation does not arise in the VSAN-based QoS as the first matching entry is
implemented.
To configure the QoS priority attributes for a default zone using Fabric Manager, follow these steps:
Step 1 Choose Zone > Edit Local Full Zone Database.
You see the Select VSAN dialog box.
Step 2 Select a VSAN and click OK.
You see the Edit Local Full Zone Database dialog box for the selected VSAN.
Step 3 Choose Edit > Edit Default Zone Attributes to configure the default zone QoS priority attributes (see
Figure 30-38).
