Send documentation comments to mdsfeedback-doc@cisco.com

36-37

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 36 Configuring FICON

CUP In-Band Management

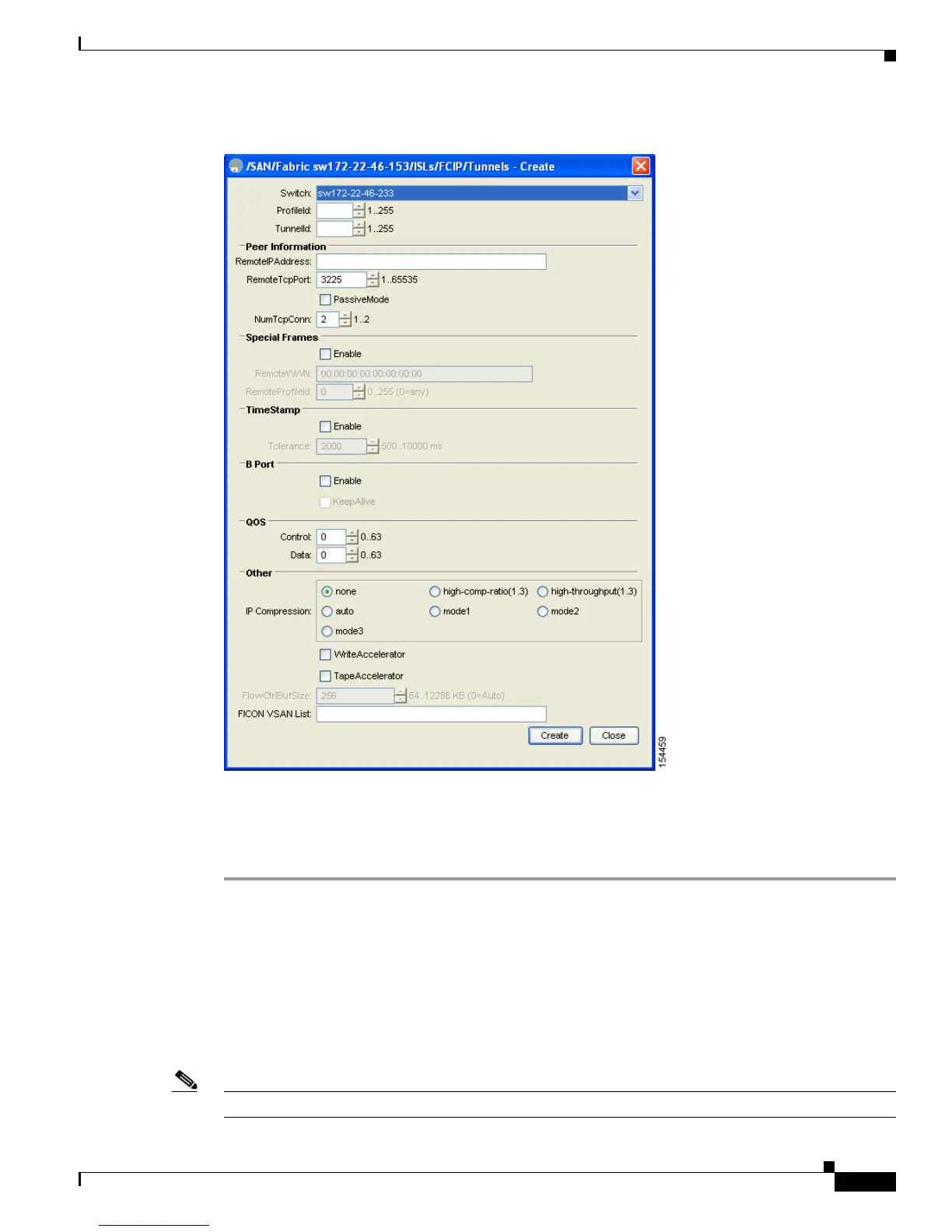

Figure 36-25 Create FCIP Tunnel Dialog Box

Step 4

Configure the tunnel with the options shown in Figure 36-25.

Step 5 Check the TapeAccelerator check box to enable FICON tape acceleration over this FCIP tunnel.

Step 6 Click Create.

CUP In-Band Management

The Control Unit Port (CUP) protocol configures access control and provides unified storage

management capabilities from a mainframe computer. Cisco MDS 9000 FICON-enabled switches are

fully IBM CUP standard compliant for in-band management using the IBM S/A OS/390 I/O operations

console.

Note The CUP specification is proprietary to IBM.
