Send documentation comments to mdsfeedback-doc@cisco.com
13-20
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 13 Using the CFS Infrastructure
CFS Example Using Fabric Manager

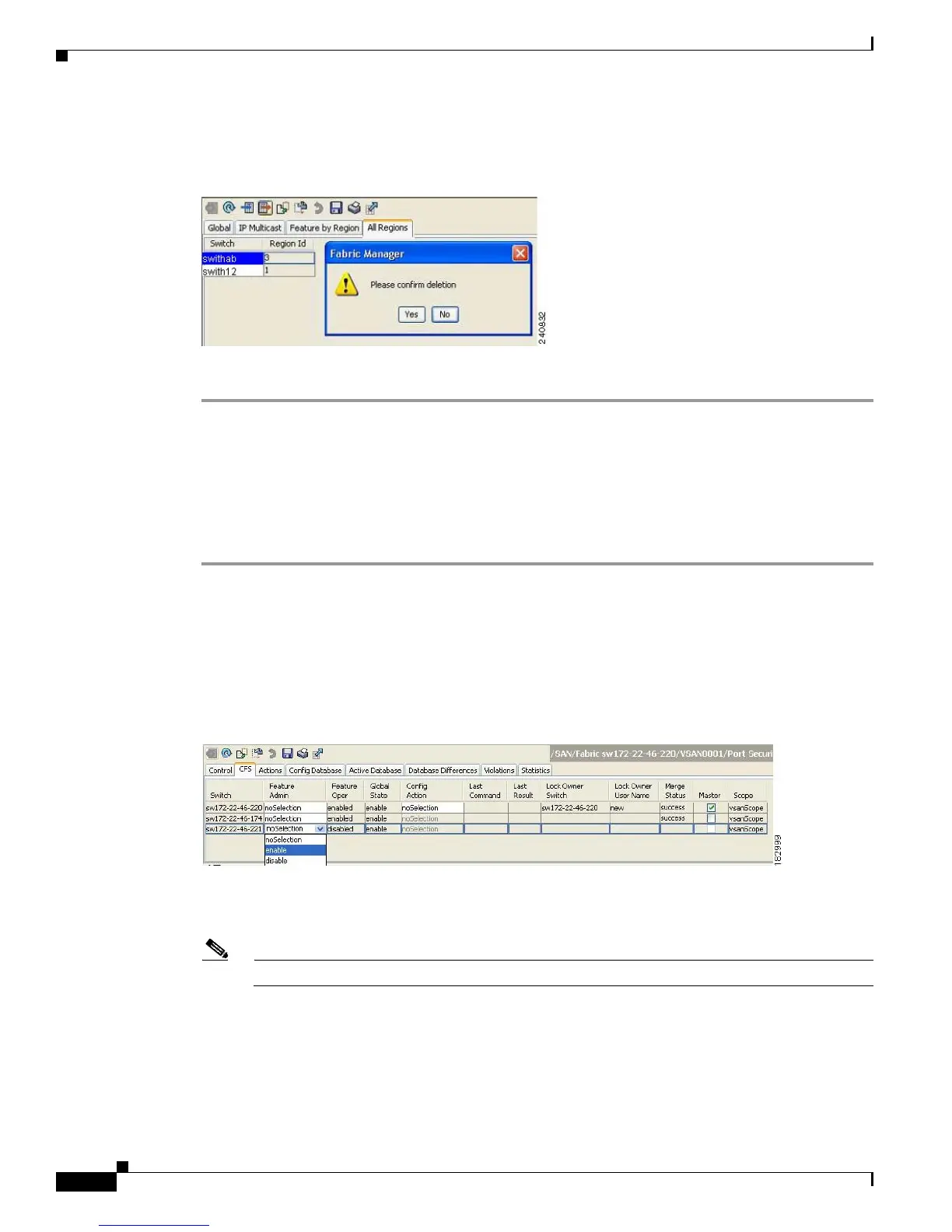

Figure 13-14 shows a confirmation dialog box.
Figure 13-14 Deleting CFS Regions
Step 3
Click Yes to confirm deletion of the region.
CFS Example Using Fabric Manager
This procedure is an example of what you see when you use Fabric Manager to configure a feature that
uses CFS.
Step 1 Select the CFS-capable feature you want to configure. For example, expand a VSAN, and then select
Port Security in the Logical Domains pane.
You see the port security configuration for that VSAN in the Information pane.
Step 2 Click the CFS tab.
You see the CFS configuration and status for each switch (see Figure 13-15).
Figure 13-15 CFS Configuration
Step 3
From the Feature Admin drop-down list, select enable for each switch.
Step 4 Repeat step 3 for all switches in the fabric.
Note A warning is displayed if you do not enable CFS for all switches in the fabric for this feature.
Step 5 Check the Master check box for the switch to act as the merge master for this feature.
Step 6 From the Config Action drop-down list, select commit Changes for each switch that you enabled for
CFS.
Step 7 Click the Servers tab in the Information pane.
