24-2
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 24 Configuring Trunking
About Trunking
Trunking E Ports
Trunking the E ports enables interconnect ports to transmit and receive frames in more than one VSAN,
over the same physical link, using enhanced ISL (EISL) frame format.

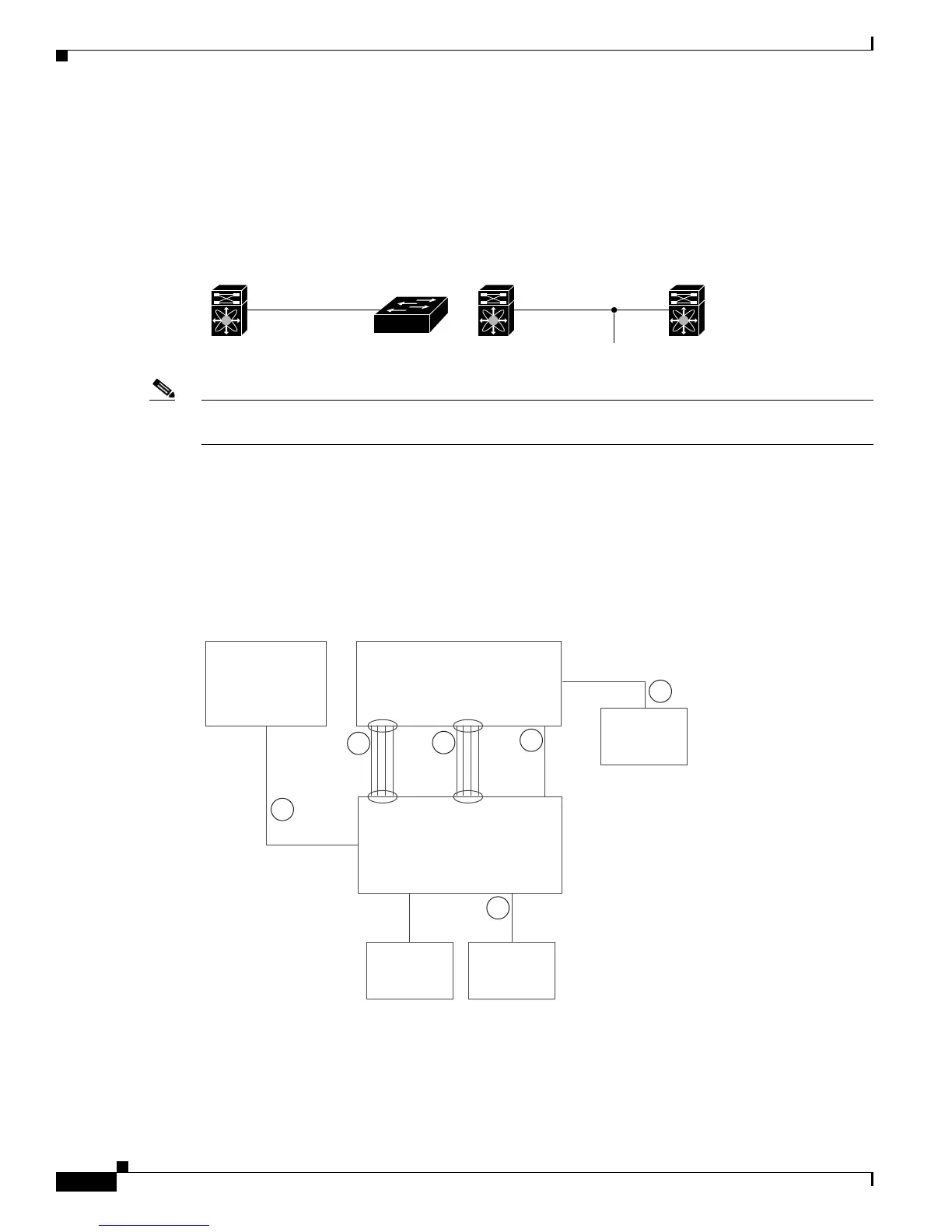

Figure 24-1 Trunking E Ports
Note Trunking is not supported by internal ports on both the Cisco Fabric Switch for HP c_Class BladeSystem
and the Cisco Fabric Switch for IBM BladeCenter.
Trunking F Ports
Trunking F ports allows interconnected ports to transmit and receive tagged frames in more than one
VSAN, over the same physical link. Figure 24-2 represents the possible trunking scenarios in a SAN
with MDS core switches, NPV switches, third-party core switches, and HBAs.
Figure 24-2 Trunking F Ports
Switch 1
Any other
switch
ISL
E port E port
Switch 1 Switch 2
EISL
TE port TE port
Trunking
79938
3rd party Core
Switch
MDS Core
Switch
EPP
EPP
EPP
NP TNP
TNP
TNP
F
TF
NTN
TN
HB A HB A
HB A
EVFP
EVFP
EVFP
TF TF TFF
1a
2
4
3
5
1b
NPV Switch
192090
