Send documentation comments to mdsfeedback-doc@cisco.com

36-39

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 36 Configuring FICON

Calculating FICON Flow Load Balance

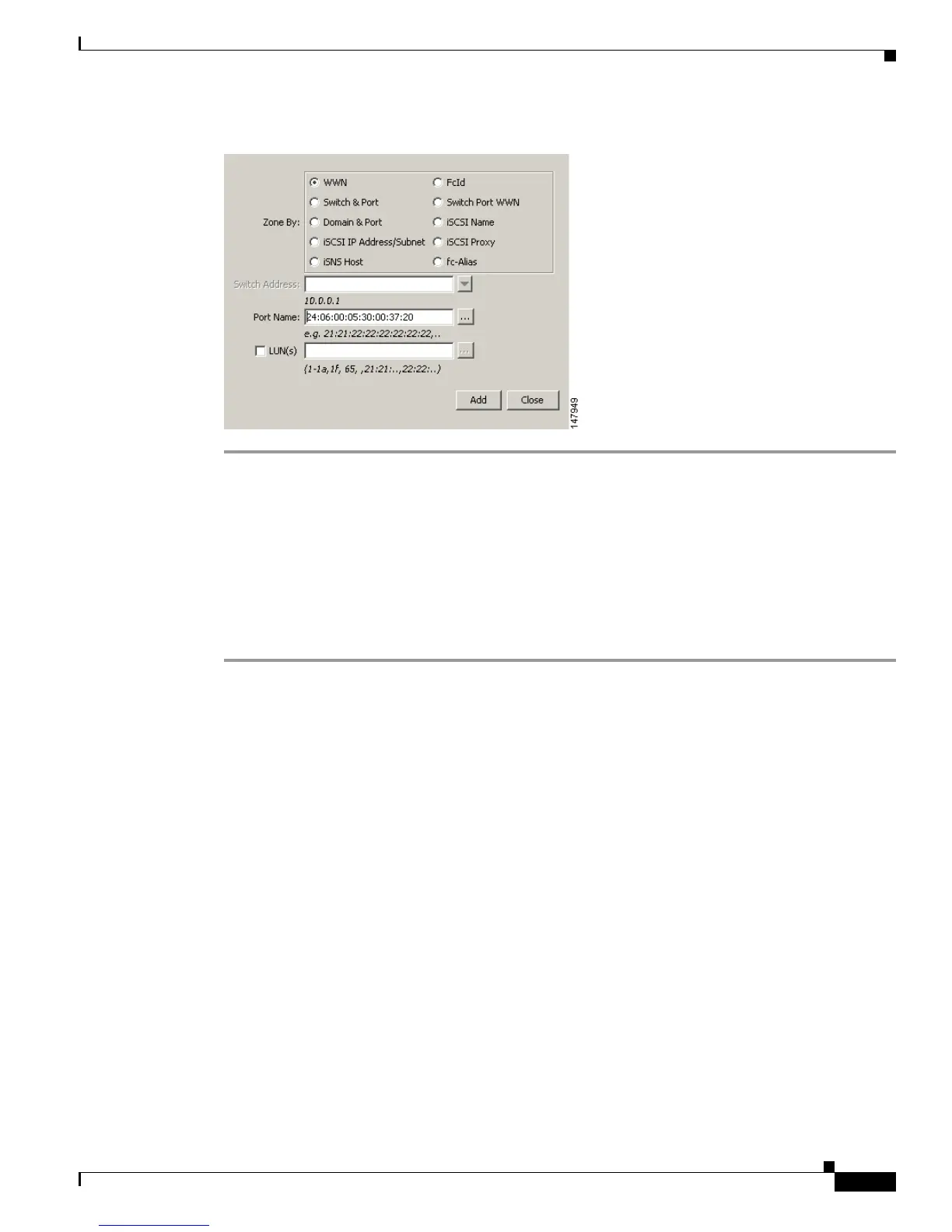

Figure 36-28 Adding FICON:CUP WWN to Zone

Calculating FICON Flow Load Balance

The FICON Flow Load Balance Calculator allows you to get the best load balancing configuration for

your FICON flows. The calculator does not rely on any switch or flow discovery in the fabric. It is

available from the Fabric Manager Tools menu.

To use the FICON Flow Load Balance Calculator from Fabric Manager, follow these steps:

Step 1 Choose Tools > Other > Flow Load Balance Calculator.

You see the Flow Load Balance Calculator (see Figure 36-29).
