Chapter 11 On-Demand Port Activation Licensing
About On-Demand Port Activation Licensing
Port-Naming Conventions
Table 11-1 describes the port-naming conventions for the four Cisco Fabric switches.
Port Licensing
On the Cisco MDS 9124 Switch, the first eight ports are licensed by default. You are not required to
perform any tasks beyond the default configuration unless you prefer to immediately activate additional
ports, make ports ineligible, or move port licenses.
Figure 11-1 shows the ports that are licensed by default for the Cisco MDS 9124 Switch.

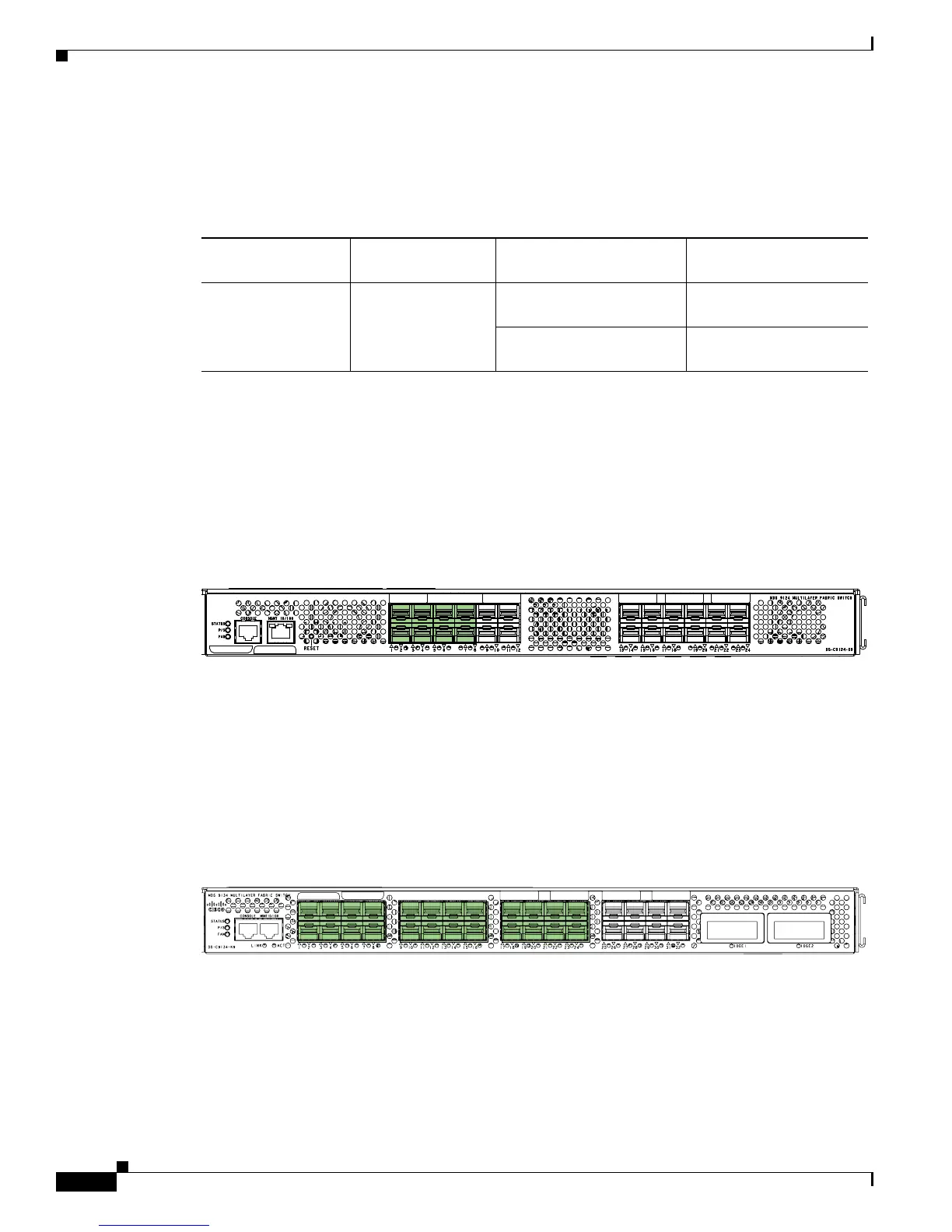

Figure 11-1 Cisco MDS 9124 Switch Default Port Licenses (fc1/1 - fc1/8)
If you need additional connectivity, you can activate additional ports in 8-port increments with each
on-demand port activation license, up to a total of 24 ports.
On the Cisco MDS 9134 Switch, the first 24 ports that can operate at 1 Gbps, 2 Gbps, or 4 Gbps are
licensed by default. If you need additional connectivity, you can activate the remaining eight ports with
one on-demand port activation license. A separate 10G license file is required to activate the remaining
two 10-Gbps ports.
Figure 11-2 shows the ports that are licensed by default for the Cisco MDS 9134 Switch.
Figure 11-2 Cisco MDS 9134 Switch Default Port Licenses (fc1/1 - fc1/24)
Figure 11-3 shows the external ports that are licensed by default for the Cisco Fabric Switch for HP
c-Class BladeSystem.
Table 11-1 Port-Naming Conventions for Cisco Fabric Switches
Cisco MDS 9124
Switch
Cisco MDS 9134
Switch
Cisco Fabric Switch for HP
c-Class BladeSystem
Cisco Fabric Switch for
IBM BladeCenter
fc1/1 through fc1/24 fc1/1 through fc1/34 Internal ports: bay1
through bay16
Internal ports: bay1
through bay14
External ports: ext1
through ext8
External ports: ext0 and
ext15 through ext19
