Chapter 32 Configuring Fibre Channel Routing Services and Protocols
FSPF Global Configuration
The LSR minimum arrival time is the period between receiving LSR updates on this VSAN. Any LSR
updates that arrive before the LSR minimum arrival time are discarded.
The LSR minimum interval time is the frequency at which this switch sends LSR updates on a VSAN.
Configuring FSPF on a VSAN
To configure an FSPF feature for the entire VSAN using Fabric Manager, follow these steps:
Step 1 Expand a Fabric, expand a VSAN and select FSPF for a VSAN that you want to configure for FSPF.
You see the FSPF configuration in the Information pane as shown in Figure 32-4.

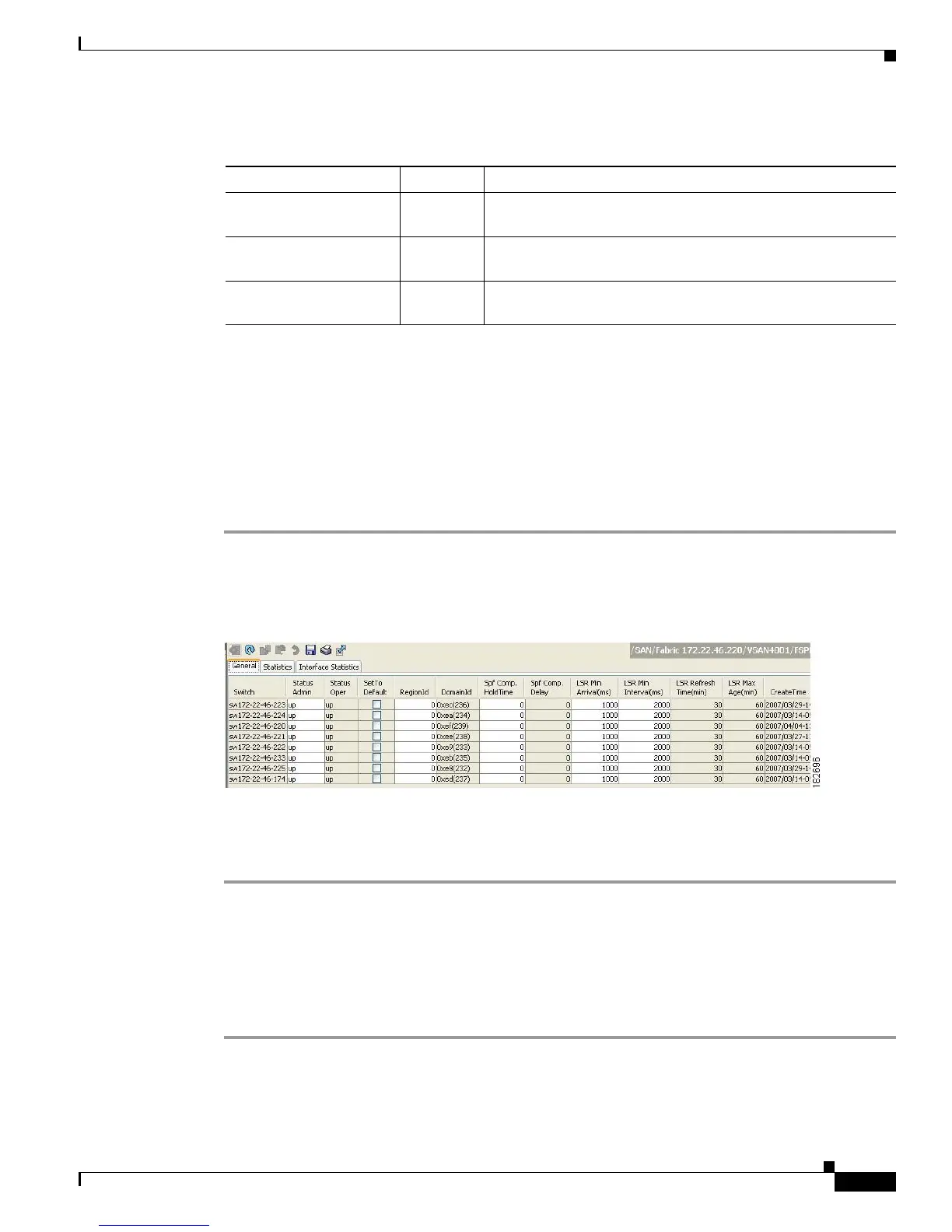

Figure 32-4 FSPF General Information
Step 2 The RegionID, Spf Comp Holdtime, LSR Min Arrival, and LSR Min Interval field values are applied
across all interfaces on the VSAN. You can change them here or, if they do not exist create them here.
Step 3 Click Apply Changes to save these changes, or click Undo Changes to discard any unsaved changes.
Resetting FSPF to the Default Configuration
To return the FSPF VSAN global configuration to its factory default using Fabric Manager, follow these
steps:
Step 1 Expand a Fabric, expand a VSAN and select FSPF for a VSAN that you want to configure for FSPF.
You see the FSPF configuration in the Information pane as shown in Figure 32-4.
Step 2 Check the SetToDefault check box for a switch.
Ta b l e 32-3 LSR Default Settings
LSR Option Default Description
Acknowledgment
interval (RxmtInterval)
5 seconds The time a switch waits for an acknowledgment from the LSR
before retransmission.
Refresh time
(LSRefreshTime)
30 minutes The time a switch waits before sending an LSR refresh
transmission.
Maximum age (MaxAge) 60 minutes The time a switch waits before dropping the LSR from the
database.
