Chapter 8 Performance Manager
Performance Manager Architecture

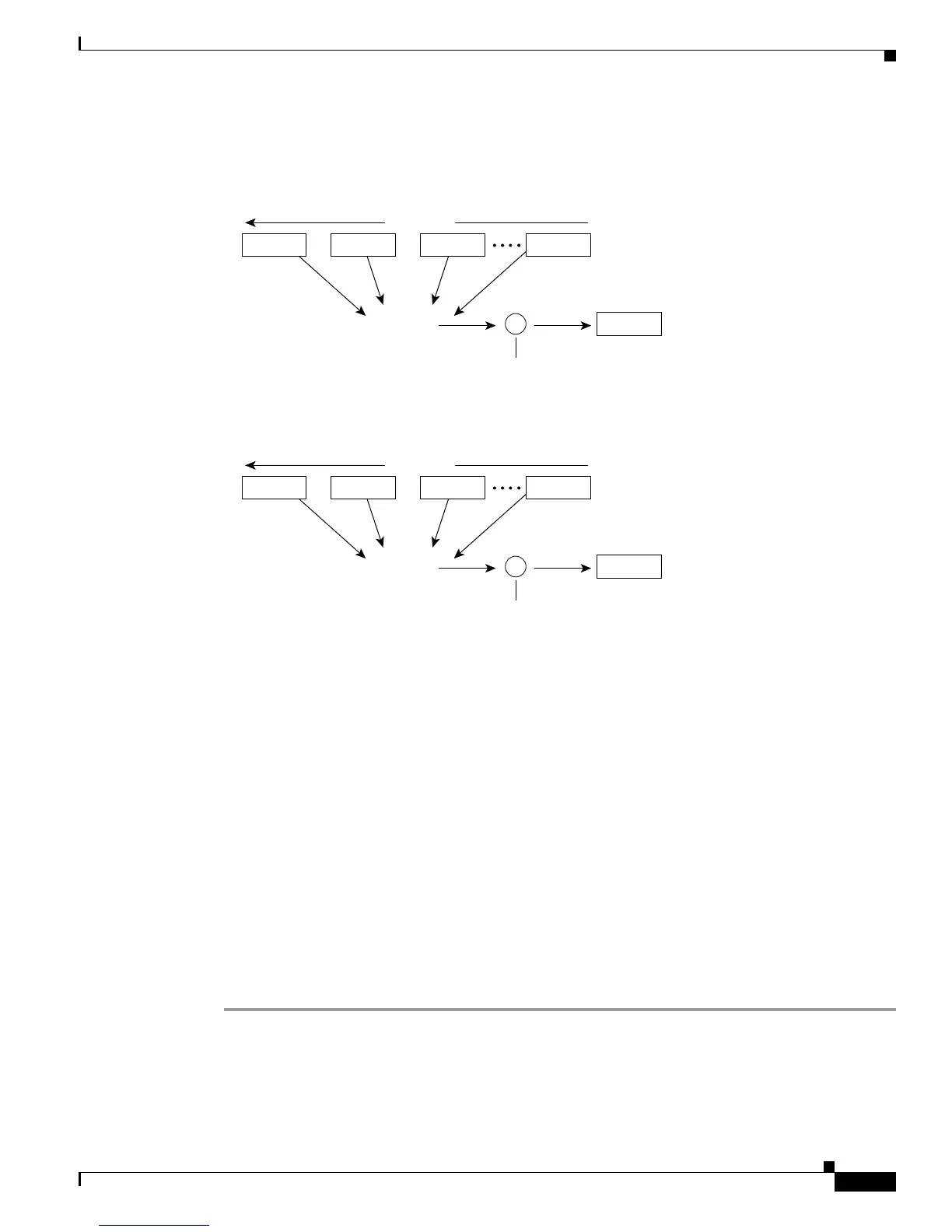

Figure 8-1 Baseline Threshold Example
The threshold is set for Monday at 2 p.m. The baseline threshold is set at 130% of the average for that
statistic. The average is calculated from the statistics value that occurred at 2 p.m. on Monday, for every
prior Monday (for the weekly option) or the statistics value that occurred at 2 p.m. on each day, for every
prior day (for the daily option).
Flow Setup Wizards
The Performance Manager Flow and Performance Manager Setup wizards greatly simplify
configuration. All you need to do is select the categories of statistics to capture and the wizards provide
a list of flows and links to monitor. You can remove entries if desired, or just accept the provided list and
start data collection. Statistics for host and storage links are not associated with a specific port on a
switch, so you do not lose long term statistics if a connection is moved to a different port.
Creating a Flow Using Flow Configuration Wizard
To create a flow using Fabric Manager, follow these steps:
Step 1 Choose Performance > Create Flows.
You see the Define Traffic Flows dialog box as shown in Figure 8-2.
Mon 2/14 Tues 2/15 Wed 2/16 Sun 2/27
Mon 2/28
@2 PM
@2 PM
Average X
Daily (option)
Threshold
setting
14 days
Percent over baseline (e.g. 130%)
Mon 1/3 Mon 1/10 Mon 1/17 Mon 2/21
Mon 2/28
@2 PM
@2 PM
Average X
Weekly (option)
Threshold
setting
Two thresholds per throughput
statistic - updated hourly
8 weeks
Percent over baseline (e.g. 130%)
