Chapter 59 Configuring RMON
Create RMON Alarms in Fabric Manager
Enabling 32-Bit and 64-Bit RMON Alarms for Physical Components
To configure an RMON alarm for a physical component for a 64-bit alarm using Device Manager, follow
these steps:
Step 1 Choose Admin > Events > Threshold Manager and click the Physical tab.
You see the Threshold Manager dialog box with the Physical tab for the 64-bit alarm selected as shown
in
Figure 59-9.

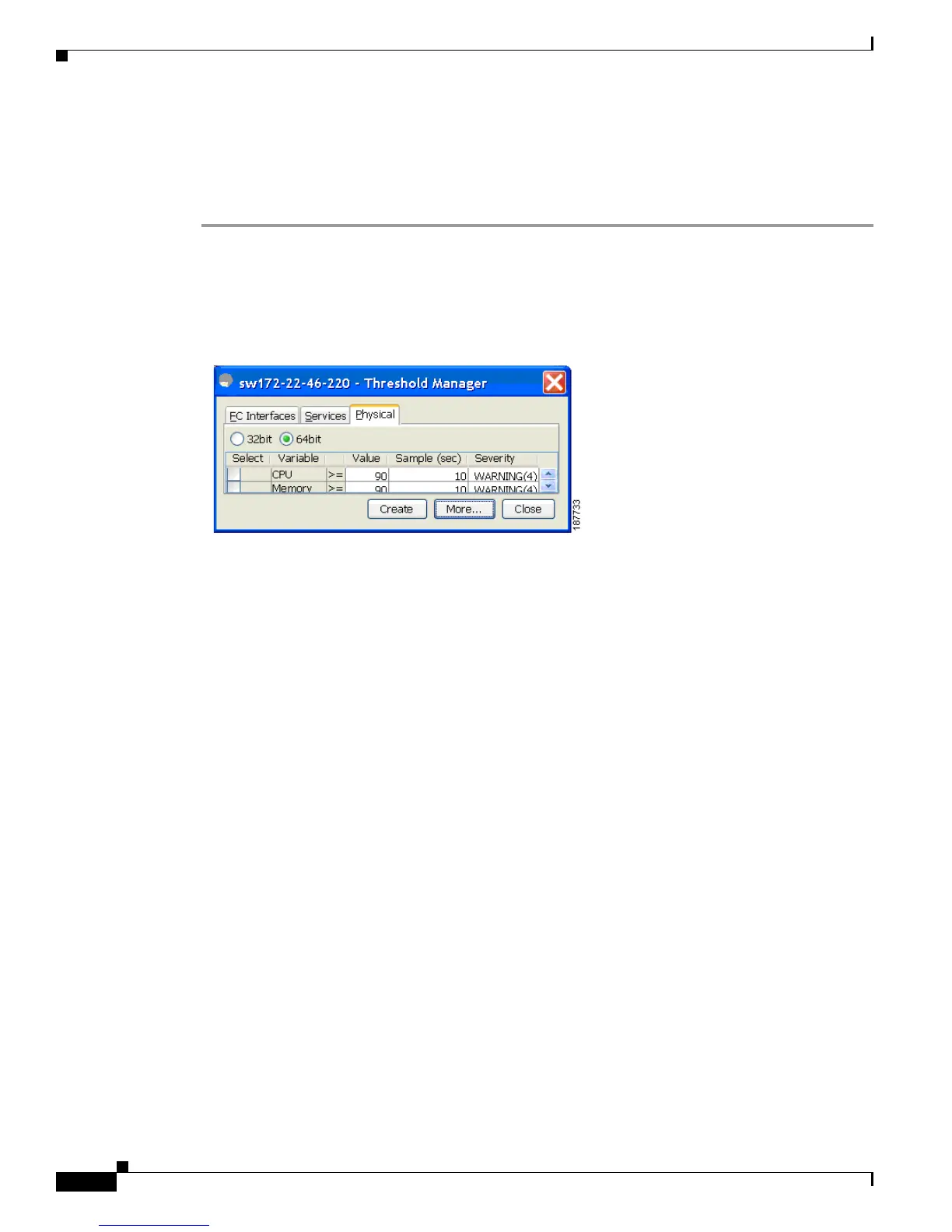

Figure 59-9 Physical Tab for the 64-Bit Alarm
Step 2 Check the check box in the Select column for each variable to monitor.
Step 3 Enter the threshold value in the Value column.
Step 4 Enter the sampling period in seconds.
Step 5 Choose one of the following severity levels to assign to the alarm: Fatal(1), Warning(2), Critical(3),
Error(4), Information(5).
Step 6 Click Create.
Step 7 Confirm the operation to define an alarm and a log event when the system prompts you to define a
severity event.
If you do not confirm the operation, the system only defines a log event.
Step 8 Click More, then click the 64-bit Alarms tab in the Threshold Manager dialog box to verify the alarm
you created (see
Figure 59-10).
