Chapter 5 Fabric Manager Client
Fabric Manager Client Quick Tour: Server Admin Perspective

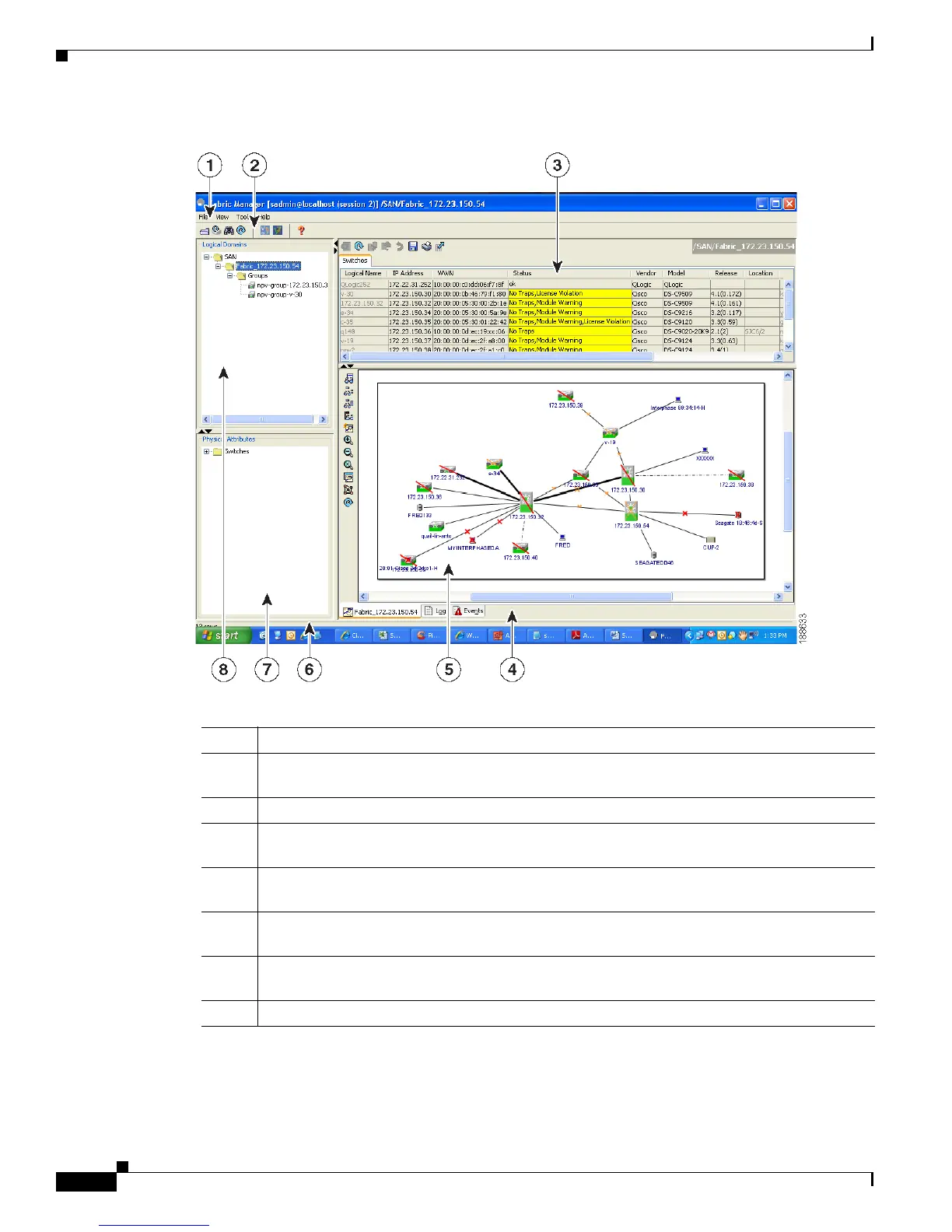

Figure 5-7 Fabric Manager Main Window: Server Admin Perspective
1 Menu bar—Provides access to options that are organized by menus.
2 Toolbar—Provides icons for direct access to the most commonly used options on the File,
Tools, and Help menus.
3 Information pane—Displays information about whatever option is selected in the menu tree.
4 Status Bar (right side)—Shows the last entry displayed by the discovery process and the
possible error message.
5 Fabric pane—Displays a map of the network fabric, including switches, hosts, and storage. It
also provides tabs for displaying log and event data.
6 Status Bar (left side)—Shows short-term transient messages, such as the number of rows
displayed in a table.
7 Physical Attributes pane—Displays a tree of available configuration tasks depending on the
fabric, VSAN, or zone selected previously. Lists the switches in the logical selection.
8 Logical Domains pane—Displays a tree of configured SAN, fabrics and user-defined groups.
