Chapter 66 Troubleshooting Your Fabric
Analyzing the Results of Merging Zones
Step 3 Select the VSAN for which to verify connectivity from the VSAN drop-down list.
Step 4 Select the target end port for which to verify connectivity from the Target Endport drop-down list.
Step 5 Click Start to perform the traceroute between your switch and the selected port.
You see the results at the bottom of the dialog box as shown in Figure 66-5.

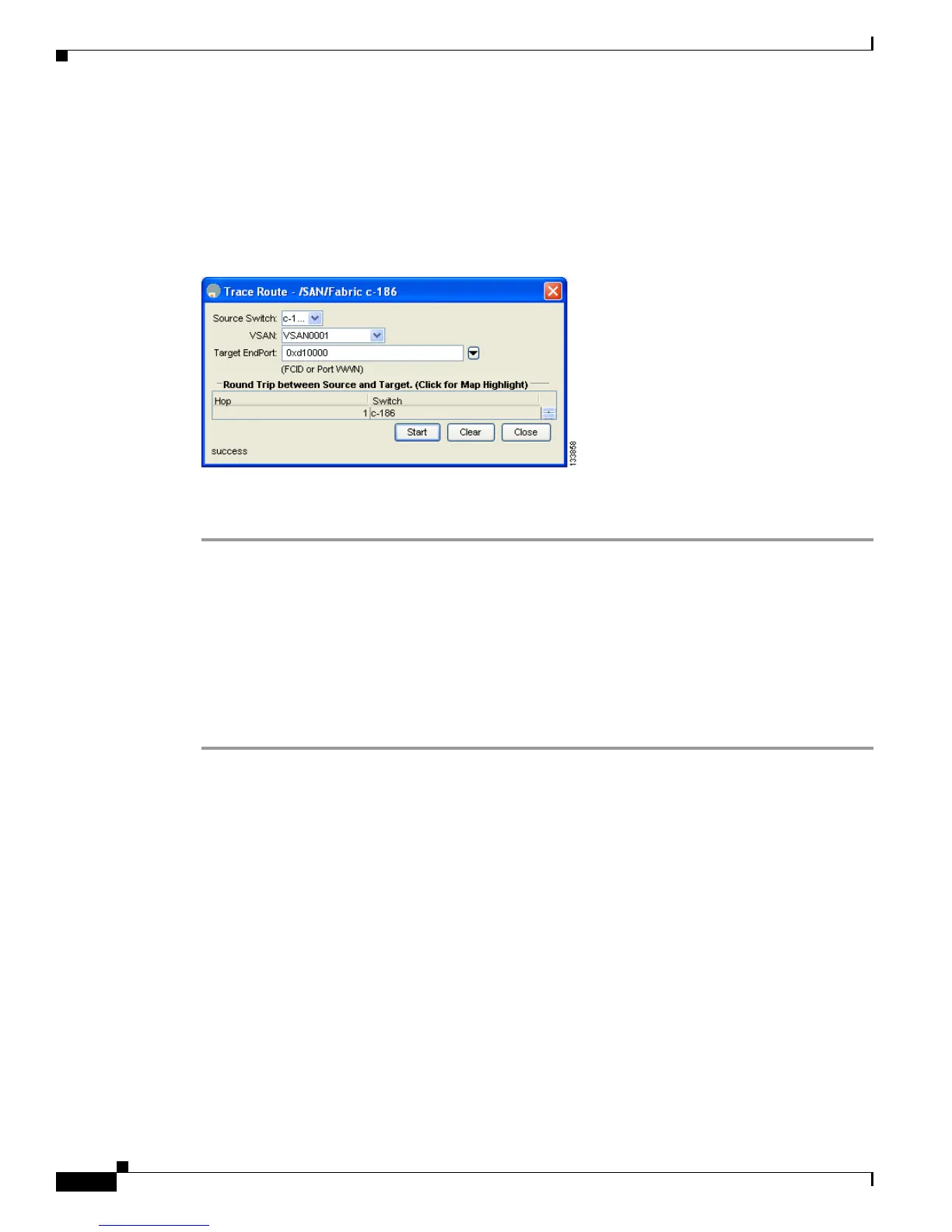

Figure 66-5 Successful Trace Route Results
Step 6 Click Clear to clear the contents of the window and perform another traceroute, or click Close to close
the window.
Analyzing the Results of Merging Zones
You can use the Zone Merge option on the Zone menu to determine if two connected switches have
compatible zone configurations.
To use the Zone Merge option in Fabric Manager to determine zone configuration compatibility, follow
these steps:
Step 1 Choose Zone > Merge Analysis.
You see the Zone Merge Analysis dialog box.
Step 2 Select a switch from each drop-down list.
Step 3 Select the VSAN for which you want to perform the zone merge analysis.
Step 4 Repeat Step 3 as needed.
Step 5 Click Analyze.
The Zone Merge Analysis window displays any inconsistencies between the zone configuration of the
two selected switches as shown in
Figure 66-6.
