Send documentation comments to mdsfeedback-doc@cisco.com
29-20
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 29 Configuring Inter-VSAN Routing
Manual IVR Configuration
Step 1 Expand All VSANs and then select IVR in the Logical Domains pane.
You see the IVR configuration in the Information pane.

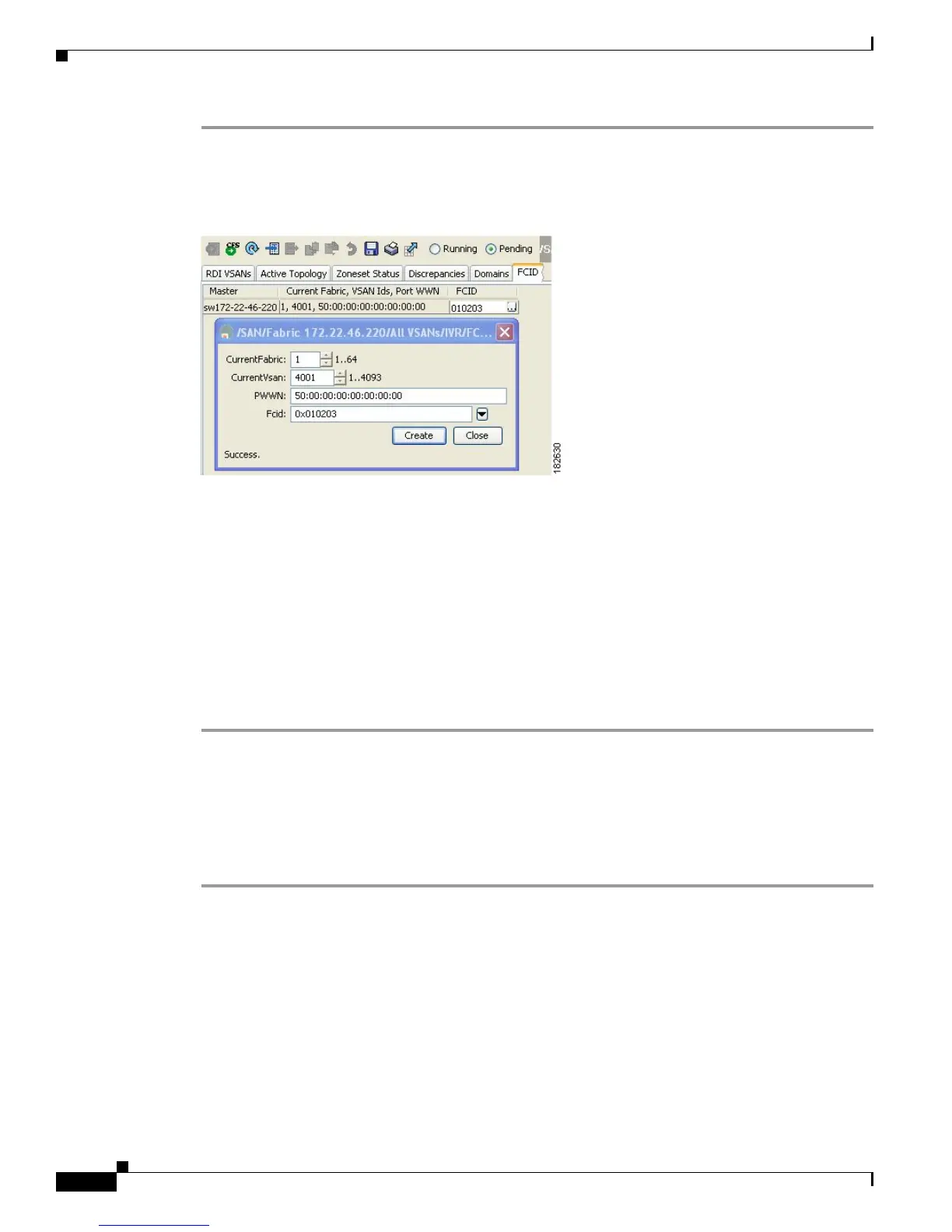

Figure 29-12 FCID Tab
Step 2 Click the FCID tab.
Step 3 Click the Create Row icon to create an FC ID (see Figure 29-12).
Step 4 Select the switch for which you are configuring the virtual FC ID to be used to represent a device in a
specific VSAN (current VSAN).
Step 5 Enter the current fabrc in the Current Fabric ID field for the fcdomain database.
Step 6 Enter the current VSAN in the Current VSAN ID field for the fcdomain database.
Step 7 Enter the pWWN.
Step 8 Click the drop-down menu to select the FC ID to map to the pWWN you selected.
Step 9 Click Create to create this new row.
Configuring IVR Logging Levels
To configure the severity level for logging messages from the IVR feature using Fabric Manager, follow
these steps:
Step 1 Expand Switches > Events and then select Syslog from the Physical Attributes pane.
Step 2 Click the Severity Levels tab.
Step 3 Click the Facility column header to sort the table by facility name.
Step 4 Select the severity level at which the IVR logs system messages from the Severity drop-down menu (see
Figure 29-13).
