• When the secondary device is active, if you link to a third device, and if the fallback attribute was
configured, then the third device becomes the primary device as well as the active device.
To link a virtual target with a physical target using Fabric Manager, follow these steps:
Step 1 Click the Real Devices tab and then click the Create Row icon.
Step 2 Select the Virtual Device ID from the pull-down list or enter an existing ID for the virtual target that you
are linking with a physical target(see Figure 27-9).
Step 3 Select the Real Device ID of the physical target that you are linking with the virtual target.
Figure 27-9 Create Real Devices Dialog Box
Step 4 Choose either the pWWN or deviceAlias radio button, and select the appropriate pWWN or device alias
from the pull-down menu. Note that the Name field is automatically populated when you select the
pWWN or device alias.
Step 5 Choose either the primary or secondary radio button for the Map Type.
Step 6 Click the CFS icon to save and distribute these changes, or click Close to discard any unsaved changes.
Resolving Fabric Merge Conflicts
Whenever two fabrics merge SDV merges its database. A merge conflict can occur when there is a
run-time information conflict or configuration mismatch. Run-time conflicts can occur due to:
• Identical pWWNs being assigned to different virtual devices
• The same virtual devices are assigned different pWWNs.
• The virtual device and virtual FC ID are mismatched.
159901

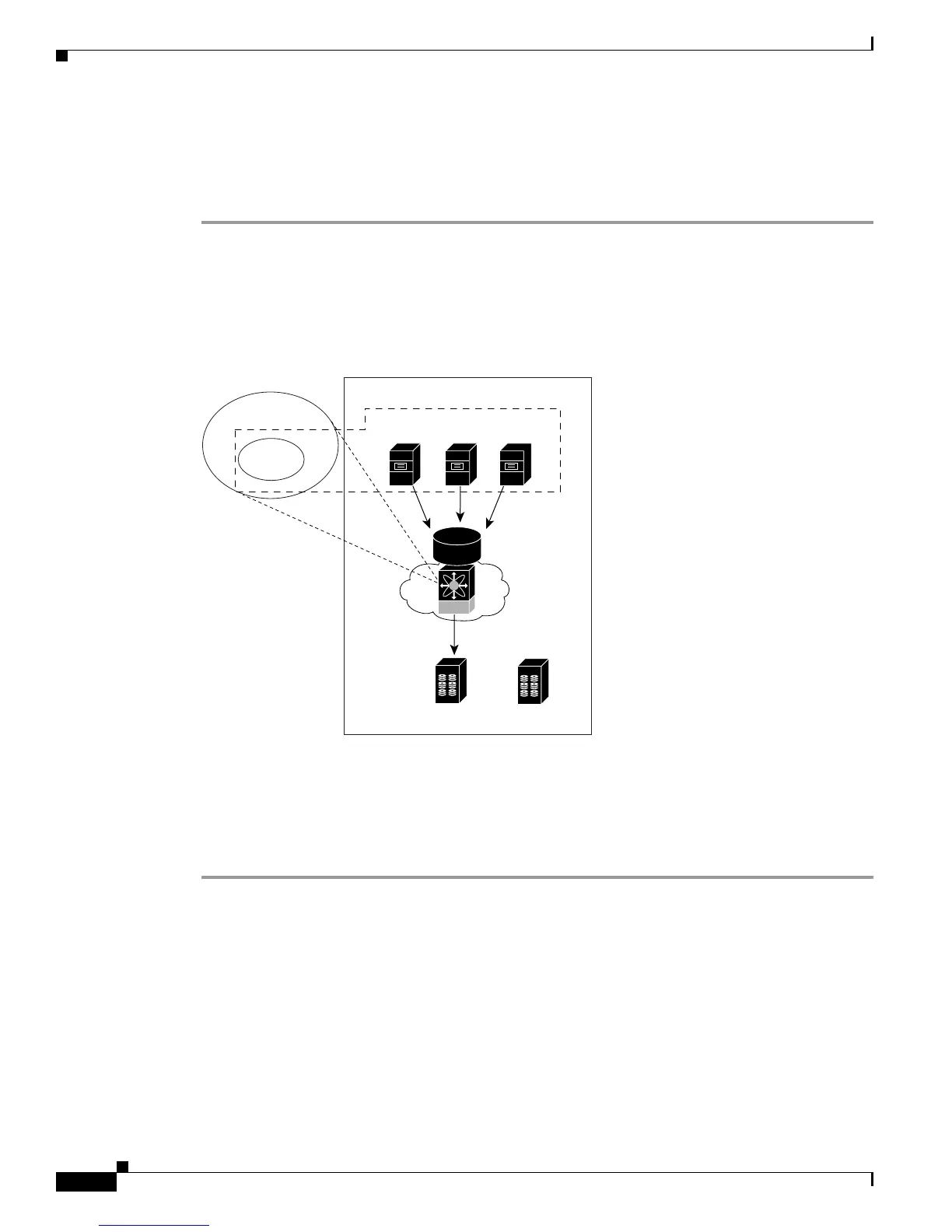

Primary
Secondary
Virtual
Device
SAN Device
Virtualization
SAN Device Virtualization Zone
vtpwwn
vt1
t2pwwn
t2
t1pwwn
t1
i1pwwn
i1
i2pwwn
i2
i3pwwn
i3
