Chapter 7 Fabric Manager Web Client
Performance
Viewing Performance Information for NPV Links
To view traffic between NPV devices and ports using Fabric Manager Web Client, follow these steps:
Step 1 Click the Performance tab, and then click NPV Links.

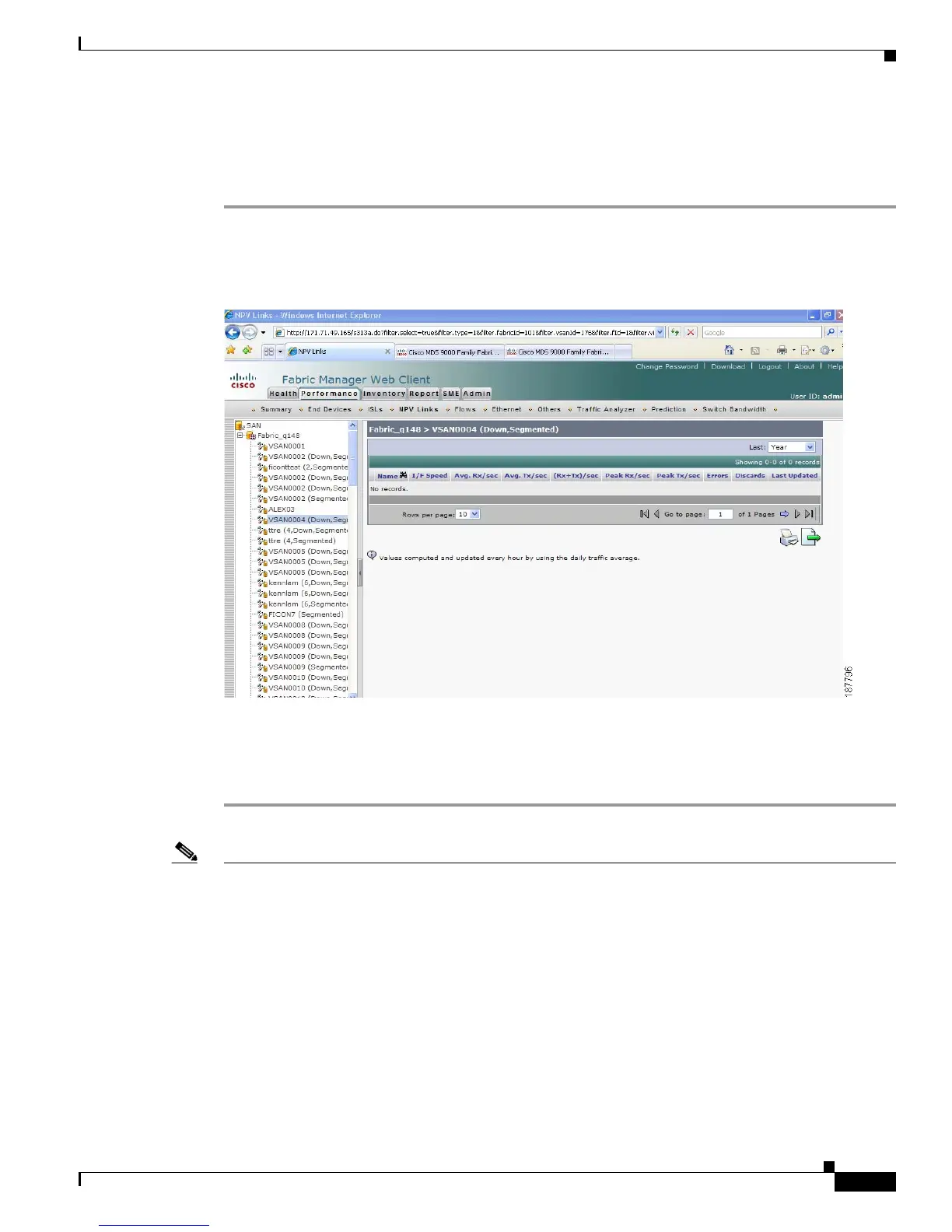

You see the NPV Links tab window shown in Figure 7-14
Figure 7-14 NPV Links Tab
Step 2
Expand a fabric and select one of the VSANs to display performance information for the NPV Links in
that VSAN.
Step 3 Click the name of an NPV Link from the Name column to see a list of the traffic for the past 24 hours.
Note There are variations to this procedure. In addition to the basic steps described above, you can also
perform the following steps to view detailed information for NPV Links:
• You can change the time range for this information by selecting it from the drop-down list in the
upper right corner.
• To view the detailed information for specific period, drag the slider control to choose the time
interval for which you need the information.
• To view information in grid format, click the grid icon in the bottom right corner.
• To export the data into a spreadsheet, click the excel icon in the upper right corner and then click
Save.
• To view real time information, select Real Time from the drop-down list in the upper right corner.
Real time data is updated in every 10 seconds.
