Send documentation comments to mdsfeedback-doc@cisco.com
5-24
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 5 Fabric Manager Client
Fabric Manager Client Quick Tour: Admin Perspective
Note After making changes, you must save the configuration or the changes will be lost when the device is
restarted.
Note The buttons that appear on the toolbar vary according to the option that you select. They are activated or
deactivated (dimmed) according to the field or other object that you select in the Information pane.
Detachable Tables
Detachable tables in Fabric Manager allow you to detach tables and move them to different areas on your
desktop so that you can compare similar tables from different VSANs. You can keep informational tables
open from one view while you examine a different area in Fabric Manager. To detach tables, click the
Detach Table icon in the Information pane in Fabric Manager.
Fabric Pane
Use the Fabric pane to display the graphical representation of your fabric. Table 5-5 explains the
graphics you may see displayed, depending on which devices you have in your fabric.

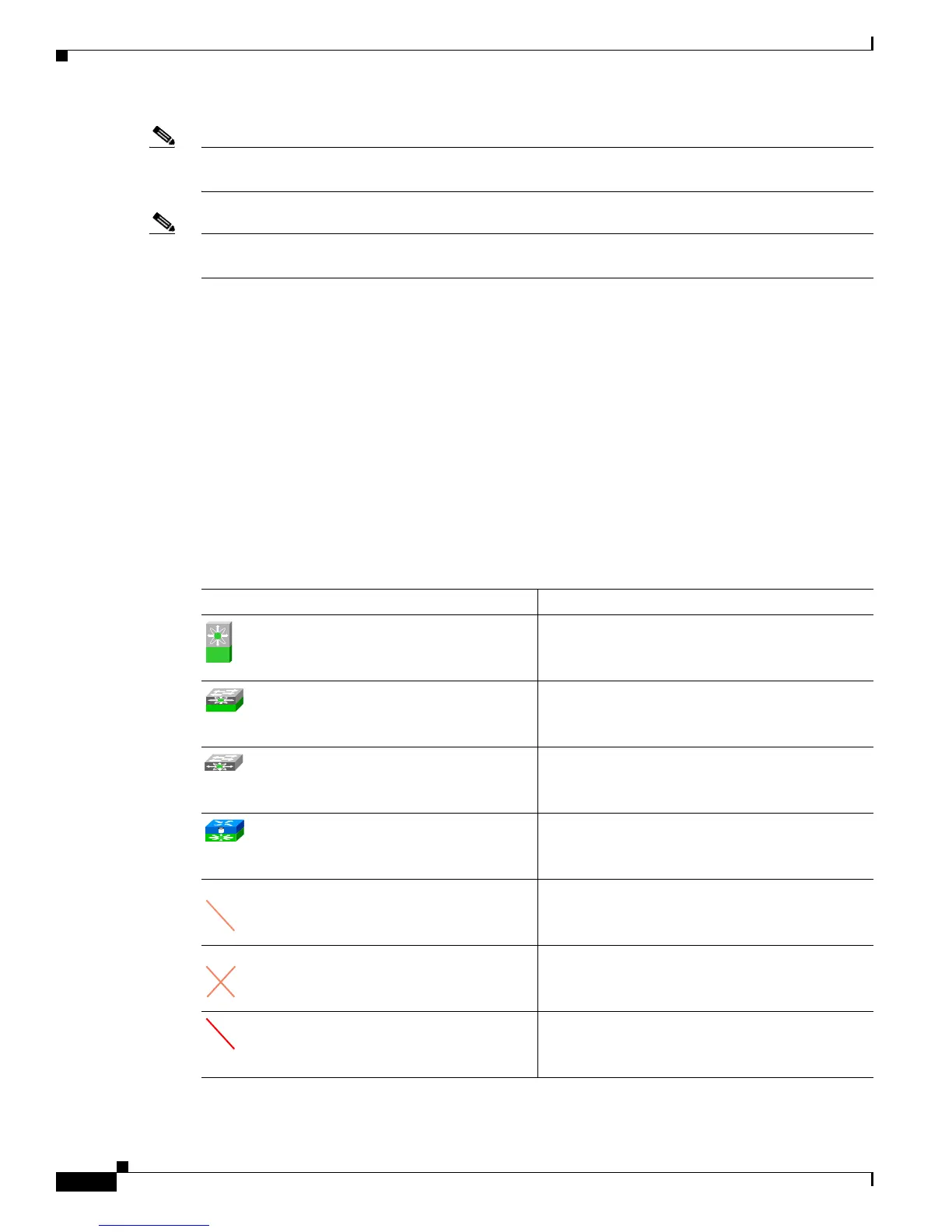

Ta b l e 5-5 Fabric Manager Graphics
Icon or Graphic Description
Director class MDS 9000.
Non-director class MDS 9000.
Generic Fibre Channel switch.
Cisco SN5428.
Dashed or dotted orange line through a device
indicates that the device is manageable but there
are operational problems.
Dashed or dotted orange X through a device or
link indicates that the device or ISL is not working
properly.
A red line through a device indicates that the
device is not manageable.
iSAN
