49-5
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 49 Configuring the SAN Extension Tuner
Using the SAN Extension Tuner Wizard

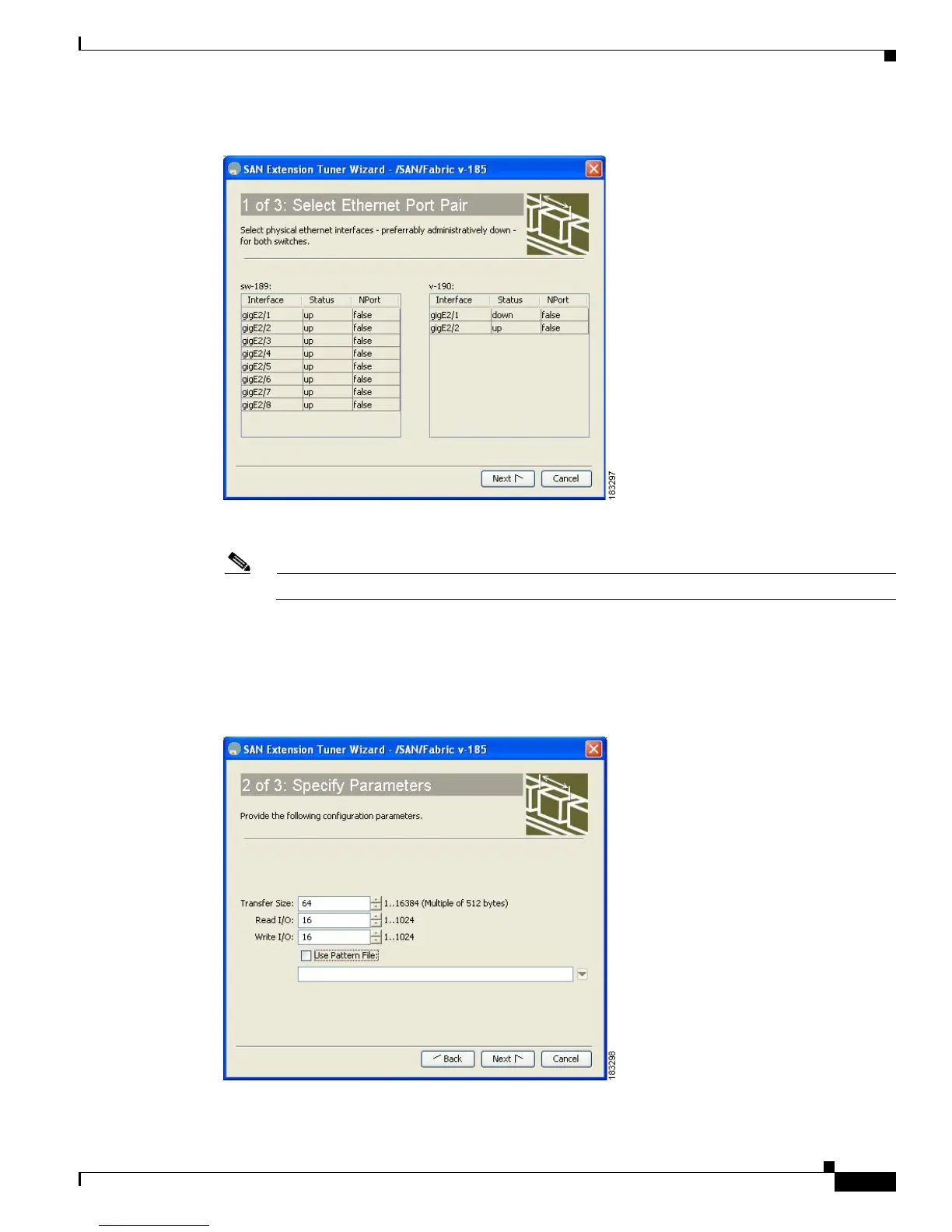

Figure 49-4 Select Ethernet Port Pair Dialog Box
Step 2
Select the Ethernet port pairs that correspond to the FCIP link you want to tune and click Next.
Note The Ethernet ports you select should be listed as down.
You see the Specify Parameters dialog box (see Figure 49-5).
Step 3 Create and activate a new zone to ensure that the virtual N ports are not visible to real initiators in the
SAN by clicking Ye s to the zone creation dialog box.
Figure 49-5 Specify Parameters Dialog Box
