Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 24 Configuring Trunking
Default Settings

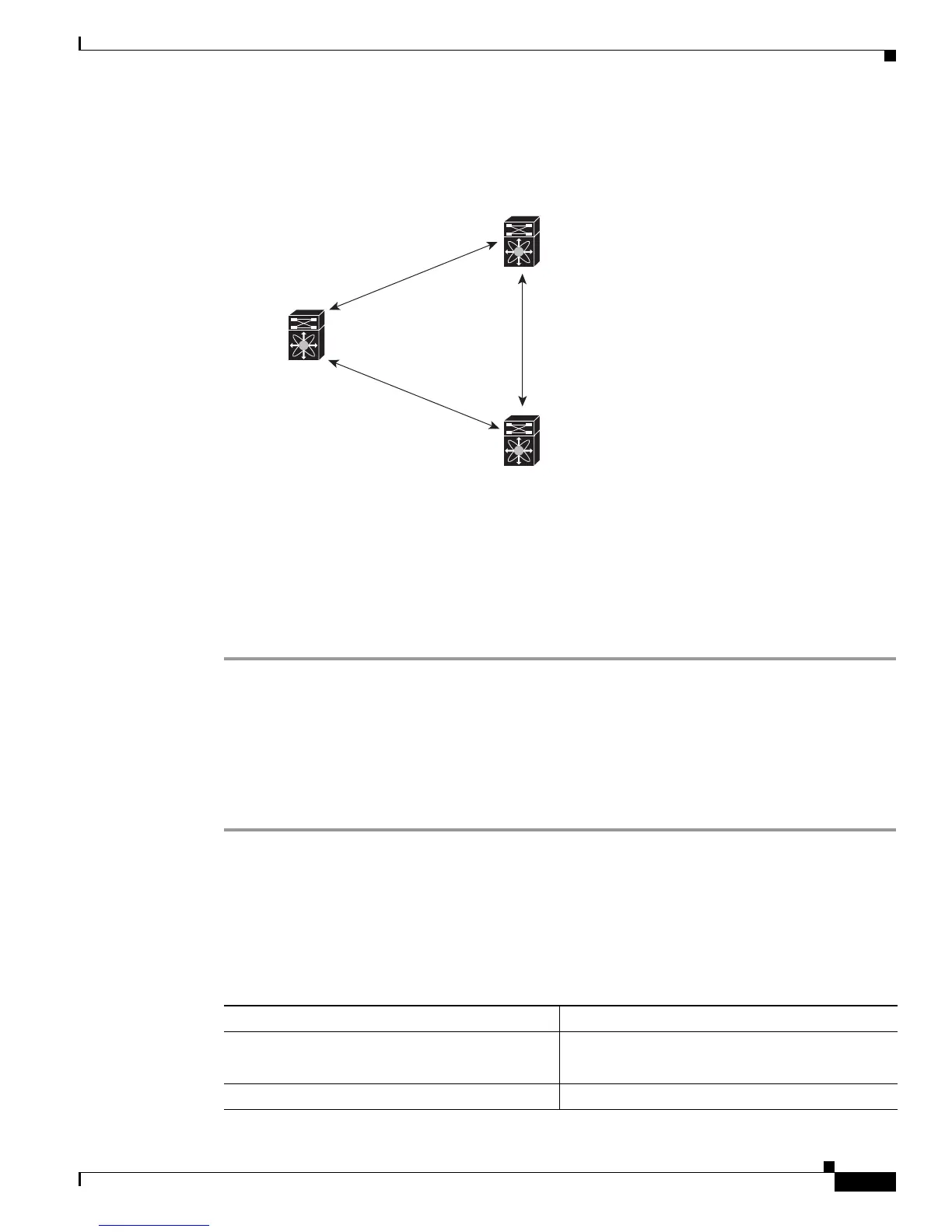

Figure 24-8 Operational and Allowed VSAN Configuration
Configuring an Allowed-Active List of VSANs
To configure an allowed-active list of VSANs for an interface using Fabric Manager, follow these steps:
Step 1 Expand Interfaces and then select FC Physical.
You see the interface configuration in the Information pane.
Step 2 Click the Trunk Config tab.
You see the current trunk configuration.
Step 3 Set Allowed VSANs to the list of allowed VSANs for each interface that you want to configure.
Step 4 Click Apply Changes to save these changes or click Undo Changes to discard any unsaved changes.
Default Settings
Table 24-4 lists the default settings for trunking parameters.
V
SANs 1 and 3 are on th
e
allowed
l
ist
.
VSANs 1 and 3 are operational.
V
SA
Ns
1
, 2, 5 are o
p
era
tion
al
.
V
SA
Ns
1,
2, 5 are o
n
the all
o
we
d
list.
VSANs 1 and 2 are operational.
VSANs 1 and 2 are on the allowed list.
Switch 3
VSAN1
VSAN2
VSAN4
VSAN5
Switch 1
VSAN1
VSAN2
VSAN3
VSAN4
VSAN5
Switch 2
VSAN1
VSAN2
VSAN3
79946
Table 24-4 Default Trunk Configuration Parameters
Parameters Default
Switch port trunk mode ON on non-NPV and MDS core switches.
OFF on NPV switches.
Allowed VSAN list 1 to 4093 user-defined VSAN IDs.
