Send documentation comments to mdsfeedback-doc@cisco.com
24-10
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 24 Configuring Trunking
Configuring Trunk Mode and VSAN List

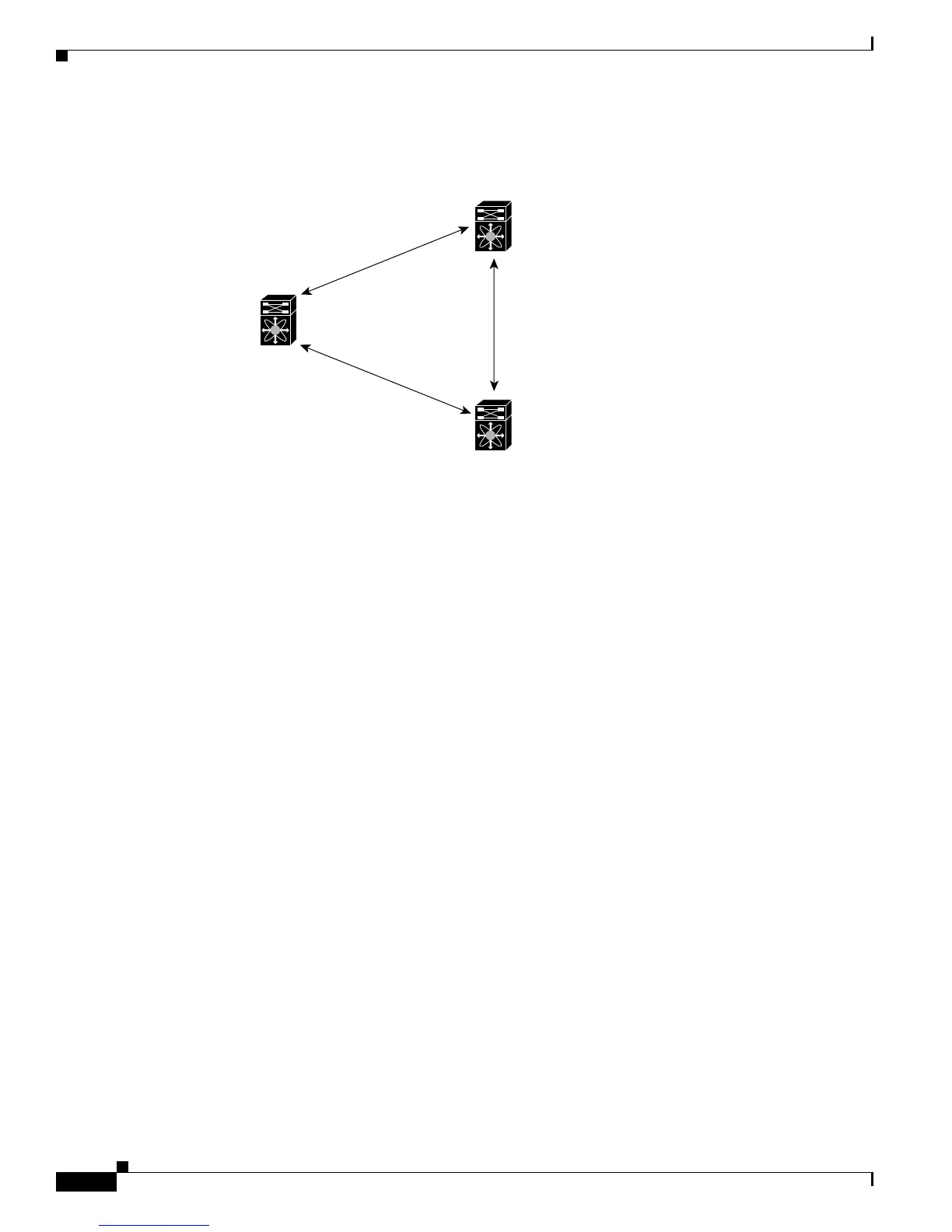

Figure 24-7 Default Allowed-Active VSAN Configuration
You can configure a select set of VSANs (from the allowed-active list) to control access to the VSANs
specified in a trunking ISL.
Using Figure 24-7 as an example, you can configure the list of allowed VSANs on a per-interface basis
(see Figure 24-8). For example, if VSANs 2 and 4 are removed from the allowed VSAN list of ISLs
connecting to switch 1, the operational allowed list of VSANs for each ISL would be as follows:
• The ISL between switch 1 and switch 2 includes VSAN 1 and VSAN 3.
• The ISL between switch 2 and switch 3 includes VSAN 1 and VSAN 2.
• The ISL between switch 3 and switch 1 includes VSAN 1, 2, and 5.
Consequently, VSAN 2 can only be routed from switch 1 through switch 3 to switch 2.
V
SANs1, 2, and 3 are o
perational.
VSANs 1, 2, 4,
5areoperationa
l.
VSANs 1 and 2 are operational.
Switch 3
VSAN1
VSAN2
VSAN4
VSAN5
Switch 1
VSAN1
VSAN2
VSAN3
VSAN4
VSAN5
Switch 2
VSAN1
VSAN2
VSAN3
79945
