Send documentation comments to mdsfeedback-doc@cisco.com
59-14
Cisco MDS 9000 Family Fabric Manager Configuration Guide
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 59 Configuring RMON
Create RMON Alarms in Fabric Manager

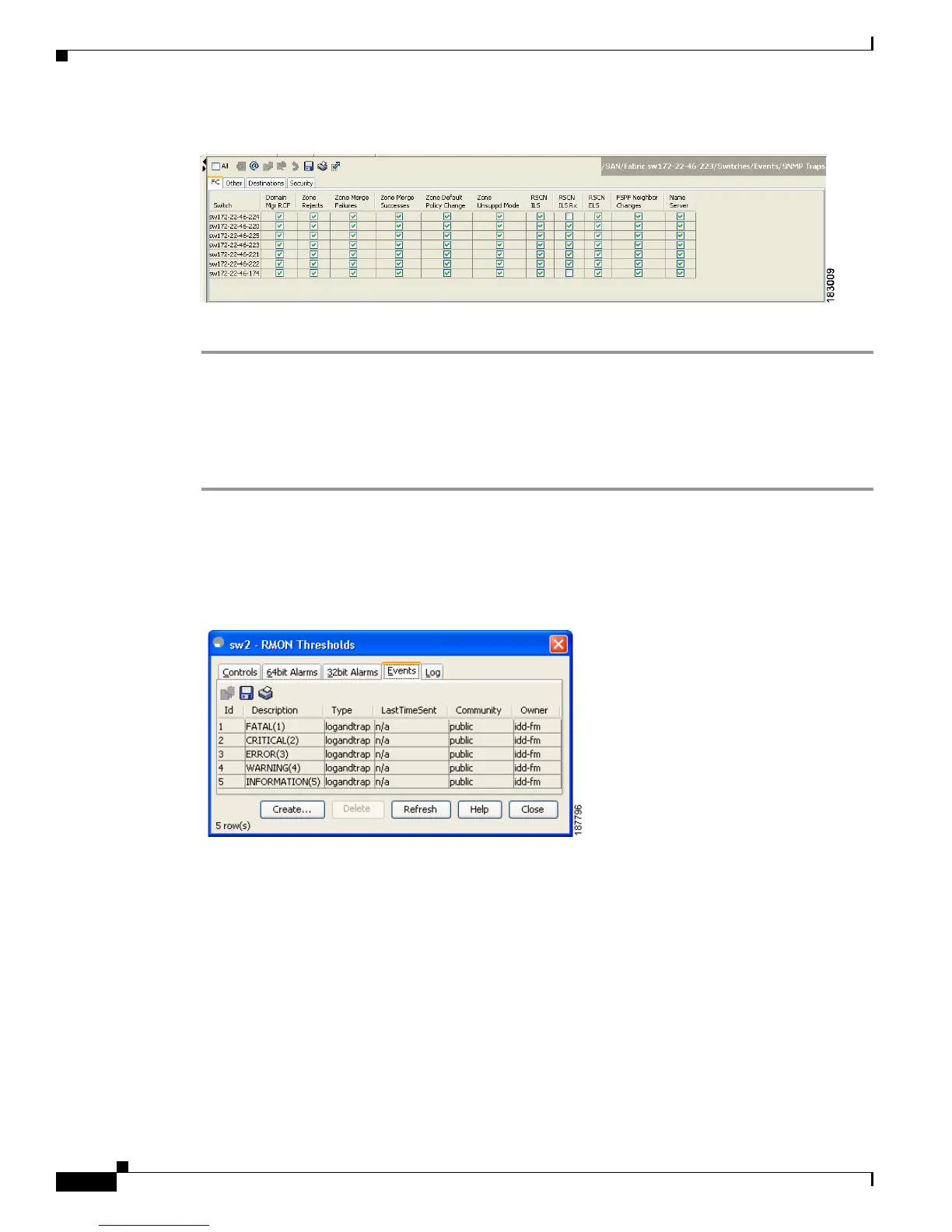

Figure 59-15 List of Threshold Alarms
Step 11 Close both pop-up windows.
Managing RMON Events
To define customized RMON events using Device Manager, follow these steps:
Step 1 Choose Admin > Events > Threshold Manager and click More in the Threshold Manager dialog box.
Step 2 Click the Events tab in the RMON Thresholds dialog box.
You see the RMON Thresholds Events tab as shown in Figure 59-16.
Figure 59-16 RMON Thresholds Events Tab
Step 3 Click Create to create an event entry.
You see the Create RMON Thresholds Events dialog box as shown in Figure 59-17.
