62-23

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 62 Configuring Call Home

Configuring EMC E-mail Home Delayed Traps

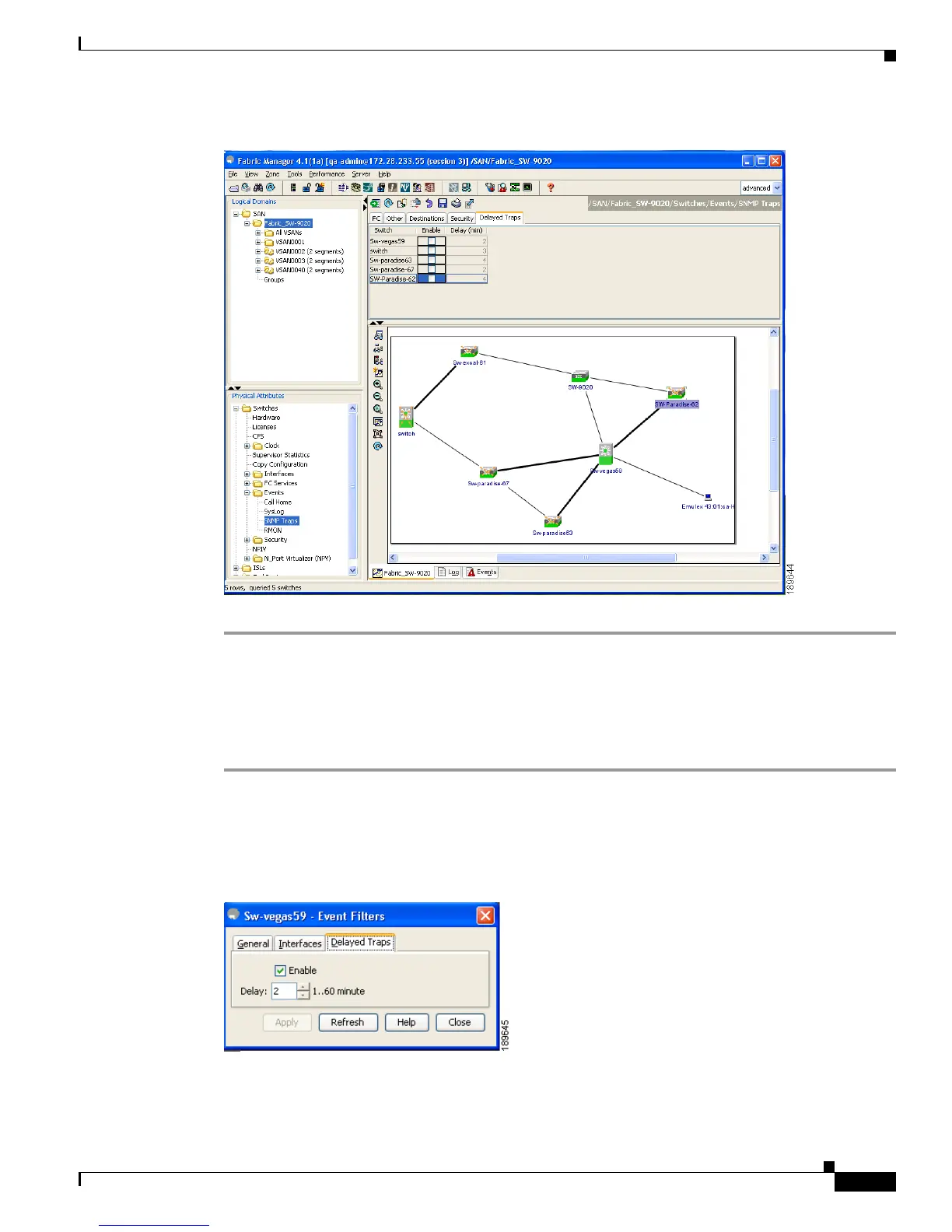

Figure 62-17 Delayed Trap Dialog Box

Step 2 Click Apply.

Enabling Delayed Traps Using Cisco Device Manager

To enable the delayed traps using Device Manager, follow these steps:

Step 1 In Device Manager choose Admin > Events > Filters > Delayed Traps

You can see the Events Filters information in the Information pane.

Step 2 Click the Delayed Traps tab.

Figure 62-18 Delayed Traps Dialog Box

Step 3 Check the Enable check box to enable delayed traps.

Delay interval will only be available when the feature is enabled.
