Chapter 30 Configuring and Managing Zones
Zone Configuration

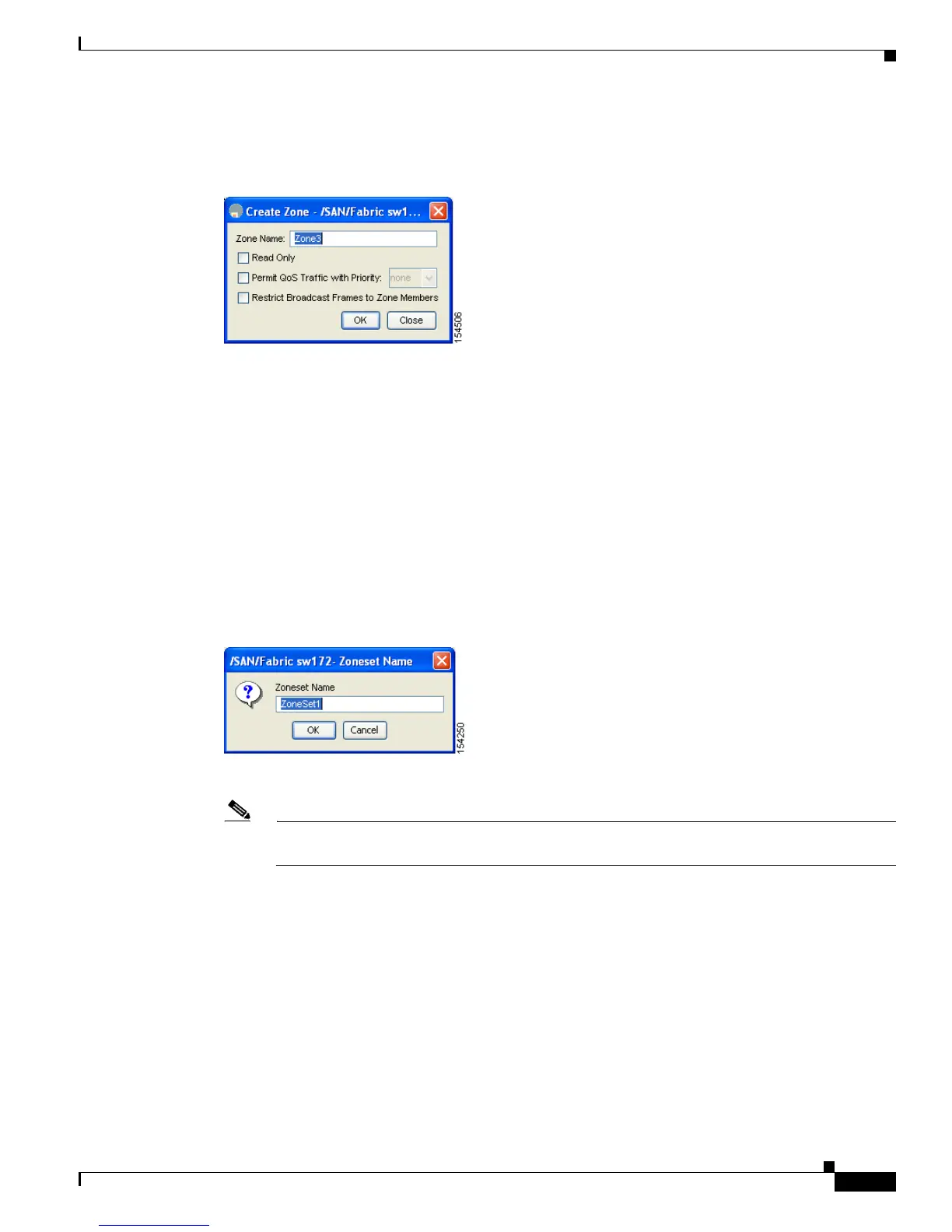

You see the Create Zone dialog box shown in Figure 30-10.
Figure 30-10 Create Zone Dialog Box
Step 4
Enter a zone name.
Step 5 Check one of the following check boxes:
a. Read Only—The zone permits read and denies write.
b. Permit QoS traffic with Priority—You set the priority from the drop-down menu.
c. Restrict Broadcast Frames to Zone Members
Step 6 Click OK to create the zone.
If you want to move this zone into an existing zone set, skip to Step 8.
Step 7 Click Zoneset in the left pane and click the Insert icon to create a zone set.
You see the Zoneset Name dialog box shown in Figure 30-11.
Figure 30-11 Zoneset Name Dialog Box
Step 8
Enter a zone set name and click OK.
Note One of these symbols ($, -, ^, _) or all alphanumeric characters are supported. In interop mode
2 and 3, this symbol (_) or all alphanumeric characters are supported.
Step 9 Select the zone set where you want to add a zone and click the Insert icon or you can drag and drop
Zone3 over Zoneset1.
You see the Select Zone dialog box shown in Figure 30-12.
