48-10

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 48 Configuring FCIP

Using the FCIP Wizard

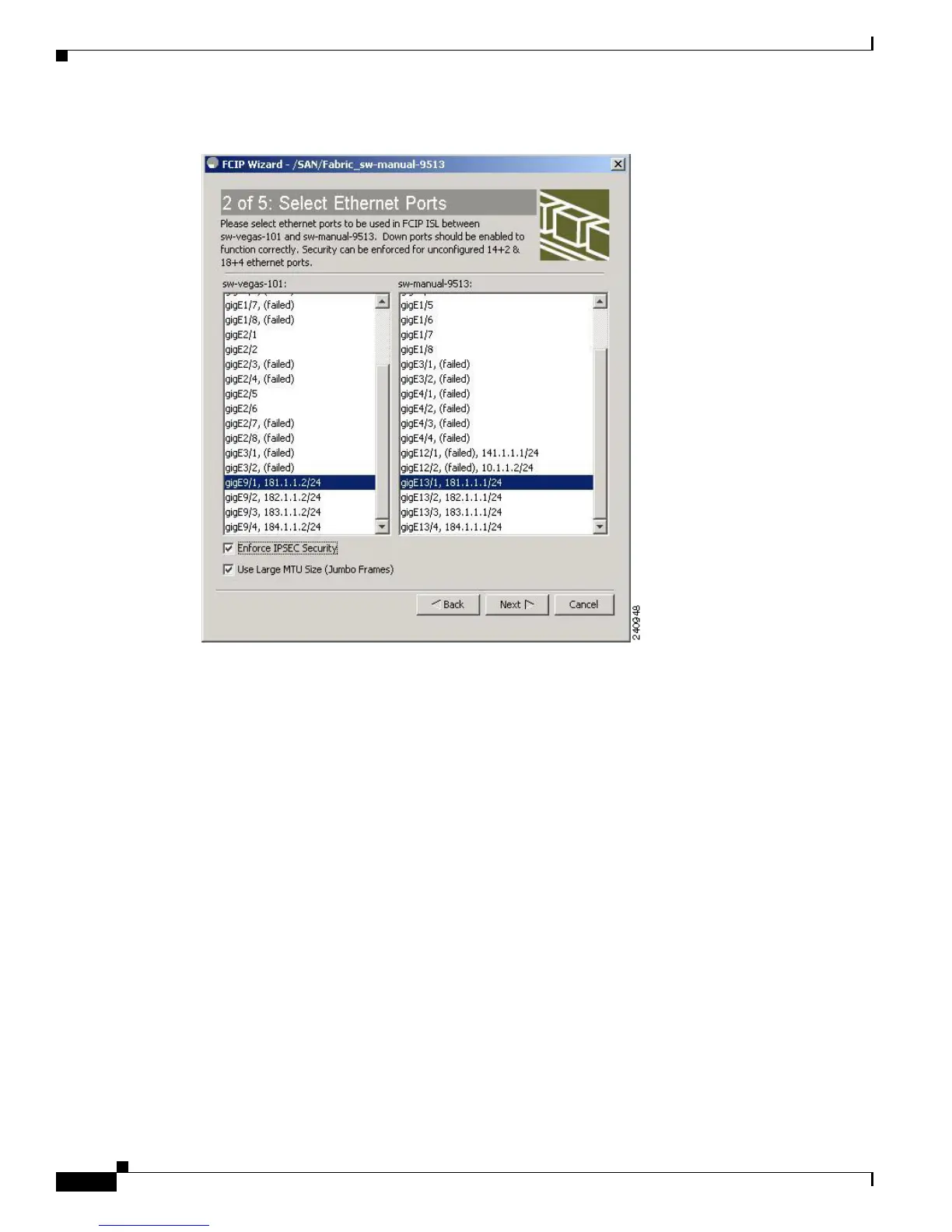

Figure 48-11 Enabling IPsec on an FCIP link

Step 5 Click Next. You see the IP Address/Route input screen.

Step 6 Select Add IP Route, if you want to add an IP route, otherwise leave the defaults. See Figure 48-12.
