Send documentation comments to mdsfeedback-doc@cisco.com

48-12

Cisco MDS 9000 Family Fabric Manager Configuration Guide

OL-17256-03, Cisco MDS NX-OS Release 4.x

Chapter 48 Configuring FCIP

Using the FCIP Wizard

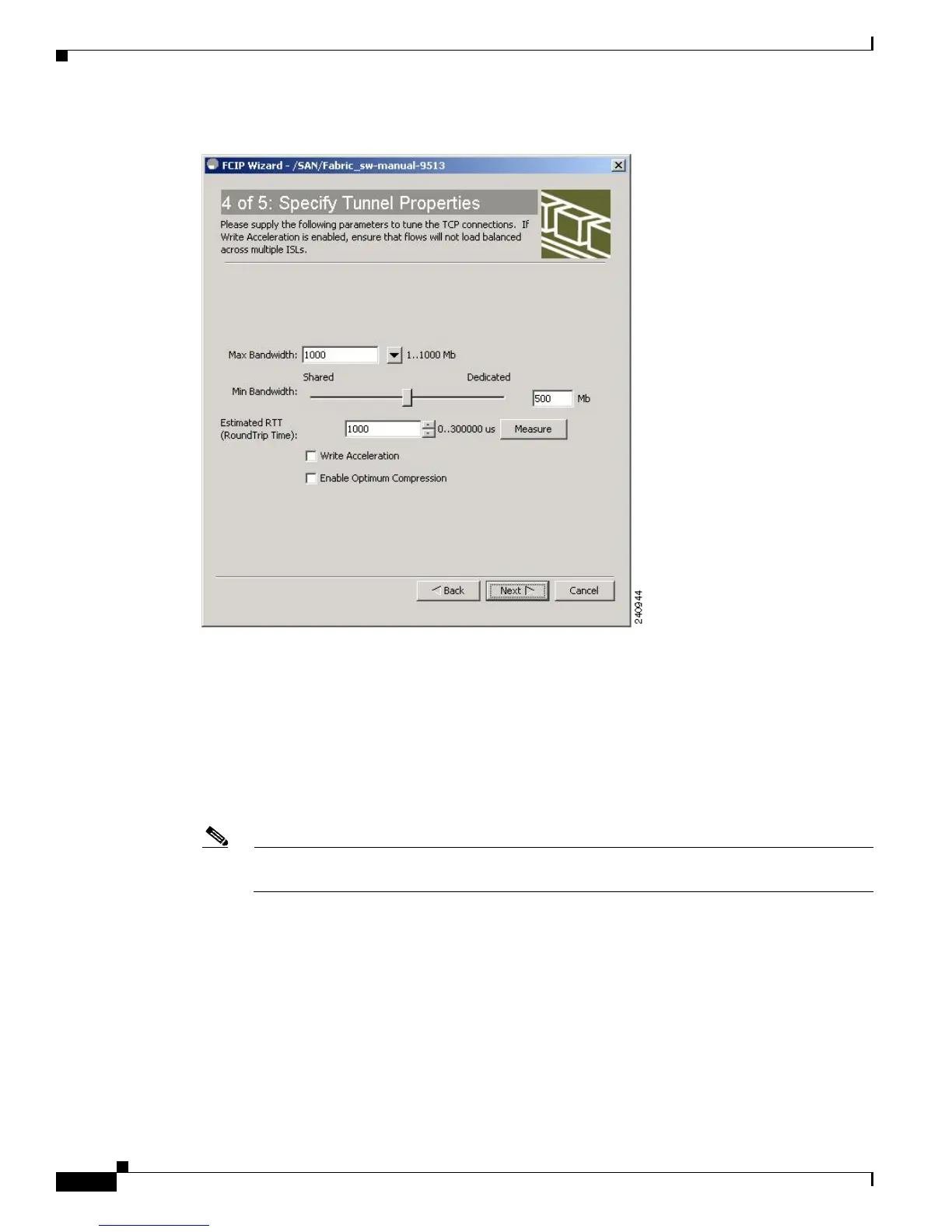

Figure 48-13 Specifying Tunnel Properties

Step 9 Check the Write Acceleration check box to enable FCIP write acceleration on this FCIP link.

See the “FCIP Write Acceleration” section on page 48-29.

Step 10 Check the Enable Optimum Compression check box to enable IP compression on this FCIP link.

See the “FCIP Compression” section on page 48-37.

Step 11 Click Next.

Step 12 Set the Port VSAN and click the Trunk Mode radio button for this FCIP link, (see Figure 48-14).

Note If FICON is enabled/FICON VSAN is present on both the switches, the Figure 48-26 is

displayed, otherwise Figure 48-25 is displayed.
