Chapter 50 Configuring iSCSI
Configuring iSCSI
Figure 50-15 Mapping LUNs to an iSCSI Node Name
iscsi virtual-target name iqn.1987-02.com.cisco.target-1
pWWN 28:00:01:02:03:04:05:06 fc-lun 0 iscsi-lun 0
iscsi virtual-target name iqn.1987-02.com.cisco.target-2
pWWN 28:00:01:02:03:04:05:06 fc-lun 1 iscsi-lun 0
iscsi virtual-target name iqn.1987-02.com.cisco.target-3
pWWN 28:00:01:02:03:04:05:06 fc-lun 2 iscsi-lun 0
Example 3
This example maps three subsets of Fibre Channel LUN targets to three iSCSI virtual targets. Two iSCSI
targets have one LUN and the third iSCSI target has two LUNs (see
Figure 50-16).

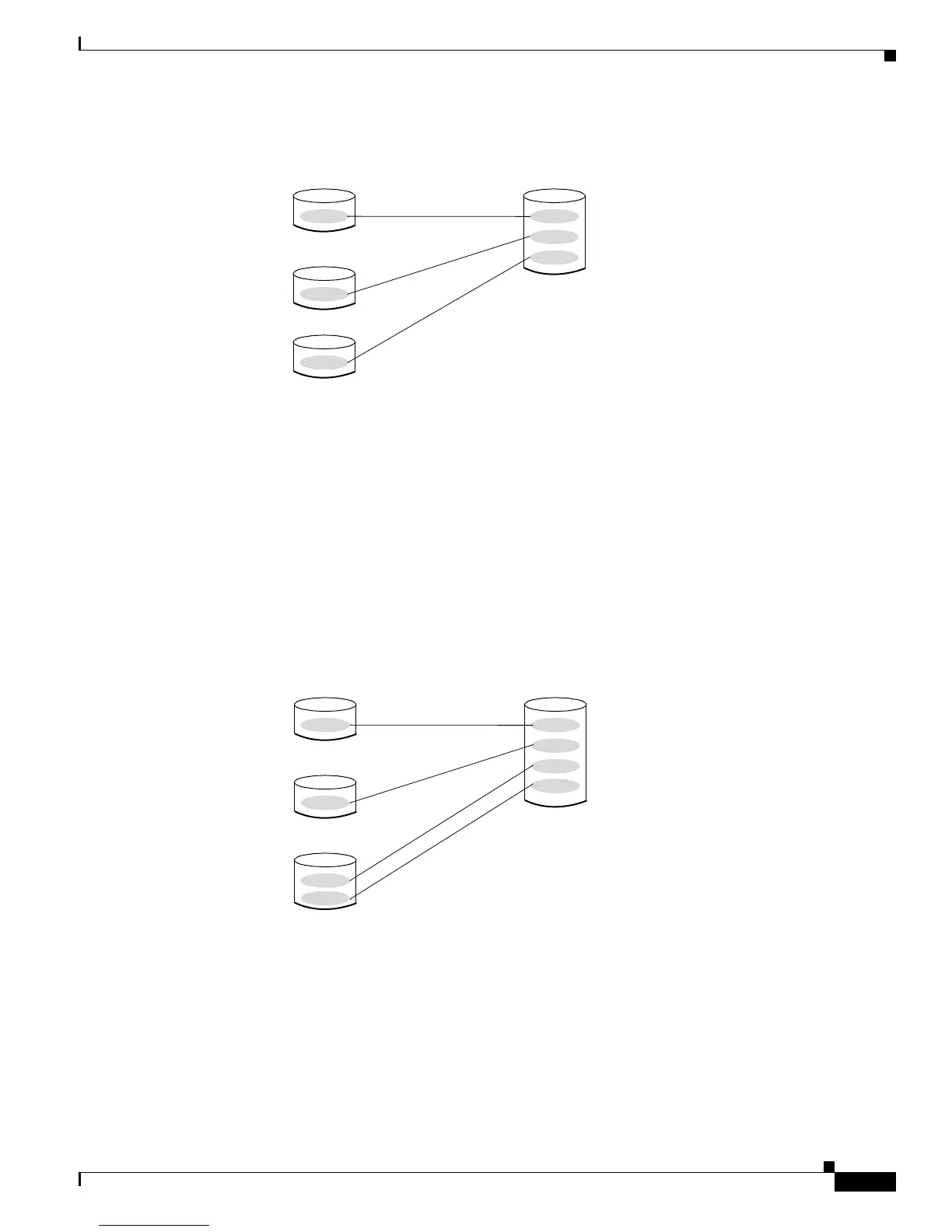

Figure 50-16 Mapping LUNs to Multiple iSCSI Node Names
iscsi virtual-target name iqn.1987-02.com.cisco.target-1
pWWN 28:00:01:02:03:04:05:06 fc-lun 0 iscsi-lun 0
iscsi virtual-target name iqn.1987-02.com.cisco.target-2
pWWN 28:00:01:02:03:04:05:06 fc-lun 1 iscsi-lun 0
iscsi virtual-target name iqn.1987-02.com.cisco.target-3
pWWN 28:00:01:02:03:04:05:06 fc-lun 2 iscsi-lun 0
pWWN 28:00:01:02:03:04:05:06 fc-lun 3 iscsi-lun 1
0
iSCSI view of storage device
iqn.1987-02.com.cisco.target-1
0
0
0
1
2
Fibre Channel storage
device
pWWN 28:00:01:02:03:04:05:06
112190
iqn.1987-02.com.cisco.target-2
iqn.1987-02.com.cisco.target-3
0
iSCSI view of storage device
iqn.1987-02.com.cisco.target-1
0
0
1
0
1
2
3
Fibre Channel storage device
pWWN 28:00:01:02:03:04:05:06
iqn.1987-02.com.cisco.target-2
iqn.1987-02.com.cisco.target-3
112191
